Scott Ransom 20
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

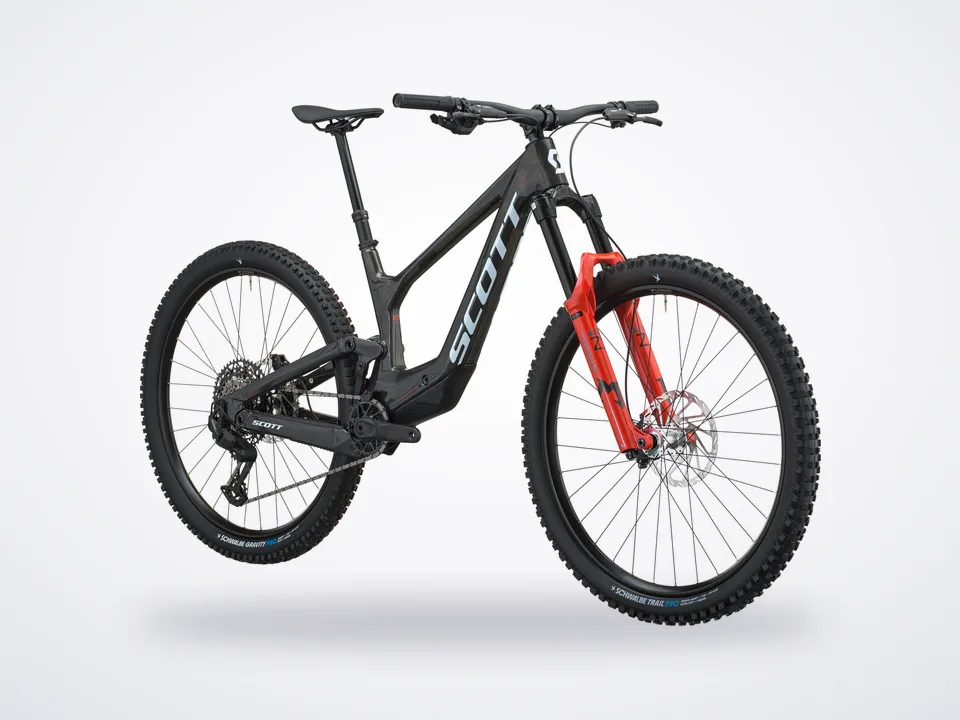

Introducing the Scott Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.
Please note that bike specifications are subject to change without prior notice.
What's New
- What's New
- Syncros DH1.5 Alloy Cockpit
Show full description and specs
Frame and Suspension
- Frame: Ransom Carbon HMF Mainframe, alloy 6061 Rear End, 6 Link kinematic, Integrated Suspension Technology, head angle Adj, BB92, UDH interface, 12x148mm with 55mm chainline, MX ready
- Travel
- Front travel: 170 mm / Rear travel: 170 mm
- Fork
- Marzocchi Z1, Rail 3 , Comp-Reb adj., 15x110mm, 44mm offset, tapered steerer
- Rear Shock: Marzocchi Bomber Air, Scott Ransom Custom Tuned, Comp-Reb adjust, 20x8mm Hardware, T205x65mm
Drivetrain: • Rear Derailleur: SRAM Eagle 70 Transmission, 12 Speed, • Shifters: SRAM Eagle 70 Trigger, • Crankset: SRAM Eagle 70 Transmission, DUB, 55mm CL, 32T, • Chainguide: Scott custom
- BB-Set
- SRAM DUB PF 92 MTB, shell 41x92mm
- Chain
- SRAM Eagle 70 Transmission
- Cassette
- SRAM Eagle XS-1270 Transmission, 10-52T
Brake System
- Brakes
- SRAM DB8 4-Piston
- Front Disc Rotor
- SRAM G2CS 6B, 200mm
- Rear Disc Rotor
- SRAM G2CS 6B, 200mm
Cockpit and Seating
- Grips
- Syncros Performance AM Lock-On
- Handlebar
- Syncros Hixon DH35 1.5
- H'stem
- Syncros CNC ST-M400-AL2 35mm
- Seatpost
- Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
- Seat
- Syncros Tofino R 2.0, CrMo Rails
- Headset: Syncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Wheels and Tires
- Front Hub
- Formula DC-611, 15x110mm
- Rear Hub
- Formula DC-3248, 148x12mm, 4 sealed bearings
- Spokes
- Stainless Black
- Front Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front Tire
- Schwalbe Magic Mary 29x2.5", Trail PRO, Radial, Ultra Soft, TLR, Foldable Bead
- Rear Tire: Schwalbe Albert 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready, 120TPI Foldable Bead
Weight: • Approx weight in KG: 16.57 Tubeless, without save the day kit, • Approx weight in LBS: 36.53 Tubeless, without save the day kit, • Max. System Weight: 130kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
