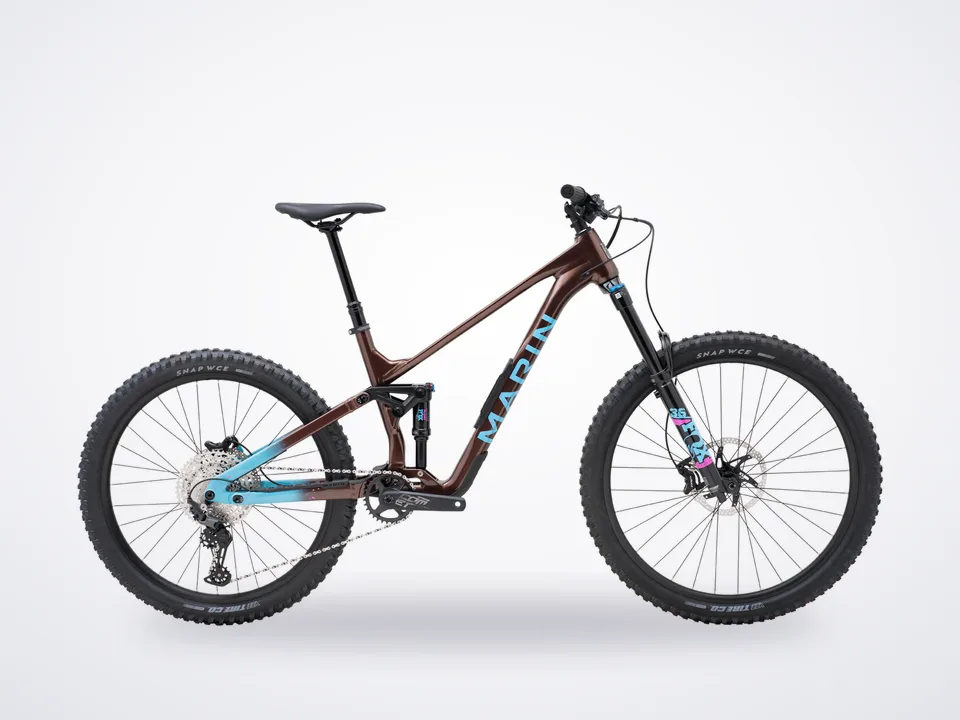

Marin Alpine Trail 1
In stock at 3 shops in Edinburgh and Dublin
Prices and stock checked Oct 22.
Where to buy
3 shopsIn the UK
In Ireland
About this bike
The Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
Show full description and specs
While the Alpine Trail 1 is the starting point in the three-model lineup, we didn’t make any concessions regarding the spec. High-performance Fox suspension keeps you in control, while a Shimano Deore 12-speed drivetrain transmits your power to the wheel. TRP’s Slate Evo 4-piston brakes feature 203mm rotors, keeping all that speed in check in a powerful, fade-free manner.
Specifications
- Frame
All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
- Front Suspension
Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset
- Rear Suspension
Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune
- Rim
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
- Hub Rear
Shimano HB-TC500, 148x12mm, Micro Spline Freehub Body
- Hub Front
Shimano FH-TC500, 110x15mm
- Spokes
14g Black Stainless Steel
- Tires
Vee Tire Co. Snap WCE, 29x2.6" Front 27.5x2.6" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible
- Derailleur Rear
Shimano Deore, 12-Speed, SGS
- Derailleur Front
- •
Shimano Deore, 12-Speed, SL-6100-IR
- Crankset
FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
- Bottom Bracket
FSA MegaExo 73mm BSA
- Chain
KMC X-12 Silver and Black
- Cassette
Shimano, Deore M6100 12-Speed, 10-51T
- Brakes Front
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
- Brakes Rear
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
- Brake Levers
TRP Slate EVO Hydraulic, I-Spec EV Compatible
- Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
- Stem
Marin 3D Forged Alloy, 35mm
- Grips
Marin Grizzly Lock-On
- Headset
FSA Custom, Adjustable HTA Design
- Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
- Saddle
Marin Speed Concept
- Pedals
- •
Extras
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
- Extras
Downtube Storage Bag
