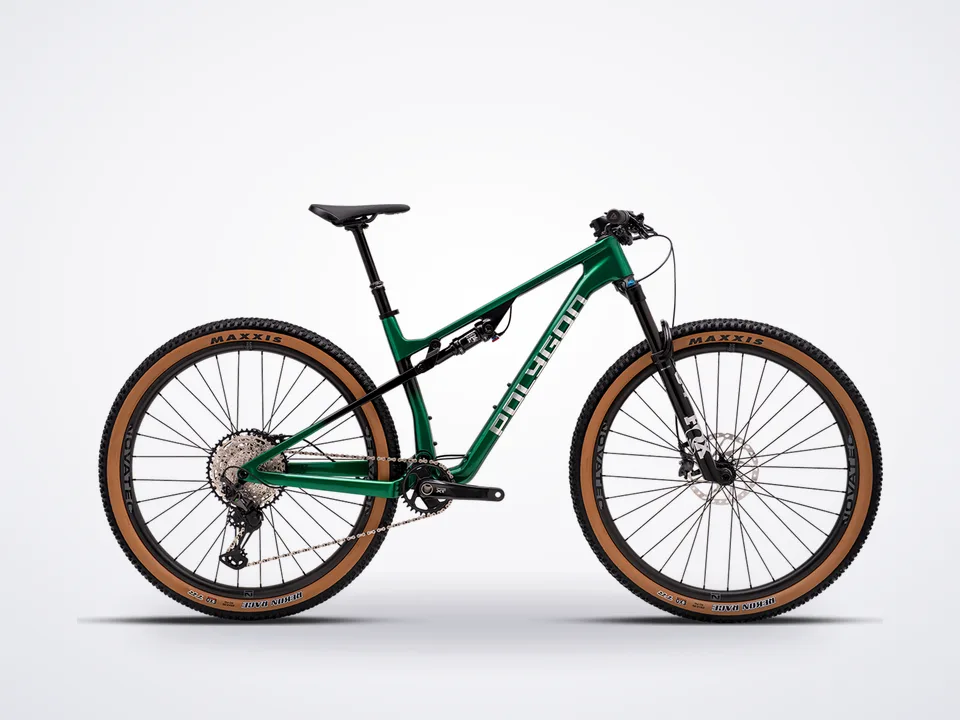

Polygon Syncline DR8 Carbon Full Suspension MTB
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
XC, Reimagined.
- The new generation of Syncline
- An XC, with full-sus control.
Cross-country racing isn’t what it used to be—and neither is the Syncline. The new Syncline DR takes everything we’ve learned from years of UCI racing and builds it into a carbon full- suspension machine made for the speed, precision, and intensity of modern XC. It’s your edge. For race day. For every day. For the chase.
Show full description and specs
Fast But Composed
With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control — staying smooth through roots, planted in rock gardens, and precise in switchbacks.
No Watt Wasted
Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis and a threaded BSA73 bottom bracket for maximum stiffness and easy service.
Locked in Precision
Sleek internal routing keeps things quiet, while a 12x148mm Boost thru-axle and UDH hanger deliver rock-solid drivetrain stability when you’re battling for position and precise shifting under pressure.
Traction Wherever You Need It
From rocky climbs to muddy sprints, with 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control.
Geometry Made For Modern XC
With modern geometry and a 4-bar flex-stay suspension platform, the Syncline DR is built to take on today’s increasingly demanding XC courses.
Specifications
- Frame
- ACX XC 110mm Travel
- Fork
- FOX 34 SL Performance Series 120mm Travel
- Rear Shock
- FOX Float SL Performance Elite Series, E2E: 165x40mm
- Headset
- FSA NO.69/59/Srs/Dual, IS 52/28.6 | IS 52/40
- Stem
- Polygon Expert, E: 70mm, BB: 31.8m, R/D: -17degree
- Handlebars
- Polygon Expert, W: 760mm, BB: 31.8mm, R/D: 5mm, B: 9degree
- Wheels
- Novatec M30 Carbon
- Rims
- Carbon W: 30mm 622-29 32H FOR TYRE 622-54/76 TL Ready
Spokes: F: Stainless NDS:290 DS:293 W/ 12mm Brass Nipple / R: Stainless NDS:291 DS:289 W/ 12mm Brass Nipple
- Hubs
- F: Novatec Boost 15x110mm 32H CL / R: Novatec 12x148mm 32H CL FOR Micro Spline
- Tyres
- Maxxis Rekon RACE 29"x2.35"
- Shifter
- Shimano XT M8100, 1x12 Speed
- Rear Derailleur
- Shimano XT M8100-Sgs
- Crankset
- Shimano Deore XT M8200, 32T
- Cassette
- Shimano SLX M7100, 10-51T
- Chain
- KMC X-12
- Bottom Bracket
- Shimano MT801 BSA Threaded
- Brakes
- Shimano Deore XT M8200
- Rotors
- Shimano RT64, R:160mm / F:180mm
- Seatpost
- Tranz-X JD-YSP23J 125mm Travel, DxL: 31.6x412mm
- Saddle
- Fizik Terra ARGO X7, CR-MO ø 7mm
- Pedal
- Alloy Flat W/ Replaceable Pin
Geometry
