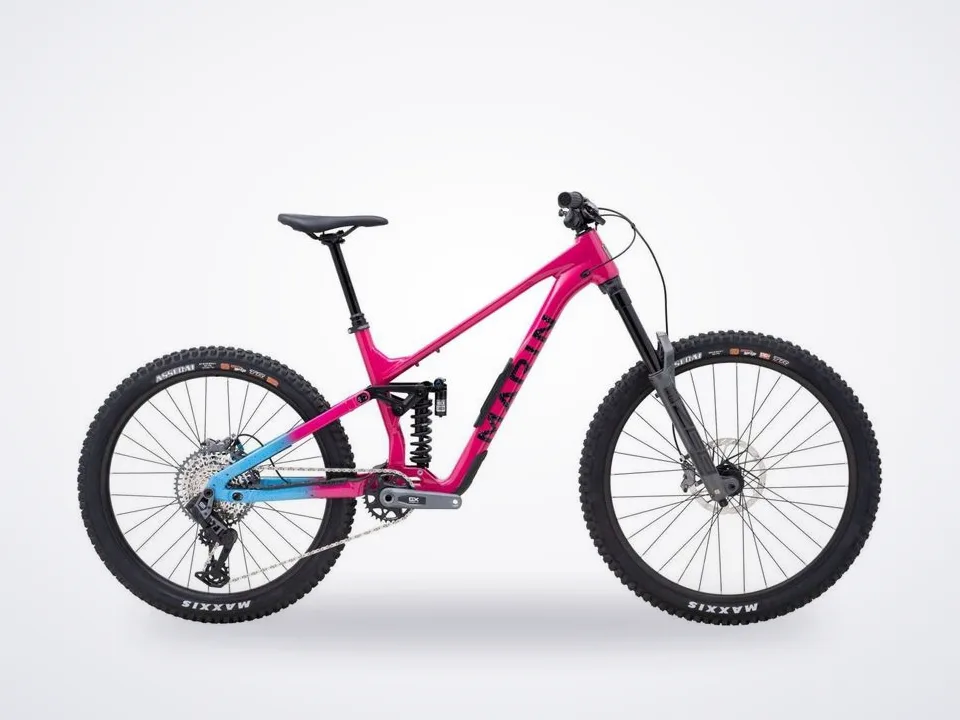

Marin Alpine Trail XR AXS Full Suspension MTB
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
Show full description and specs
"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with Sram's GX Eagle AXS wireless 12-speed drivetrain. Sram's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.
Specifications
Frame: All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
- Fork
- RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
Shock: RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, S/M = 350 lbs, L/XL = 450 lbs
- Headset
- FSA Custom Headset, Adjustable Headtube angle Design
- Stem
- Marin CNC, 35mm Length, 35mm Bar Bore
Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- Grips
- Marin Grizzly Lock-On
Rims: Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
- Spokes
- 14g Black Stainless Steel
Tyres: Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible
- Shifter
- SRAM AXS Pod Mmx
- Rear Derailleur
- Sram GX AXS T-TYPE
- Crankset
- SRAM GX Eagle, 32T, 55MM CL, 170MM Length
- Cassette
- SRAM GX 1275 T-Type 10-52T
- Chain
- SRAM GX Eagle T-Type
- Bottom Bracket
- SRAM Dub MTB 73
- Front Brake
- SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 180mm Rotor
- Rear Brake
- SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 180mm Rotor
- Brake Levers
- SRAM Code Bronze Hydraulic Disc
Seatpost: TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
- Saddle
- Marin Speed Concept
- Pedals
- -
- Extras
- Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
Adjustable Geometry
With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate…
