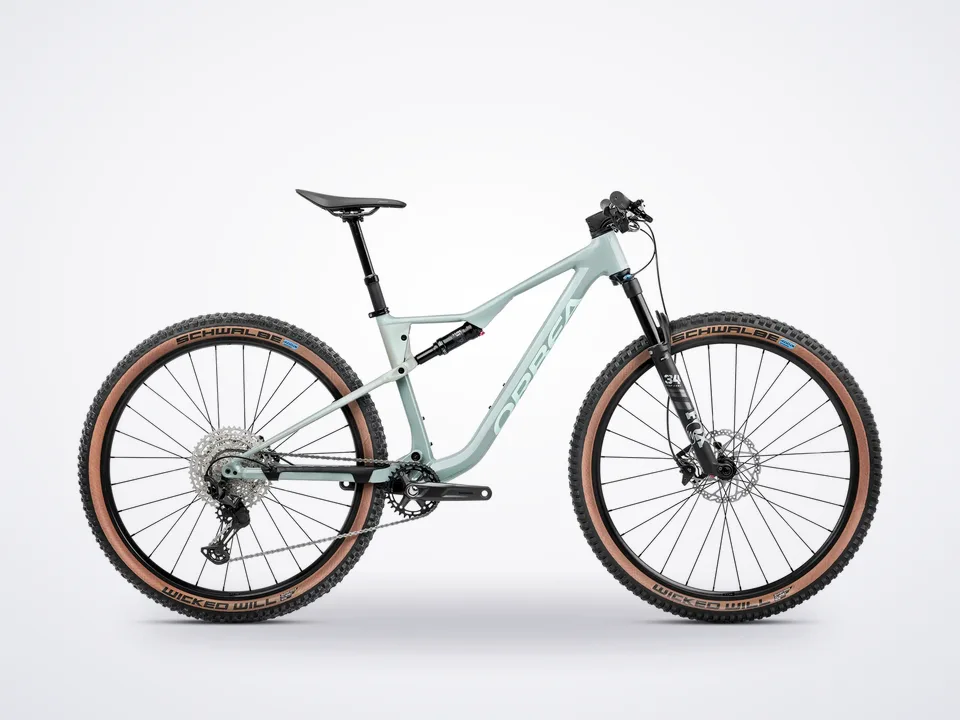

Orbea Oiz H10
In stock at 2 shops in Boston and Los Angeles
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The 2027 Orbea Oiz H10 is a full-suspension cross-country race bike with 120mm of travel front and rear, built on Orbea's lightweight Oiz aluminum frame and upgraded with a Fox 34 fork and a Shimano XT rear derailleur. It's a fast, efficient, race-ready XC bike that climbs hard and descends with control.
Show full description and specs
Lightweight Oiz Aluminum Frame, 120mm Travel
Orbea's Oiz Hydro alloy frame uses an alloy link, Boost spacing, and Orbea's SIC internal routing with an integrated I-Line shock layout. With 120mm of rear travel and modern race geometry, the Oiz H10 stays quick on the climbs and composed when the trail points down.
Fox 34 Fork + Remote Lockout
A Fox 34 Float SL Performance 120mm fork and Fox Float SL Performance shock are tuned for cross-country efficiency, with a remote push-to-lock so you can firm up the suspension for climbing and sprinting on the fly.
Shimano XT Shifting
A Shimano XT M8200 rear derailleur runs crisp, wide-range 12-speed shifting, paired with Shimano MT410 hydraulic disc brakes and a dropper post. A confident, well-rounded XC race build ready to ride out of the shop.
- Available in two colorways
- Blue and Black - in sizes S-XL.
Key Features
- Orbea Oiz Hydro aluminum full-suspension XC frame, Boost
- 120mm travel front and rear
- Fox 34 Float SL Performance 120mm fork, remote lockout
- Fox Float SL Performance shock, remote push-lock
- Shimano XT M8200 12-speed rear derailleur
- Shimano MT410 hydraulic disc brakes
- Dropper post included
- 29" wheels, tubeless ready, sizes S-XL
Build Kit
- Frame
- Orbea Oiz Hydro Aluminum, alloy link, Boost, 120mm travel
- Fork
- Fox 34 Float SL Performance 120mm, Grip, remote push-to-lock, QR15x110
- Shock
- Fox Float SL Performance 120mm, remote push-lock, 190x45mm
- Headset
- Alloy 1-1/2"
- Stem
- Alloy 3D forged, 35mm, -7deg
- Handlebar
- Alloy, 35mm, Rise 12mm, 780mm
- Brakes
- Shimano MT410 Hydraulic Disc
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Shifter
- Shimano Deore M6200
- Cassette
- Shimano 10-51t 12-Speed
- Crankset
- Shimano MT, 32t
- Wheels
- Alloy, 26c, 28H, Tubeless Ready
- Seatpost
- Dropper post
- Saddle
- Fizik Vento Argo X5 140mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-170 cm (4'11"-5'7")
- M: 160-180 cm (5'3"-5'11")
- L: 170-190 cm (5'7"-6'3")
- XL
- 180-200 cm (5'11"-6'7")
Frequently Asked
- How does the Oiz H10 compare to the H30? The H10 upgrades to a Fox 34 fork, a Shimano XT M8200 rear derailleur, and stronger MT410 brakes versus the H30's RockShox Reba fork and Deore drivetrain.
- Is it full suspension? Yes - 120mm of travel front and rear.
- Is the frame aluminum or carbon? The H10 uses Orbea's Oiz Hydro aluminum frame. The Oiz M-series steps up to carbon.
- Does it have a dropper post? Yes - a dropper post is included.
- What's new for 2027? Updated Oiz platform with a Fox 34 fork, Shimano XT 12-speed spec, and new 2027 colorways.
