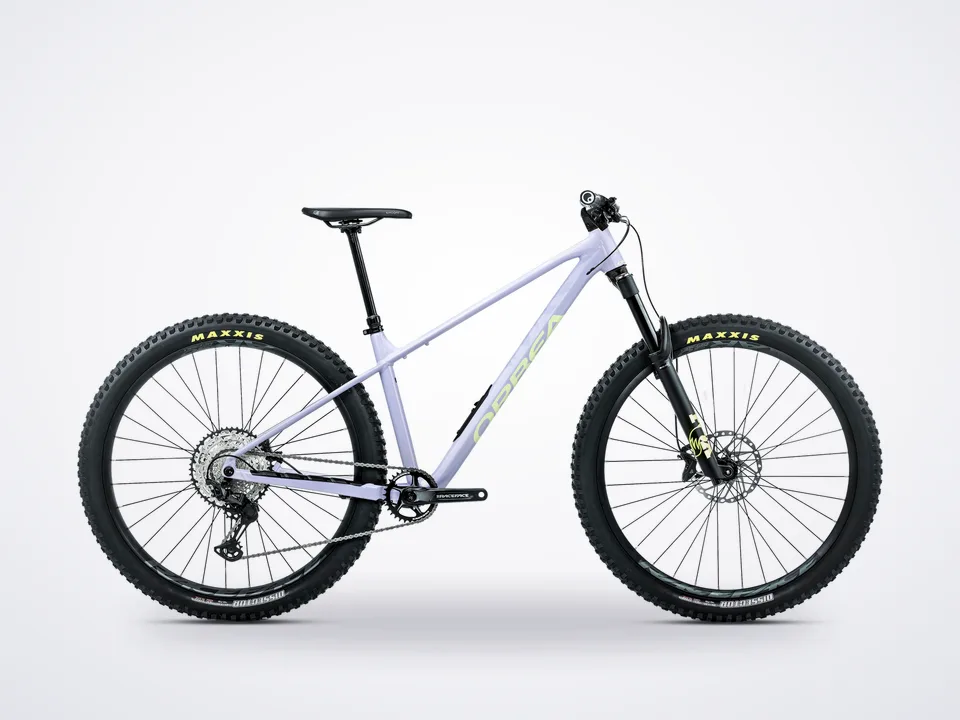

Orbea Laufey H-LTD
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Laufey H-LTD is the top of the alloy Laufey range - an aggressive trail hardtail built with a premium Fox 36 chassis and Shimano XT 12-speed shifting for riders who want hardtail simplicity with no compromise on capability. A 140mm Fox 36 fork, dropper post, lightweight Race Face wheels, and modern trail geometry make it a confident, hard-charging singletrack weapon that climbs efficiently and descends like a much bigger bike.
Show full description and specs
Aggressive Alloy Trail Hardtail Frame
Orbea's Laufey Hydro triple-butted alloy frame uses Boost 12x148 spacing, ISCG05 mounts, and trail-tuned geometry that's slacker and more confident than a cross-country hardtail. It's a forgiving, low-maintenance platform that's happy on technical singletrack and everything in between.
Fox 36 Chassis + Race Face Wheels
A burly 140mm Fox 36 Float SL fork brings big-bike steering precision and control to the front end, while lightweight Race Face AR tubeless-ready wheels and a Race Face Aeffect crank sharpen the whole package. Grippy Maxxis Dissector 2.40" tires keep it planted when you push hard.
Shimano XT 12-Speed Drivetrain + Dropper
A Shimano XT M8200 rear derailleur and shifter deliver the brand's crispest, most precise mechanical shifting across a wide 10-51t range, and Shimano MT620 hydraulic disc brakes add serious stopping power. A dropper seatpost lets you get low and move the bike beneath you on steep descents.
- Available in three colorways
- Lavender - Gum, Silver, and Cinnamon - Black - in sizes S-XL.
Key Features
- Orbea Laufey Hydro triple-butted alloy trail frame, Boost 12x148, ISCG05
- Fox 36 Float SL 140mm fork
- Dropper seatpost with Shimano I-Spec remote
- Shimano XT M8200 12-speed drivetrain
- Shimano 10-51t 12-speed cassette
- Shimano MT620 hydraulic disc brakes
- Race Face AR tubeless-ready wheels, Race Face Aeffect crank
- Maxxis Dissector 2.40" tires, sizes S-XL
Build Kit
- Frame
- Orbea Laufey Hydro Triple Butted, 29", Boost 12x148, ISCG05
- Fork
- Fox 36 Float SL Performance 140mm, Grip 3-Pos, 15x110
- Headset
- Acros Alloy 1-1/8 - 1-1/2" Integrated
- Stem
- OC Mountain Control MC20, 0deg
- Handlebar
- OC Mountain Control MC20 Alu SL, Rise 20, 800mm
- Brakes
- Shimano MT620 Hydraulic Disc
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Shifter
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M7100
- Crankset
- Race Face Aeffect, 32t
- Wheels
- Race Face AR 30c, Tubeless Ready
- Tires
- Maxxis Dissector 2.40" 60TPI Exo TR
- Seatpost
- Dropper post with Shimano SL-MT500 I-Spec EV remote
- Saddle
- Fizik Terra Ridon X5 145mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-165 cm (4'11"-5'5")
- M: 165-177 cm (5'5"-5'10")
- L: 177-188 cm (5'10"-6'2")
- XL
- 186-198 cm (6'1"-6'6")
Frequently Asked
- Is the Laufey a trail bike or an XC bike? It's a trail hardtail - a 140mm fork, dropper post, and slacker geometry make it more capable and playful on descents than a cross-country hardtail like…
