Orbea OIZ M30
In stock at 2 shops in Los Angeles and Boston
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike

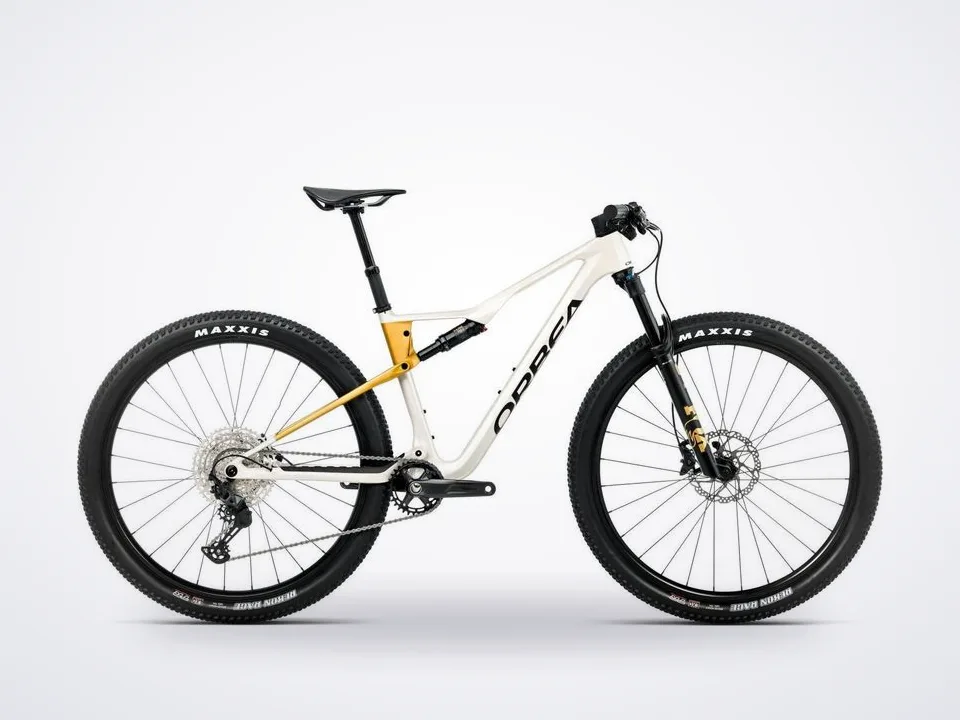

The 2027 Orbea Oiz M30 is a carbon full-suspension cross-country race bike with 120mm of travel front and rear, built on Orbea's lightweight Oiz Carbon OMR frame. RockShox SID suspension and a Shimano 12-speed drivetrain make it a fast, efficient climber that descends with confidence - the accessible entry into the carbon Oiz.
Orbea Oiz Carbon OMR Frame, 120mm Travel
The Oiz Carbon OMR frame uses Orbea's Fiberlink design, Boost spacing, SIC internal routing, and an integrated I-Line shock layout for a light, stiff, efficient full-suspension XC platform with 120mm of rear travel.
Show full description and specs
RockShox SID Suspension
A RockShox SID Select 120mm fork and SID Luxe Select+ shock deliver genuine XC-race suspension performance, both with 3-position adjust so you can firm things up for efficient climbing.
Shimano 12-Speed Build
A Shimano SLX M7200 rear derailleur with Deore I-Spec shifting runs a 10-51t 12-speed cassette, paired with Shimano MT600 hydraulic disc brakes and fast-rolling Maxxis Rekon Race tires. Ready to race out of the shop.
- Available in three colorways
- Carbon - Blue, Frozen - Sunset, and Carbon - White - in sizes S-XL.
Key Features
- Orbea Oiz Carbon OMR full-suspension XC frame, Boost
- 120mm travel front and rear
- RockShox SID Select 120mm fork, 3-position
- RockShox SID Luxe Select+ shock, 3-position
- Shimano SLX M7200 12-speed rear derailleur
- Shimano MT600 hydraulic disc brakes
- Maxxis Rekon Race 2.40" tubeless-ready tires
- 29" wheels, sizes S-XL
Build Kit
- Frame
- Orbea Oiz Carbon OMR, Fiberlink, Boost, 120mm travel
- Fork
- RockShox SID Select 120mm DebonAir+ RL 3-Position, 15x110 Boost
- Shock
- RockShox SID Luxe Select+ 3-position, 120mm, 190x45mm
- Headset
- Alloy 1-1/2"
- Brakes
- Shimano MT600 Hydraulic Disc
- Rear Derailleur
- Shimano SLX M7200 SGS Shadow Plus
- Shifter
- Shimano Deore M6200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Crankset
- Shimano MT, 32t
- Wheels
- Alloy, 26c, 28H, Tubeless Ready
- Tires
- Maxxis Rekon Race 2.40" 120TPI Exo TR
- Saddle
- Fizik Vento Argo X5 140mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-170 cm (4'11"-5'7")
- M: 160-180 cm (5'3"-5'11")
- L: 170-190 cm (5'7"-6'3")
- XL
- 180-200 cm (5'11"-6'7")
Frequently Asked
- Is the M30 frame carbon? Yes - it uses Orbea's Oiz Carbon OMR frame, the accessible entry into the carbon Oiz range.
- Is it full suspension? Yes - 120mm of travel front and rear.
- How does the M30 compare to the alloy H-series? The M30 swaps the aluminum frame for a lighter, stiffer Oiz Carbon OMR frame with RockShox SID race suspension.
- What's the next step up? The Oiz M20 adds Fox Factory suspension and a Shimano XT drivetrain with Oquo carbon-spec wheels.
- What's new for 2027? Updated Oiz Carbon platform, RockShox SID suspension, and new 2027 colorways.
