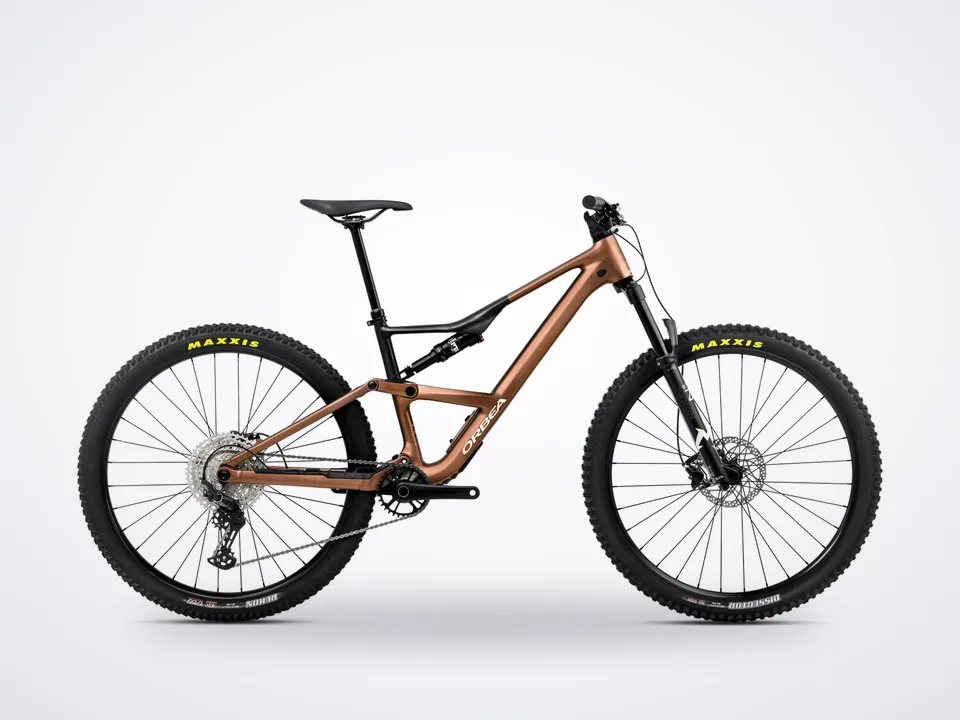

The 2027 Orbea Occam SL H30 is a short-travel trail full-suspension bike that brings Orbea's Concentric suspension and Pure Trail geometry to an accessible alloy build. With a 140mm fork, efficient rear suspension, a dropper post, and a dependable Shimano Deore 12-speed drivetrain, the Occam SL H30 climbs eagerly and descends with real confidence - the do-it-all trail bike for riders stepping into full suspension without overspending.

Show full description and specs

Concentric Trail Full-Suspension Frame

Orbea's Occam Hydro alloy frame uses the Concentric rear suspension layout and Pure Trail geometry for a balanced, efficient ride that pedals well on climbs and stays composed on the way down. Boost 12x148 spacing, 29" wheels, and a clean asymmetric design round out a capable modern trail platform.

140mm Travel + Squidlock Remote

A 140mm Marzocchi Bomber Z2 fork and Fox Float rear shock smooth out the trail, while Orbea's OC Squidlock remote lets you firm up both the fork and shock - and drop the seatpost - from a single lever. It's an intuitive way to switch from efficient climbing mode to full-open descending.

Shimano Deore 12-Speed Drivetrain

A Shimano Deore M6200 rear derailleur and shifter run a wide-range 10-51t 12-speed cassette for confident climbing, and Shimano MT201 hydraulic disc brakes provide reliable, all-weather control. Grippy Maxxis Dissector 2.40" tires keep you planted in the corners.

Available in three colorways: Cinnamon - Black, Green - Gum, and Tanzanite - in sizes S-XL.

Key Features

Orbea Occam Hydro alloy frame, Concentric suspension, Pure Trail geometry
140mm Marzocchi Bomber Z2 fork + Fox Float shock
OC Squidlock remote (suspension lockout + dropper)
Dropper seatpost
Shimano Deore M6200 12-speed drivetrain
Shimano MT201 hydraulic disc brakes
Tubeless-ready 29" alloy wheels
Maxxis Dissector 2.40" tires, sizes S-XL

Build Kit

Frame: Orbea Occam Hydro alloy, Concentric, Boost 12x148, Pure Trail geometry, 29"
Fork: Marzocchi Bomber Z2 140mm, Push-Lock Remote, QR15x110
Shock: Fox Float Performance, Remote Push-lock, Evol, 210x50mm
Remote: OC Squidlock MP11 (suspension + dropper)
Headset: FSA 1-1/2" Integrated Aluminium Cup
Stem: OC Mountain Control MC21, 0deg
Handlebar: OC Mountain Control MC30, Rise 20, 800mm
Brakes: Shimano MT201 Hydraulic Disc
Rear Derailleur: Shimano Deore M6200 SGS Shadow Plus
Shifter: Shimano Deore M6200 I-Spec EV
Cassette: Shimano CS-M6200 10-51t 12-Speed
Chain: Shimano M6100
Crankset: Forged alloy, 32t
Wheels: Alloy, Tubeless Ready, 29", 32H
Tires: Maxxis Dissector 2.40" 60TPI EXO/TR
Seatpost: Dropper post (OC Squidlock controlled)
Saddle: Selle Royal 2058 DRN
Sizing: Orbea's recommended rider height by size (approximate):

S: 150-165 cm (4'11"-5'5")
M: 165-177 cm (5'5"-5'10")
L: 177-188 cm (5'10"-6'2")
