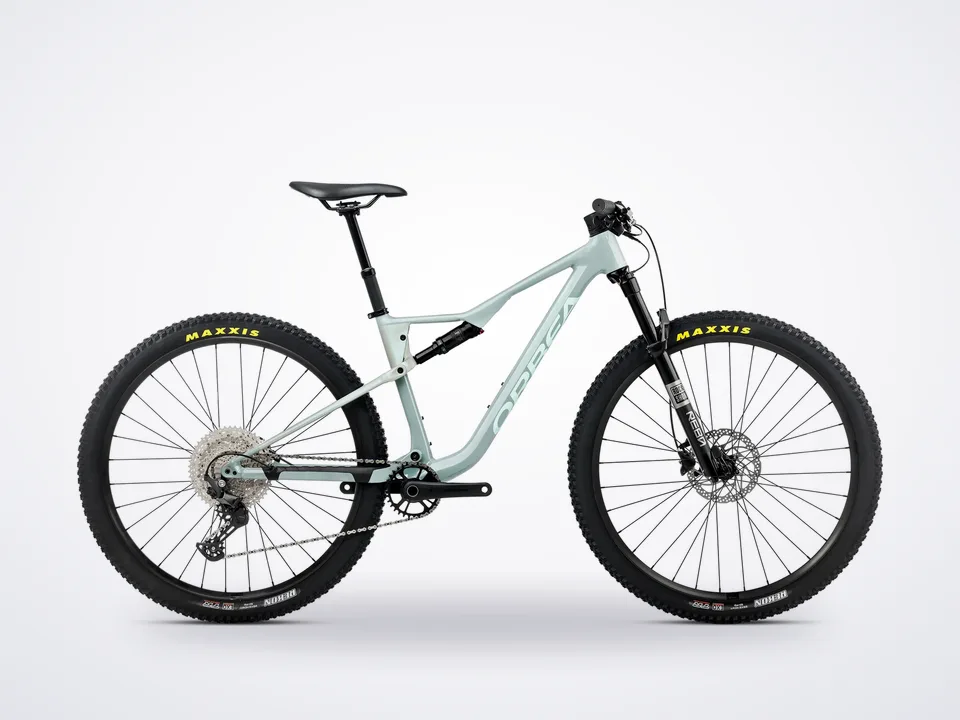

Orbea Oiz H30
In stock at 2 shops in Boston and Los Angeles
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The 2027 Orbea Oiz H30 is a full-suspension cross-country race bike with 120mm of travel front and rear, built on Orbea's lightweight Oiz aluminum frame. It pairs efficient, race-tuned suspension with a dependable Shimano Deore 12-speed drivetrain and a dropper post - a fast, capable XC bike that climbs efficiently and descends with confidence.
Show full description and specs
Lightweight Oiz Aluminum Frame, 120mm Travel
Orbea's Oiz Hydro alloy frame uses an alloy link, Boost spacing, and Orbea's SIC internal routing with an integrated I-Line shock layout for a clean, efficient full-suspension XC platform. With 120mm of rear travel and modern race geometry, the Oiz H30 stays quick on the climbs and composed on technical descents.
Race-Tuned Suspension with Remote Lockout
A RockShox Reba 120mm fork and Fox Float SL Performance shock are tuned for cross-country efficiency, with a 3-position fork lockout and a remote push-lock so you can firm up the suspension for climbing and sprinting without breaking rhythm.
Shimano Deore 12-Speed + Dropper
A Shimano Deore M6200 12-speed drivetrain and Shimano MT201 hydraulic disc brakes keep things reliable and easy to maintain, while an OC Squidlock dropper post adds descending confidence. Ready to race or rip right out of the shop.
- Available in two colorways
- Blue and Black - in sizes S-XL.
Key Features
- Orbea Oiz Hydro aluminum full-suspension XC frame, Boost
- 120mm travel front and rear
- RockShox Reba 120mm fork, 3-position remote lockout
- Fox Float SL Performance shock, remote push-lock
- Shimano Deore M6200 12-speed drivetrain
- Shimano MT201 hydraulic disc brakes
- OC Squidlock dropper post included
- 29" wheels, tubeless ready, sizes S-XL
Build Kit
- Frame
- Orbea Oiz Hydro Aluminum, alloy link, Boost, 120mm travel
- Fork
- RockShox Reba 120mm DebonAir+ RL 3-Position, 15x110 Boost
- Shock
- Fox Float SL Performance 120mm, remote push-lock, 190x45mm
- Headset
- Alloy 1-1/2"
- Stem
- Alloy 3D forged, 35mm, -7deg
- Handlebar
- Alloy, 35mm, Rise 12mm, 780mm
- Brakes
- Shimano MT201 Hydraulic Disc
- Rear Derailleur
- Shimano Deore M6200 SGS Shadow Plus
- Shifter
- Shimano Deore M6200
- Cassette
- Sun Race 11-51t 12-Speed
- Chain
- KMC X12
- Crankset
- Forged alloy, 32t
- Wheels
- Alloy, 26c, 28H, Tubeless Ready
- Seatpost
- OC Squidlock MP20-D Dropper
- Saddle
- Fortune QF-3091
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-170 cm (4'11"-5'7")
- M: 160-180 cm (5'3"-5'11")
- L: 170-190 cm (5'7"-6'3")
- XL
- 180-200 cm (5'11"-6'7")
Frequently Asked
- Is the Oiz H30 full suspension? Yes - it's a full-suspension cross-country bike with 120mm of travel front and rear.
- Is the frame aluminum or carbon? The H30 uses Orbea's Oiz Hydro aluminum frame. The Oiz M-series steps up to carbon.
- Does it have a dropper post? Yes - an OC Squidlock dropper post is included.
- Can I lock out the suspension for climbing? Yes - the fork and shock share a remote push-lock for efficient climbing.
- What's new for 2027? Updated Oiz frame…
