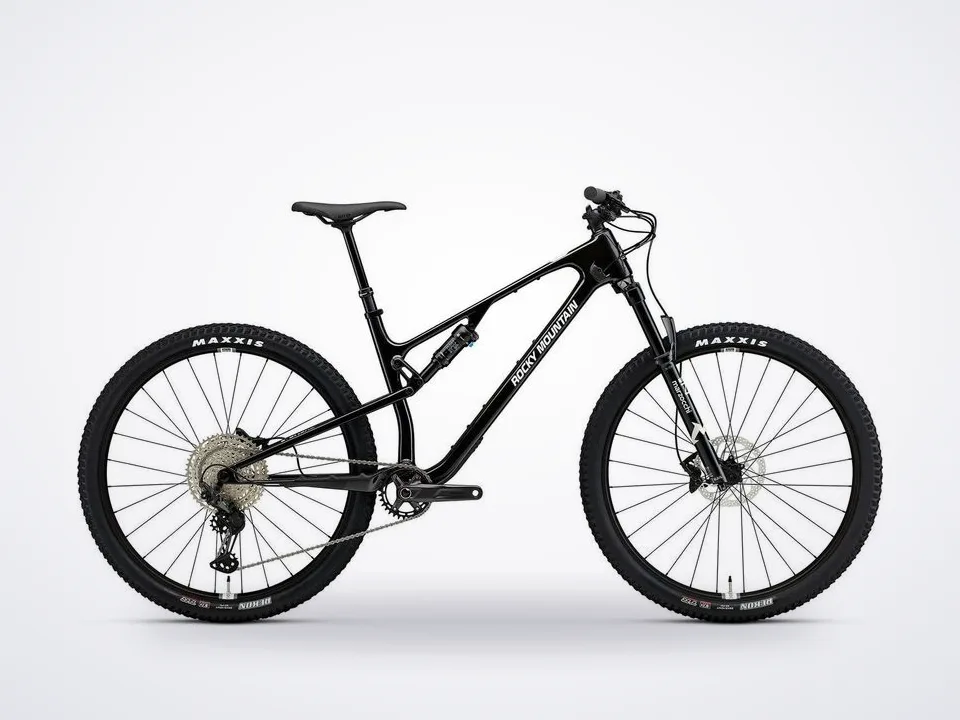

Rocky Mountain Element Carbon 30 MTB

Designed to strike the perfect balance of lightweight cross-country efficiency and technical precision, the Element is the best of all worlds. Lighter than ever and with updated suspension kinematics, get ready to push the pace and drop the pack. Geometry and suspension that pushes the boundaries of modern Cross Country riding, translates to supreme confidence riding technical terrain and high speed singletrack.

Specification

Frame: Smoothwall™ Carbon | Smoothlink SL™ Suspension | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel | Smoothwall™ Carbon Rear Triangle

Fork

Marzocchi Z2 Float EVOL Rail 130mm | 44mm Offset

Front Travel

130

Shock: Fox Float Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ

Rear Travel

120

Headset: FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm

Handlebar: Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips

Rocky Mountain Lock On Light

Brakes; Shimano MT4120 4 Piston | Resin Pads

Shifters

Shimano XT

Rear Derailleur

Shimano XT

Cranks & Chainring: Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano Deore 10-51T 12spd

Chain

Shimano M6100

Front Hub

Shimano TC500 | 15mm Boost

Rear Hub

Shimano TC500 Boost 148mm

Spokes

2.0 Stainless

Rims

WTB KOM Team i27 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl

Tyres: Maxxis Rekon 2.4 WT EXO Tubeless Ready | Maxxis Rekon 2.4 WT EXO Tubeless Ready | Tubeless Set Up | Sealant Incl

Seatpost: X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm

Saddle

WTB Silverado Race 142 | Steel Rails
