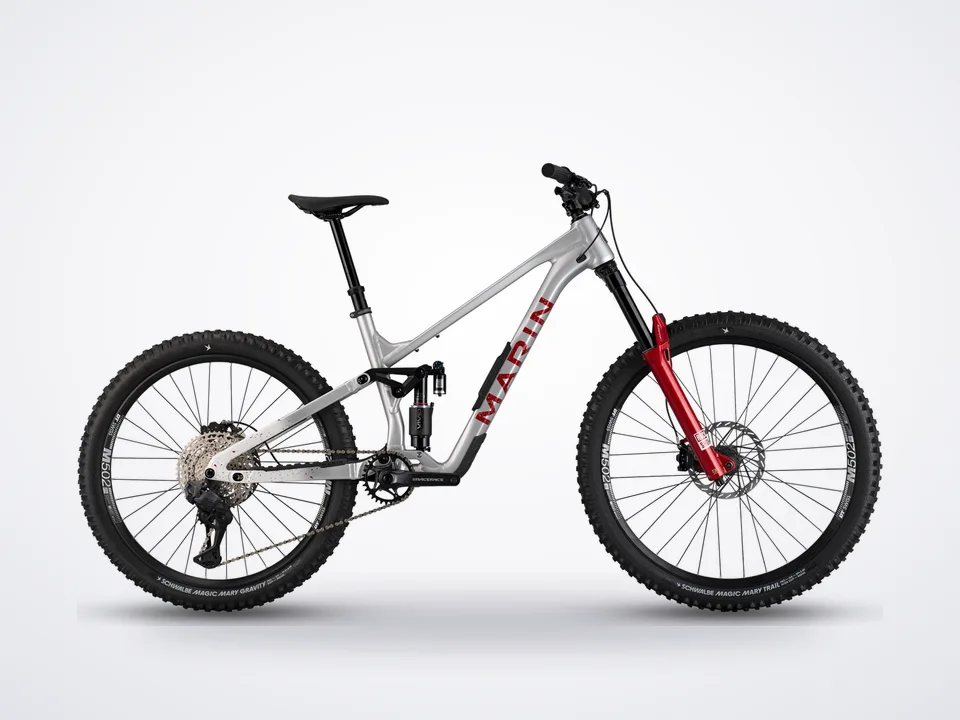

Marin Alpine Trail XR
In stock at 2 shops in Edinburgh
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
Big All-Mountain Days Where Travel And Geometry Matter Most
Big Bike, Big Wheels, Big Fun
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Specifications
- Frame
Series 4 6061 Aluminum, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
- Front Suspension
Show full description and specs
Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium spring rate
- Rear Suspension
Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring
- Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
- Hub, Rear
Forged Aluminum, 148x12mm, Disc, Microspline Freehub Body
- Hub, Front
Forged Aluminum, 110x15mm, Disc
- Spoke, Nipples
14g Black Stainless Steel
- Tires
Maxxis Assegai 29x2.5", MAXX Terra, EXO+, Tubeless Compatible
- Derailleur, Rear
Shimano XT 12-Speed, SGS
- Derailleur, Front
- •
Shimano SLX 12-Speed, SL-7100
- Crankset
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mega Eco Spindle, Boost Spacing
- Bottom Bracket
MegaEvo BB, 73mm BSA Threaded
- Chain
KMC X-12 Silver and Black
- Cassette
Shimano SLX M7100 Cassette, 12-Speed, 10-51T
- Brake, Front
TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
- Brake, Rear
TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
- Brake Levers
Shimano BL-M4100, I-Spec EV Compatible
- Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- Stem
Marin CNC, 35mm Length, 35mm Bar Bore
- Grips
Marin Grizzy Lock On
- Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
- Saddle
Marin Speed Concept
- Pedals
- •
Bolt-On Thru-Axle
- Extras
Downtube Protector
