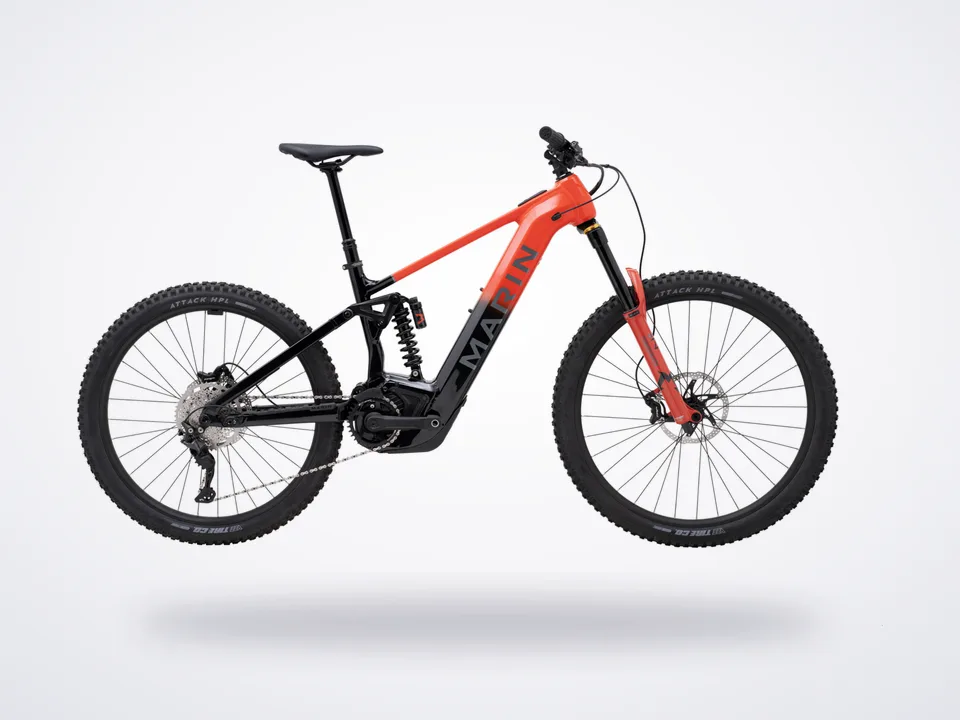

Marin Alpine Trail E1 Bosch

We've increased the travel by 10mm at both ends, now standing at 170mm (f) and 160mm (r), and relocated the pivots to the chainstays to deliver the suspension performance and tunability demanded by the longer travel. Riders have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.

Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.

The Alpine Trail E1 (Bosch) is smartly spec'd with choice Marzocchi suspension with a coil shock out back, Shimano's innovative CUES 10-speed drivetrain and Tektro's Slate EVO 4-piston brakes with 203mm x 2.3mm rotors for when you need to reel in the party.

Specifications

• Frame

All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

• Front Suspension

Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset

• Rear Suspension

Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb

• Rim

Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• Hub Rear

Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

• Hub Front

Shimano FH-TC500, 110x15mm, Centerlock, 32H

• Spokes

14g Black Stainless Steel

• Tires

Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"

• Derailleur Rear

Shimano CUES RD-U6000 GS, 10-Speed

• Derailleur Front
• •

Shimano CUES SL-U6000-10R, 10-Speed

• Crankset

E*thirteen e*spec Plus, 160mm Length

• Motor

Bosch Performance Line CX, 85Nm, 20MPH (US, NZ)/25 km/h (Rest of World) Top Assisted Speed

• Chain

Shimano LG500

• Cassette

Shimano CS-LG300-10, 11-48T

• Brakes Front

TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

• Brakes Rear

TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

• Brake Levers

TRP Slate EVO

• Handlebar

Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• Stem

Marin 3D Forged Alloy, 35mm

• Grips

Marin Grizzly Lock-On

• Headset

FSA Custom Headset, Adjustable HTA…
