Orbea Urrun 20 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

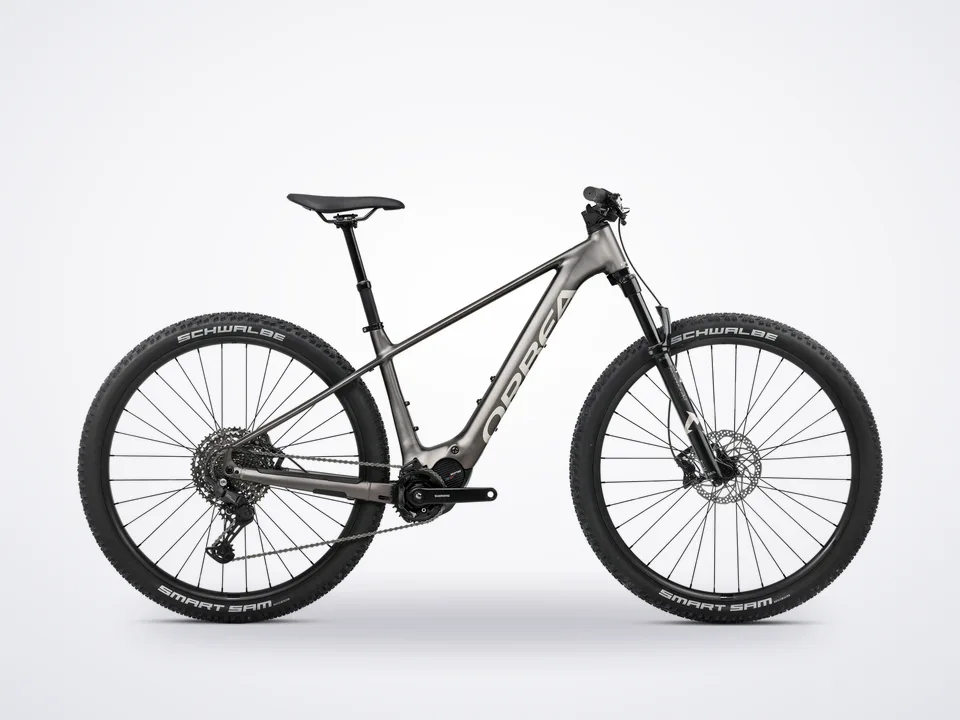

The 2027 Orbea Urrun 20 is a full-power electric trail hardtail that delivers strong torque, big range, and capable trail-ready components at a smart mid-range price. Built on Orbea's aluminum Urrun frame with a 120mm air fork and powered by Shimano's EP600 motor with an integrated 630Wh battery, it pairs confident full-power assistance with the low-maintenance simplicity of a hardtail.
Show full description and specs
Shimano EP600 Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque and 500W of peak power with smooth, quiet, natural-feeling support, so the Urrun 20 climbs confidently and extends your range on every ride. The integrated 630Wh battery gives you the miles to explore farther, and as a Class 1, 20mph pedal-assist eMTB it's trail-legal wherever Class 1 ebikes are allowed.
Capable Trail Hardtail, 120mm Travel
With 120mm of front travel from a Marzocchi Bomber Z2 air fork and Orbea's lightweight aluminum Urrun frame, the Urrun 20 is built to rip flowy trails and tackle technical climbs. Modern trail geometry and 29" wheels roll over obstacles and keep you stable and confident, while the hardtail rear keeps the bike efficient and easy to maintain.
Versatile Shimano CUES Build
The Urrun 20 runs Shimano's 11-speed CUES U6000 drivetrain, Shimano MT420 4-piston hydraulic disc brakes, a dropper post, 29" WH23 tubeless wheels, and grippy Schwalbe Smart Sam tires - a well-rounded, trail-ready build ready to ride out of the shop.
Available in three colorways: Magnetic Bronze (Matt) / Silver (Gloss), Tanzanite / Blue (Gloss), and Mars Red (Matt) / Cosmic Bronze (Gloss) - in sizes S-XL.
Key Features
- Shimano EP600 motor (up to 85Nm, 500W peak) with integrated 630Wh battery
- Class 1 / 20mph pedal-assist eMTB
- 120mm front travel trail hardtail
- Marzocchi Bomber Z2 air fork
- Aluminum Orbea Urrun frame, 29" wheels
- Shimano CUES U6000 11-speed drivetrain
- Shimano MT420 4-piston hydraulic disc brakes
- WH23 alloy tubeless 29" wheels
- Schwalbe Smart Sam 29x2.35 tires
- Dropper seatpost included
Build Kit
- Frame
- Orbea Urrun, Aluminum, 29"
- Fork
- Marzocchi Bomber Z2, 120mm, QR15x110, E-Bike Optimized
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 630Wh
- Display
- Shimano EN500
- Charger
- Orbea 2nd-Generation eBike Smart Charger 42V/2-4A
- Crank
- Shimano EN500
- Rear Derailleur
- Shimano CUES U6000 GS Shadow (11-Speed)
- Shifter
- Shimano CUES SL-U6000
- Cassette
- Shimano CS-LG400 11-50t 11-Speed
- Chain
- Shimano LG500
- Brakes
- Shimano MT420 4-Piston Hydraulic Disc
- Stem
- OC Mountain Control MC21, 0º
- Handlebar
- OC Mountain Control MC31, Rise 20, Width 800
- Wheels
- WH23 Alloy Tubeless, 29", 30c, 32H
- Tires
- Schwalbe Smart Sam Performance, 29x2.35, Addix
- Saddle
- Fortune QF-3091
- Seatpost
- Dropper post with Shimano SL-MT500 I-Spec EV remote
- Pedals
- VP-537
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-170 cm (4'11"-5'7")
- M: 160-180 cm (5'3"-5'11")
- L: 170-190 cm (5'7"-6'3")
- XL
- 180-200 cm…
