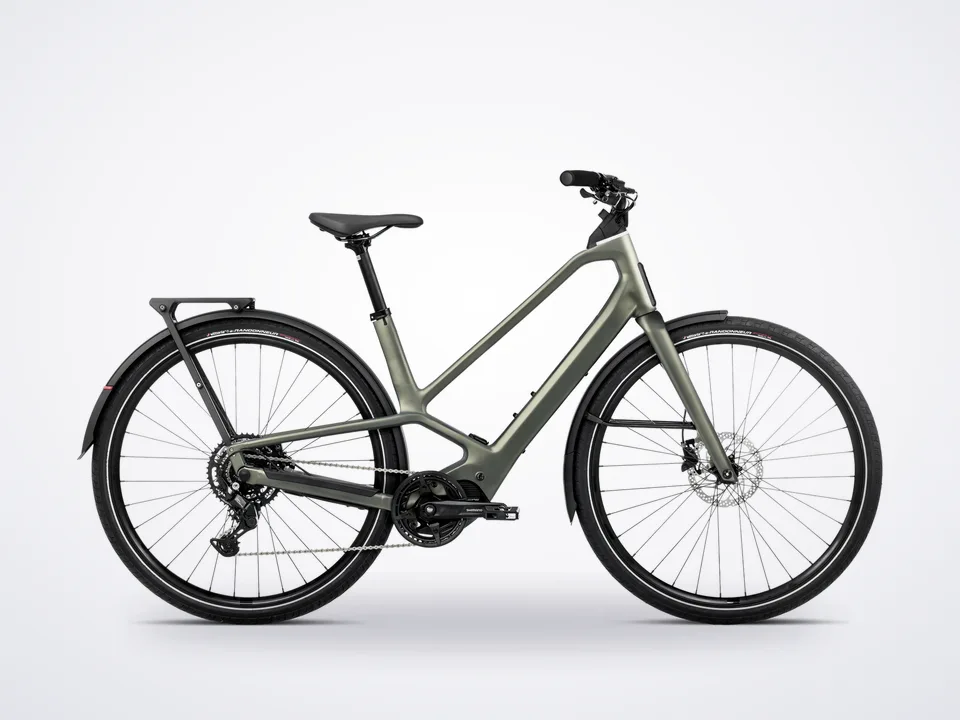

Orbea Diem 30 20mph

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The 540Wh battery is built into the downtube for a clean, balanced, theft-resistant package, with an optional 252Wh range extender for even bigger days. As a Class 1 (20 mph) pedal-assist e-bike, the Diem 30 is street-legal on the widest range of paths and bike lanes.

Proven Shimano Gearing

The Diem 30 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide-range cassette and a tough KMC eGlide chain - simple, durable, and easy to service, with the gear range to handle hills and headwinds.

Designed-In Safety & Comfort

The patented Diamond Glide frame flexes vertically to absorb bumps, while wide Schwalbe Marathon tires smooth out rough streets. Integrated StVZO wraparound lighting keeps you seen day or night, and an integrated kickstand, Spinblock steering limiter, USB-C charging and AirTag-ready mount round out a city bike that's as practical as it is polished.

Available in three colorways

Spaceship Green, Ivory White, and Anthracite Glitter - in sizes S-XL.

Key Features

• Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery
• Class 1 / 20mph pedal-assist e-bike
• Aluminum Orbea Diem Diamond Glide frame, full-carbon fork
• Shimano CUES U4000 9-speed drivetrain
• Shimano MT200 hydraulic disc brakes
• Integrated StVZO wraparound lighting, front and rear
• Integrated kickstand, USB-C charging, AirTag-ready

Build Kit

Frame

Orbea Diem Aluminum 6061, Diamond Glide

Fork

Orbea Diem full carbon

Motor

Shimano EP600 (up to 85Nm)

Battery

Orbea Internal 540Wh (optional 252Wh range extender)

Display

Shimano EN500

Rear Derailleur

Shimano CUES U4000 GS Shadow

Shifter

Shimano CUES SL-U4000

Cassette

Shimano CS-LG300 11-46t, 9-Speed

Chain

KMC eGlide

Brakes

Shimano MT200 Hydraulic Disc

Crank

Shimano Steps

Wheels

Alloy, 32H

Tires

Schwalbe Marathon 50-622, reflective

Seatpost

Alloy, 31.6mm

Handlebar

Orbea Urban, integrated light, 720mm

Lighting

Integrated StVZO wraparound front and rear

Sizing

Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

XL

187-204 cm (6'2"-6'8")

Frequently Asked

• How fast is the Orbea Diem 30? This is the Class 1 version with pedal assist up to 20 mph (a Class 3 / 28 mph version is also offered).
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 540Wh battery, plus an…
