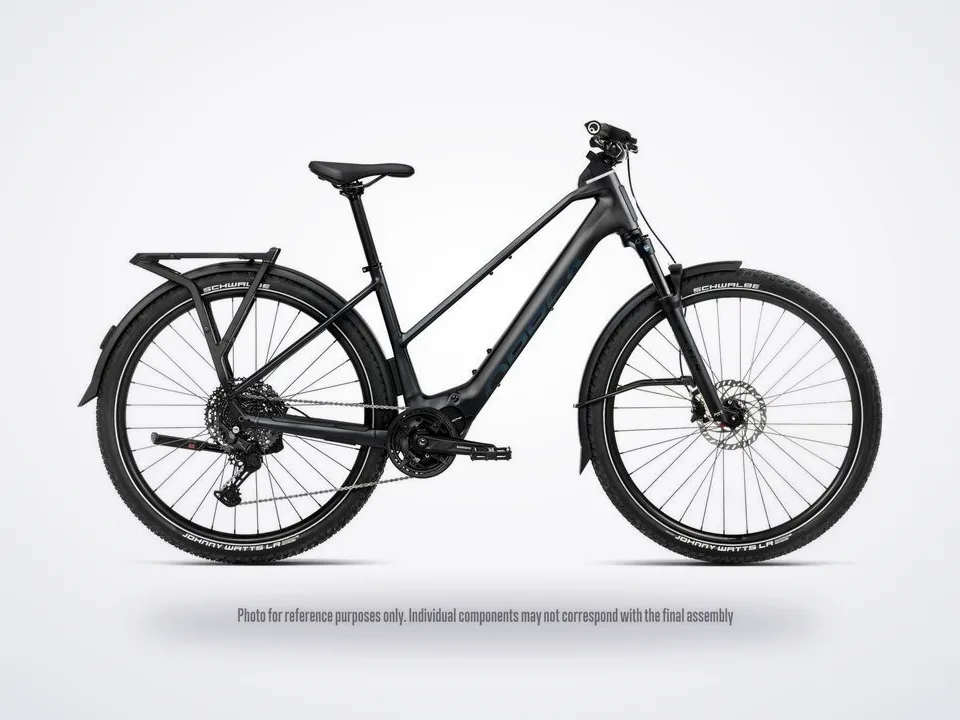

Orbea Kemen ADV 20 MID 20mph

Name: Orbea Kemen ADV 20 MID 20mph
Brand: Orbea

Electric

$4,094

In stock at 1 shop in Los Angeles

Sizes in stock

SML

Buy at Around the Cycle

Prices and stock checked Oct 22.

Where to buy

1 shop

Around the Cycle1270 Lincoln Ave, Pasadena, CA 91103 · Los Angeles · Directions

2026Sizes S, M, L

$4,094

View

About this bike

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful motor and battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

Build Kit

Frame: Orbea Kemen Mid Bar Hydro High Polished 2026, 148x12, Belt drive compatible, Headset Routing, Orbea Urban Cockpit and equipment compatible, lock mount, kickstand mount

Show full description and specs

Fork: SR Suntour XCR34 100mm Air Q15x110
Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
Battery: Orbea Internal 630Wh
Motor: Shimano EP600
Display: Shimano EN500
Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
Chainring: Alloy 40t w/ chainguard
Crank: Shimano Steps EM600
Shifters: Shimano Cues SL-U6000
Cassette: Shimano CS-LG400 11-50t 11-Speed
Rear derailleur: Shimano Cues U6000 GS Shadow
Chain: KMC eGlide
Handlebar: Orbea Urban, Integrated Light, Rise 50, Width 760
Brakes: Magura AT2 Hydraulic Disc Easy Route Connection
Wheels: Alloy, 26c, 32H
Tyres: Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Pedals: VP-892 Black with reflectors
Rear carrier: Orbea RR-02 Alloy, w/ MIK HD and MIK Side and Ortlieb QL3.1 system, Max. 30Kg
Mudguard: Curana Apollo Orbit 70mm
Front Position Light: Orbea integrated, USB-C charging point
Front light: Supernova Starstream Pure, Low Beam
Rear light: Supernova TL3 Z
Quick stand: Massload rear adjustable
Seatpost: Alloy, 31.6mm, Setback 0
Saddle: Selle Royal Vivo Ergo
Sizing: Orbea recommends the following sizes based on rider height
SM: 5'0" - 5'8"
MD: 5'5" - 6'0"
LG: 5'9" - 6'5"
XL: 6'2" - 6'9"
