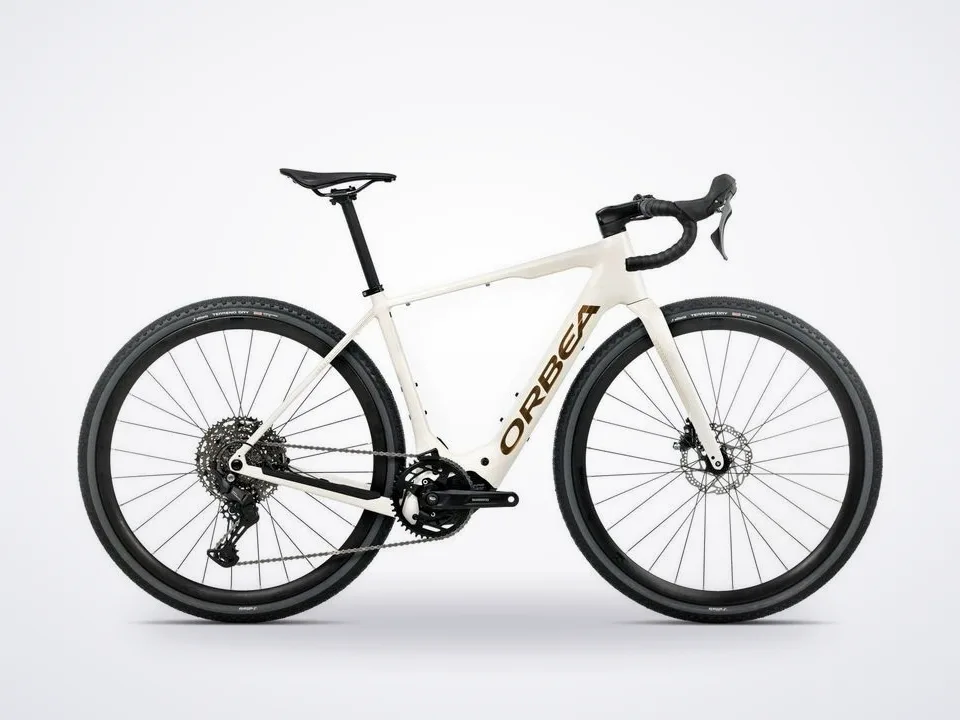

Orbea Denna H40 28mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Denna H40 is a full-power electric gravel and all-road bike that opens up bigger rides on road, gravel, and everything between. Built on Orbea's aluminum Denna frame with a full-carbon fork and powered by Shimano EP600 with an integrated 420Wh battery, it blends road-bike efficiency with the range and capability to explore far past the pavement.
Show full description and specs
Shimano Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, so the Denna H40 flattens climbs and stretches your range across long mixed-surface days. The integrated 420Wh battery keeps the bike clean and balanced, and as a Class 3 (28 mph) pedal-assist e-bike it's built to keep pace on the road and the trail.
Gravel & All-Road Versatility
The Denna runs 700c wheels with 45mm Pirelli Cinturato Gravel tires, a full-carbon fork, internal cable routing, and endurance geometry - stable and comfortable loaded up for all-day adventures, yet quick and efficient when the road turns smooth.
Shimano CUES U6000 Build
The Denna H40 is built with a Shimano CUES U6000 drivetrain, Shimano RS405 hydraulic disc brakes, Alloy Tubeless 700c wheels, and Pirelli tires - a dependable, value-focused alloy e-gravel build ready to ride out of the shop.
- Available in three colorways
- Ivory White, Blue Stone, and Magnetic Bronze - in sizes XS-XXL.
Key Features
- Shimano EP600 full-power motor (up to 85Nm) with integrated 420Wh battery
- Class 3 / 28mph pedal-assist e-bike
- Aluminum Orbea Denna frame, full-carbon fork
- 700c wheels, Pirelli Cinturato Gravel H 700x45c TLR
- Shimano CUES U6000 drivetrain
- Shimano RS405 hydraulic disc brakes
- Alloy Tubeless 700c wheels
Build Kit
- Frame
- Orbea Denna Aluminum
- Fork
- Orbea Denna OMR ICR, full carbon
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 420Wh
- Rear Derailleur
- Shimano CUES U6000 GS
- Shifter
- Shimano U6030
- Cassette
- Shimano CS-LG400 11-50t 11-Speed
- Brakes
- Shimano RS405 Hydraulic Disc
- Crank
- Shimano Steps EM600
- Wheels
- Alloy Tubeless 700c
- Tires
- Pirelli Cinturato Gravel H 700x45c TLR
- Seatpost
- SP 0.2 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31
- Sizing
- Orbea recommended rider height by size (approximate):
- XS
- 160-168 cm (5'0"-5'3")
- S: 166-174 cm (5'4"-5'8")
- M: 172-180 cm (5'8"-5'11")
- L: 178-186 cm (5'10"-6'1")
- XL
- 184-192 cm (6'1"-6'3")
- Xxl
- 190-198 cm (6'3"-6'6")
Frequently Asked
- How fast is the Orbea Denna H40? It's a Class 3 e-bike with pedal assist up to 28 mph.
- What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 420Wh battery.
- Is it road or gravel? Both - the Denna is a do-it-all electric all-road / gravel bike.
- How does the Denna H40 compare to the H30? Step up to the H30 for a 12-speed Shimano GRX drivetrain - the H40 keeps the value-focused 11-speed CUES build.
- What's new for 2027? The Denna is Orbea's…
