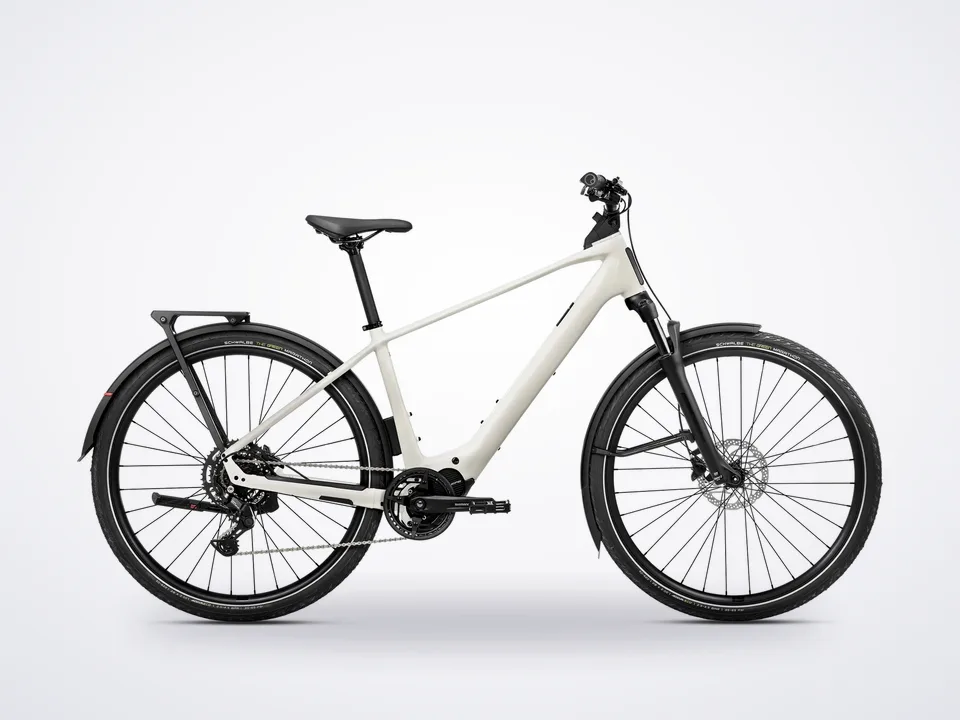

Orbea Kemen Tour 30 28mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Kemen TOUR 30 is the accessible entry into Orbea's full-power electric trekking family - smooth on the commute and ready for everyday touring. Built on Orbea's aluminum Kemen frame with an 80mm SR Suntour suspension fork and powered by a Shimano EP600 motor with an integrated 540Wh battery, it pairs effortless assistance with proven, easy-to-service gearing and fully integrated lighting.
Show full description and specs
Shimano Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or carry a loaded bike with ease. The integrated 540Wh battery packs range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen TOUR 30 keeps pace anywhere.
Proven Shimano Gearing
The TOUR 30 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide 11-46t range - simple, durable and easy to service, with the gears to handle hills and headwinds.
Built for Touring & Commuting
An 80mm SR Suntour NVX fork and reflective Schwalbe Marathon tires smooth out the miles, while Orbea's patented four-position cockpit, fully integrated StVZO lighting, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen TOUR ready for cargo, kids, and everyday duty.
- Available in three colorways
- White Chic, Nickel, and Racing Green - in sizes S-XL.
Key Features
- Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery (+ optional 252Wh range extender)
- Class 3 / 28mph pedal-assist e-bike
- Aluminum Orbea Kemen frame, 29-inch wheels, belt-drive compatible
- SR Suntour NVX 80mm suspension fork
- Shimano CUES U4000 9-speed drivetrain (11-46t)
- Shimano MT200 hydraulic disc brakes
- Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible
Build Kit
- Frame
- Orbea Kemen Top Bar, Hydroformed Alloy 6061
- Fork
- SR Suntour NVX 80mm
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 540Wh (optional 252Wh range extender)
- Display
- Shimano EN500
- Rear Derailleur
- Shimano CUES U4000 GS Shadow
- Shifter
- Shimano CUES SL-U4000
- Cassette
- Shimano CS-LG300 11-46t, 9-Speed
- Chain
- KMC eGlide
- Brakes
- Shimano MT200 Hydraulic Disc
- Crank
- Shimano Steps
- Wheels
- Alloy, 29-inch, 32H
- Tires
- Schwalbe Marathon 50-622, reflective
- Seatpost
- SP03 alloy, 31.6mm
- Saddle
- Selle Royal Vivo Ergo
- Lighting
- Integrated StVZO front and rear
- Sizing
- Orbea recommended rider height by size (approximate):
- S: 153-172 cm (5'0"-5'8")
- M: 164-183 cm (5'5"-6'0")
- L: 176-195 cm (5'9"-6'5")
- XL
- 187-206 cm (6'2"-6'9")
Frequently Asked
- How fast is the Orbea Kemen TOUR 30? It's a Class 3 e-bike with pedal assist up to 28 mph.
- What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 540Wh battery, plus an optional 252Wh range extender.
- Chain or belt? The TOUR 30 uses a traditional Shimano CUES 9-speed chain drive…
