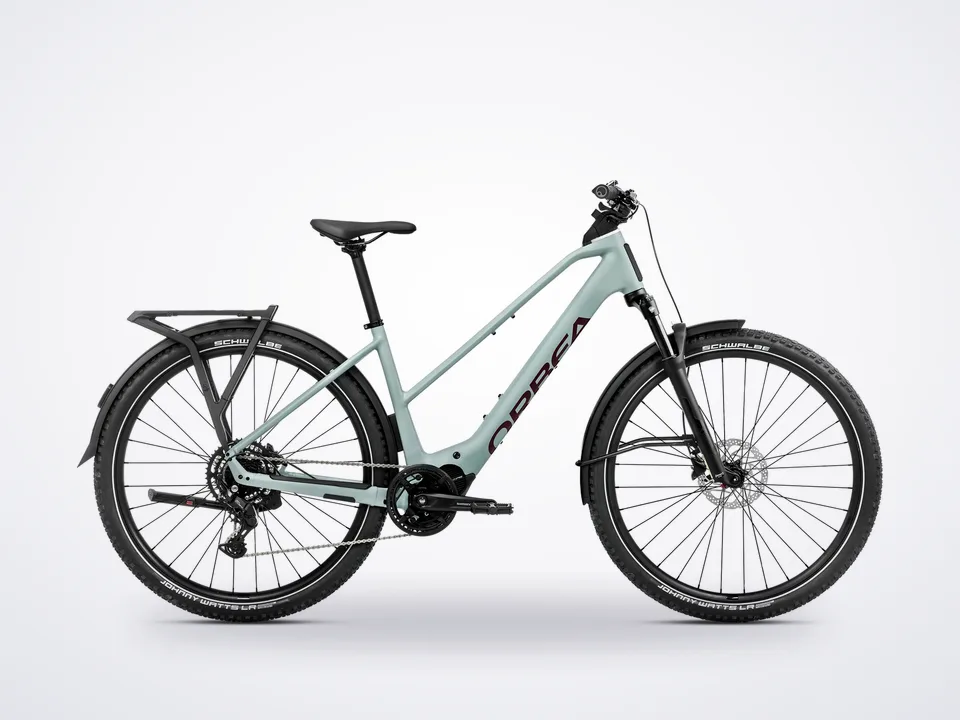

Orbea Kemen ADV 30 MID 28mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Kemen ADV 30 MID is the accessible entry into Orbea's full-power all-terrain electric SUV family, with a low step-through frame for easy, confident on-and-off. Built on Orbea's aluminum Kemen Mid frame with a 100mm SR Suntour suspension fork and powered by a Shimano EP600 motor with an integrated 540Wh battery, it pairs effortless assistance with adventure-ready capability and fully integrated lighting.
Show full description and specs
Shimano Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or haul a loaded bike with ease. The integrated 540Wh battery uses the latest cell technology to pack range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen ADV 30 MID keeps pace anywhere.
Trail-Ready Capability
A 100mm SR Suntour XCR34 coil fork smooths out rough trails, while grippy 29-inch Schwalbe Johnny Watts tires roll fast and hook up off-road. A reliable Shimano CUES U4000 9-speed drivetrain delivers a wide 11-46t range that's simple, durable and easy to service.
Step-Through Convenience, Built to Carry
The low Mid-bar frame makes mounting, dismounting and stop-and-go riding effortless. Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen ADV ready for cargo, kids, and everyday duty.
Available in three colorways: Frozen Concrete / Blue Stone, Metallic Rust / Ivory White, and Fuel Black / Titan Grey - in sizes S-L.
Key Features
- Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery (+ optional 252Wh range extender)
- Class 3 / 28mph pedal-assist e-bike
- Aluminum Orbea Kemen Mid (step-through) frame, 29-inch wheels, belt-drive compatible
- SR Suntour XCR34 100mm coil suspension fork
- Shimano CUES U4000 9-speed drivetrain (11-46t)
- Shimano MT200 hydraulic disc brakes
- Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible
Build Kit
- Frame
- Orbea Kemen Mid Bar (step-through), Hydroformed Alloy 6061
- Fork
- SR Suntour XCR34 100mm Coil
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 540Wh (optional 252Wh range extender)
- Display
- Shimano EN500
- Rear Derailleur
- Shimano CUES U4000 GS Shadow
- Shifter
- Shimano CUES SL-U4000
- Cassette
- Shimano CS-LG300 11-46t, 9-Speed
- Chain
- KMC eGlide
- Brakes
- Shimano MT200 Hydraulic Disc
- Crank
- Shimano Steps
- Wheels
- Alloy, 29-inch, 32H
- Tires
- Schwalbe Johnny Watts LR 60-622, reflective
- Seatpost
- SP03 alloy, 31.6mm
- Saddle
- Selle Royal Vivo Ergo
- Lighting
- Integrated StVZO front and rear
- Sizing
- Orbea recommended rider height by size (approximate):
- S: 153-172 cm (5'0"-5'8")
- M: 164-183 cm (5'5"-6'0")
- L: 176-195 cm (5'9"-6'5")
Frequently Asked
- How fast is the Orbea Kemen ADV 30 MID? It's a Class…
