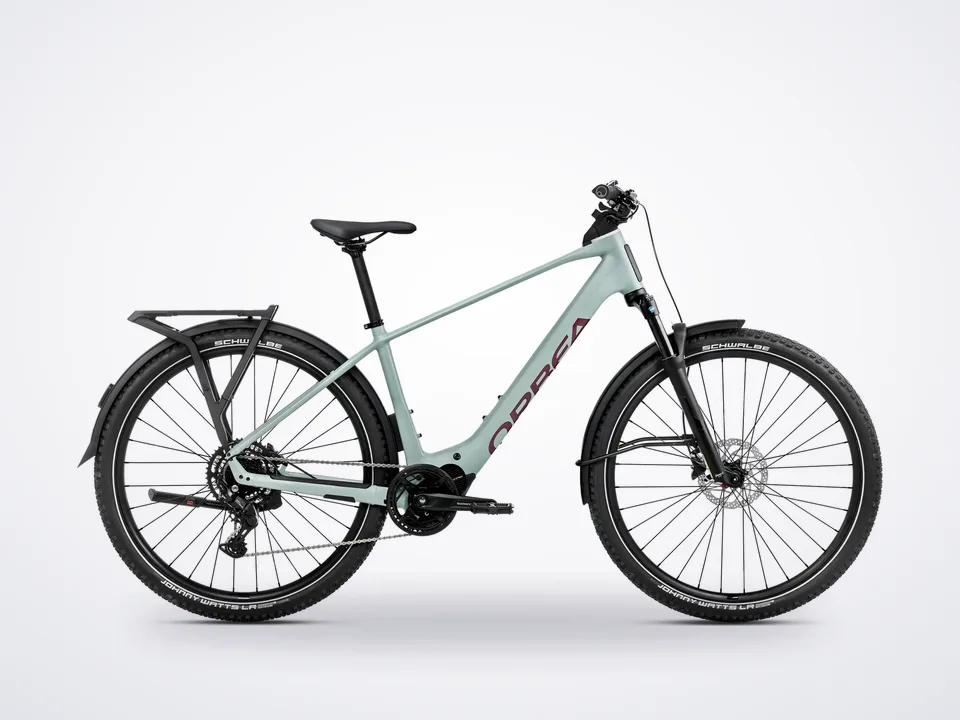

Orbea Kemen ADV 30 28mph

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or haul a loaded bike with ease. The integrated 540Wh battery uses the latest cell technology to pack range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen ADV 30 keeps pace anywhere.

Trail-Ready Capability

A 100mm SR Suntour XCR34 coil fork smooths out rough trails, while grippy 29-inch Schwalbe Johnny Watts tires roll fast and hook up off-road. A reliable Shimano CUES U4000 9-speed drivetrain delivers a wide 11-46t range that's simple, durable and easy to service.

Built to Carry & Commute

Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen ADV ready for cargo, kids, and everyday duty.

Available in three colorways: Frozen Concrete / Blue Stone, Metallic Rust / Ivory White, and Fuel Black / Titan Grey - in sizes S-XL.

Key Features

• Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen frame, 29-inch wheels, belt-drive compatible
• SR Suntour XCR34 100mm coil suspension fork
• Shimano CUES U4000 9-speed drivetrain (11-46t)
• Shimano MT200 hydraulic disc brakes
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

Build Kit

Frame

Orbea Kemen Top Bar, Hydroformed Alloy 6061

Fork

SR Suntour XCR34 100mm Coil

Motor

Shimano EP600 (up to 85Nm)

Battery

Orbea Internal 540Wh (optional 252Wh range extender)

Display

Shimano EN500

Rear Derailleur

Shimano CUES U4000 GS Shadow

Shifter

Shimano CUES SL-U4000

Cassette

Shimano CS-LG300 11-46t, 9-Speed

Chain

KMC eGlide

Brakes

Shimano MT200 Hydraulic Disc

Crank

Shimano Steps

Wheels

Alloy, 29-inch, 32H

Tires

Schwalbe Johnny Watts LR 60-622, reflective

Seatpost

SP03 alloy, 31.6mm

Saddle

Selle Royal Vivo Ergo

Lighting

Integrated StVZO front and rear

Sizing

Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

XL

187-206 cm (6'2"-6'9")

Frequently Asked

• How fast is the Orbea Kemen ADV 30? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an…
