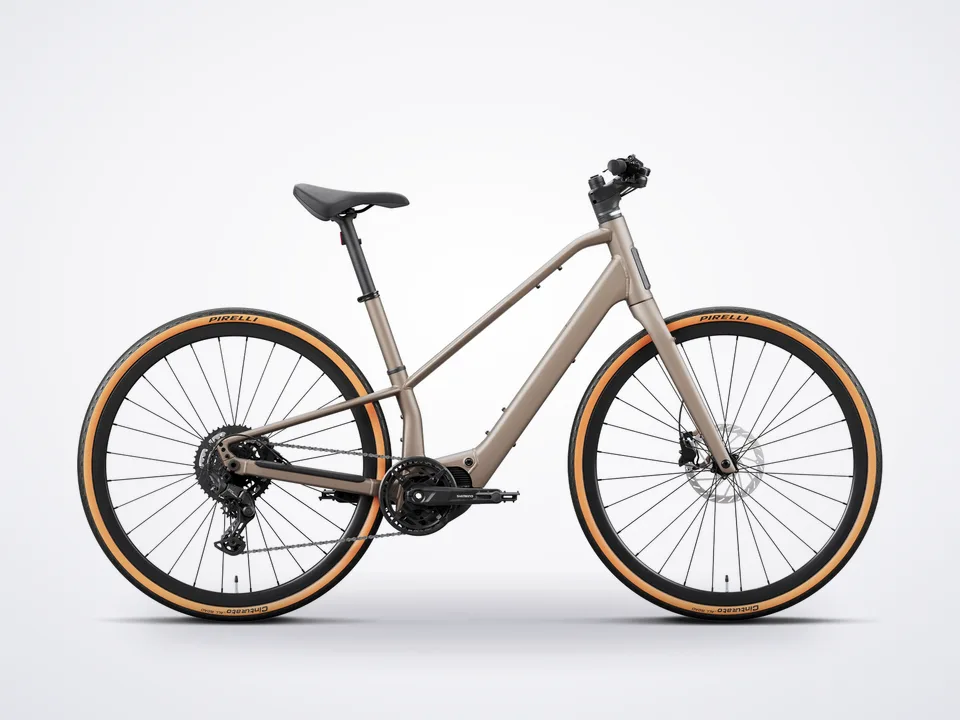

Orbea Carpe 25 28mph

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The integrated 420Wh battery keeps the Carpe light and balanced, and as a Class 3 (28 mph) pedal-assist e-bike it keeps pace with city traffic.

Proven Shimano Gearing

The Carpe 25 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide-range cassette and a tough KMC eGlide chain - simple, durable, and easy to service, with the gear range to handle hills and headwinds.

Wider All-Road Tires

What sets the Carpe 25 apart is its 45mm Pirelli Cinturato All Road Classic tires - tubeless-ready rubber that adds comfort, grip and confidence on broken pavement, light gravel and curb cuts, while a full-carbon fork and integrated lighting keep the ride smooth and visible.

Available in three colorways

Nickel, Mars Red, and Diamond Black - in sizes S-XL.

Key Features

• Shimano EP600 full-power motor (up to 85Nm) with integrated 420Wh battery
• Class 3 / 28mph pedal-assist e-bike
• Hydroformed aluminum Orbea Carpe frame, full-carbon fork
• Shimano CUES U4000 9-speed drivetrain
• 45mm Pirelli Cinturato All Road Classic TLR tires
• Shimano MT200 hydraulic disc brakes
• Integrated front and rear lighting, kickstand, trailer compatible

Build Kit

Frame

Orbea Carpe Hydroformed Alloy 6061

Fork

Orbea Carpe full carbon

Motor

Shimano EP600 (up to 85Nm)

Battery

Orbea Internal 420Wh

Display

Shimano EN500

Rear Derailleur

Shimano CUES U4000 GS Shadow

Shifter

Shimano CUES SL-U4000

Cassette

SunRace 11-46t, 9-Speed

Chain

KMC eGlide

Brakes

Shimano MT200 Hydraulic Disc

Crank

Shimano Steps

Wheels

Alloy, 32H

Tires

Pirelli Cinturato All Road Classic 700x45c TLR

Seatpost

SP08 alloy, 31.6mm, with integrated light

Saddle

Selle Royal Vivo Ergo

Lighting

Integrated front and rear

Sizing

Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

XL

187-206 cm (6'2"-6'9")

Frequently Asked

• How fast is the Orbea Carpe 25? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 420Wh battery.
• What makes the Carpe 25 different? Wider 45mm Pirelli Cinturato all-road tubeless-ready tires for extra comfort and grip on rougher surfaces, on the same lightweight Carpe platform.
• How does the Carpe 25 compare to the Carpe 20? Both use the Shimano CUES 9-speed chain drive; the 25 rolls on wider 45c all-road tires while the 20 runs 42c reflective commuter tires.
• …
