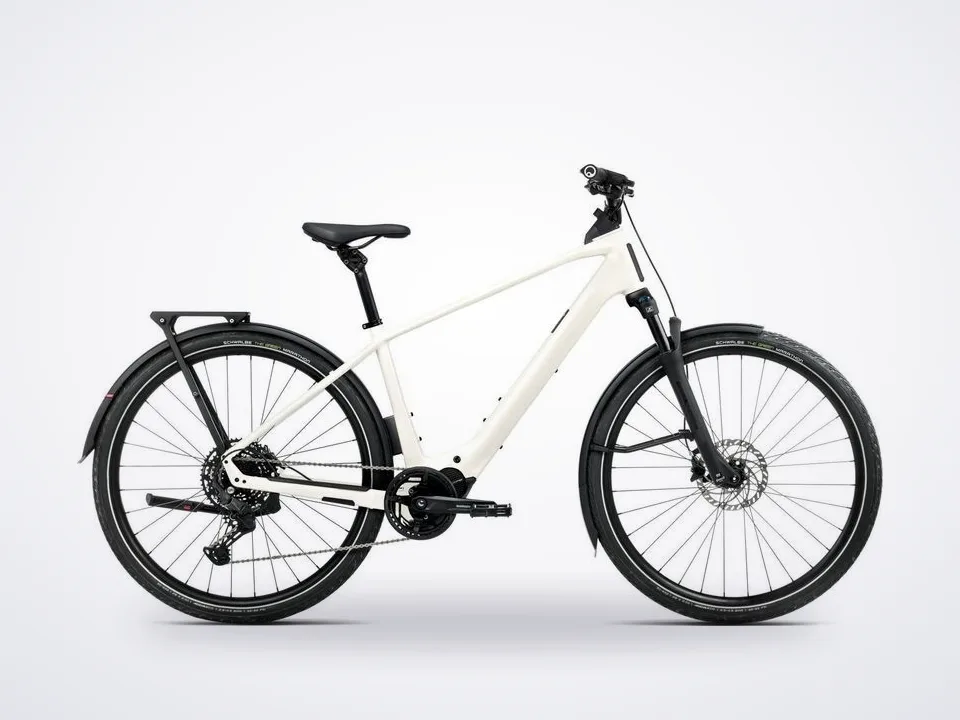

Orbea Kemen Tour 20 28mph

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or carry a fully loaded bike with ease. The integrated 630Wh battery packs big range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen TOUR 20 keeps pace anywhere.

Proven Shimano Gearing

The TOUR 20 runs a reliable Shimano CUES U6000 10-speed drivetrain with a wide 11-48t range - simple, durable and easy to service - plus a suspension seatpost that takes the edge off long days in the saddle.

Built for Touring & Commuting

An 80mm SR Suntour NVX fork and reflective Schwalbe Marathon tires smooth out the miles, while Orbea's patented four-position cockpit, fully integrated StVZO lighting, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen TOUR ready for cargo, kids, and everyday duty.

Available in three colorways

White Chic, Nickel, and Racing Green - in sizes S-XL.

Key Features

• Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen frame, 29-inch wheels, belt-drive compatible
• SR Suntour NVX 80mm suspension fork
• Shimano CUES U6000 10-speed drivetrain (11-48t)
• Shimano MT200 hydraulic disc brakes, suspension seatpost
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

Build Kit

Frame

Orbea Kemen Top Bar, Hydroformed Alloy 6061

Fork

SR Suntour NVX 80mm Air

Motor

Shimano EP600 (up to 85Nm)

Battery

Orbea Internal 630Wh (optional 252Wh range extender)

Display

Shimano EN500

Rear Derailleur

Shimano CUES U6000 GS Shadow

Shifter

Shimano CUES SL-U6000

Cassette

Shimano CS-LG300 11-48t, 10-Speed

Chain

KMC eGlide

Brakes

Shimano MT200 Hydraulic Disc

Crank

Shimano Steps

Wheels

Alloy, 29-inch, 32H

Tires

Schwalbe Marathon 50-622, reflective

Seatpost

SP05 alloy, 31.6mm, suspension

Saddle

Selle Royal Vivo Ergo

Lighting

Integrated StVZO front and rear

Sizing

Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

XL

187-206 cm (6'2"-6'9")

Frequently Asked

• How fast is the Orbea Kemen TOUR 20? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 630Wh battery, plus an optional 252Wh range extender.
• …
