Orbea Urrun 30 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

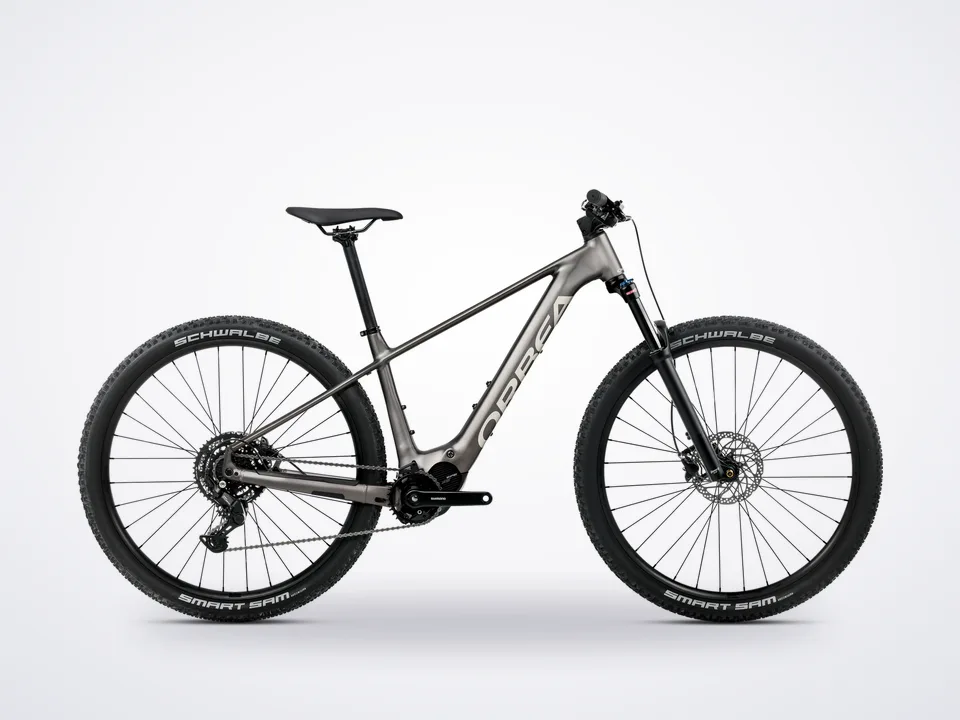

The 2027 Orbea Urrun 30 is the most accessible way into a full-power electric trail hardtail - strong torque, easy handling, and durable, low-maintenance simplicity. Built on Orbea's aluminum Urrun frame with a 120mm fork and powered by Shimano's EP600 motor with an integrated 540Wh battery, it delivers confident full-power assistance and a friendly entry price for new trail eMTB riders.
Show full description and specs
Shimano EP600 Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque and 500W of peak power with smooth, quiet, natural-feeling support, so the Urrun 30 climbs confidently and extends your range on every ride. The integrated 540Wh battery balances range and weight, and as a Class 1, 20mph pedal-assist eMTB it's trail-legal wherever Class 1 ebikes are allowed.
Easy-Riding Trail Hardtail, 120mm Travel
With 120mm of front travel from an SR Suntour XCR32 fork and Orbea's aluminum Urrun frame, the Urrun 30 is a comfortable, capable trail hardtail. Modern trail geometry and 29" wheels roll over obstacles and keep you stable and confident, while the hardtail rear keeps the bike efficient and easy to maintain.
Dependable Shimano CUES Build
The Urrun 30 runs Shimano's 9-speed CUES U4000 drivetrain, Shimano MT201 hydraulic disc brakes, 29" WH23 tubeless wheels, and grippy Schwalbe Smart Sam tires - a dependable, easy-to-own build ready to ride out of the shop.
Available in three colorways: Magnetic Bronze (Matt) / Silver (Gloss), Tanzanite / Blue (Gloss), and Mars Red (Matt) / Cosmic Bronze (Gloss) - in sizes S-XL.
Key Features
- Shimano EP600 motor (up to 85Nm, 500W peak) with integrated 540Wh battery
- Class 1 / 20mph pedal-assist eMTB
- 120mm front travel trail hardtail
- SR Suntour XCR32 fork
- Aluminum Orbea Urrun frame, 29" wheels
- Shimano CUES U4000 9-speed drivetrain
- Shimano MT201 hydraulic disc brakes
- WH23 alloy tubeless 29" wheels
- Schwalbe Smart Sam 29x2.35 tires
- SP03 alloy seatpost
Build Kit
- Frame
- Orbea Urrun, Aluminum, 29"
- Fork
- SR Suntour XCR32 LO Coil, 120mm, Q15x110 Boost
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 540Wh
- Display
- Shimano EN500
- Charger
- Orbea 2nd-Generation eBike Smart Charger 42V/2-4A
- Crank
- Shimano EN500
- Rear Derailleur
- Shimano CUES U4000 GS Shadow (9-Speed)
- Shifter
- Shimano CUES SL-U4000
- Cassette
- Shimano CS-LG300 11-46t 9-Speed
- Chain
- Shimano LG500
- Brakes
- Shimano MT201 Hydraulic Disc
- Stem
- OC Mountain Control MC21, 0º
- Handlebar
- OC Mountain Control MC31, Rise 20, Width 800
- Wheels
- WH23 Alloy Tubeless, 29", 30c, 32H
- Tires
- Schwalbe Smart Sam Performance, 29x2.35, Addix
- Saddle
- Fortune QF-3091
- Seatpost
- SP03, Alloy, 31.6mm
- Pedals
- VP-537
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-170 cm (4'11"-5'7")
- M: 160-180 cm (5'3"-5'11")
- L: 170-190 cm (5'7"-6'3")
- XL
- 180-200 cm (5'11"-6'7")
Frequently Asked
- How fast is the Orbea Urrun 30? It's a Class 1 eMTB with pedal assist up to 20 mph.
- What motor and battery does it use?…
