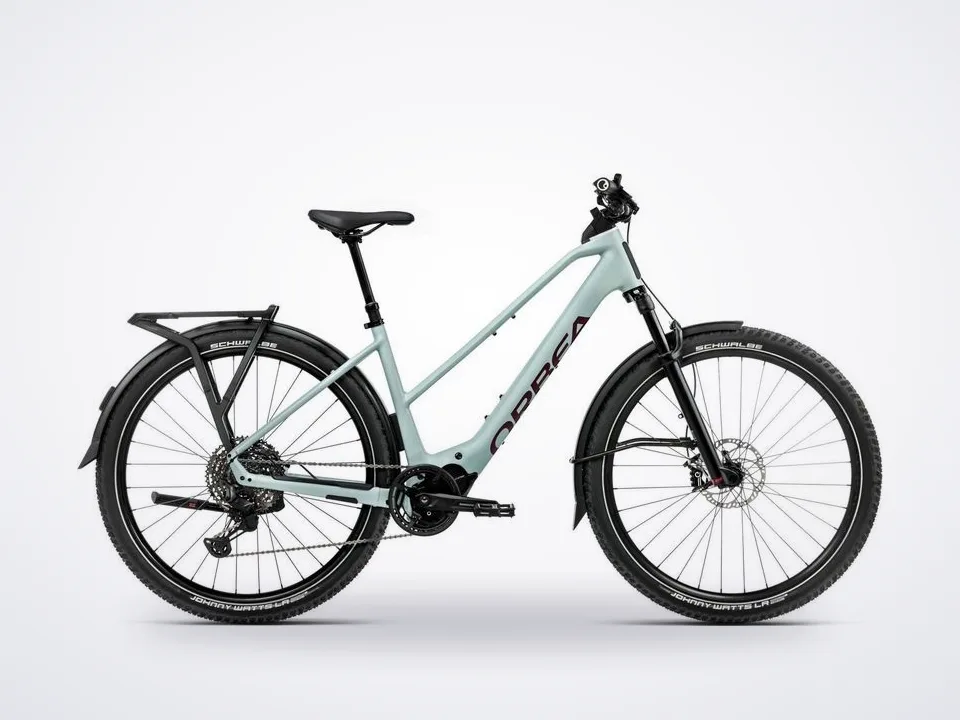

Orbea Kemen ADV 10 MID 28mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Kemen ADV 10 MID is a full-power all-terrain electric SUV bike with a low step-through frame for easy, confident on-and-off - comfortable on the daily commute and capable when the pavement ends. Built on Orbea's aluminum Kemen Mid frame with a 100mm Fox suspension fork and powered by a Shimano EP600 motor with an integrated 630Wh battery, it pairs effortless assistance with adventure-ready capability and fully integrated lighting.
Show full description and specs
Shimano Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or haul a loaded bike with ease. The integrated 630Wh battery uses the latest cell technology to pack big range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen ADV 10 MID keeps pace anywhere.
Trail-Ready Capability
This is the top-tier ADV build: a 100mm Fox 34 Float air fork smooths out rough trails, grippy 29-inch Schwalbe Johnny Watts tires roll fast and hook up off-road, and a dropper seatpost lets you drop the saddle for steep or technical sections. An electronic Shimano CUES Di2 U8050 11-speed drivetrain shifts crisply with a wide 11-50t range.
Step-Through Convenience, Built to Carry
The low Mid-bar frame makes mounting, dismounting and stop-and-go riding effortless. Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen ADV ready for cargo, kids, and everyday duty.
Available in three colorways: Frozen Concrete / Blue Stone, Metallic Rust / Ivory White, and Fuel Black / Titan Grey - in sizes S-L.
Key Features
- Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery (+ optional 252Wh range extender)
- Class 3 / 28mph pedal-assist e-bike
- Aluminum Orbea Kemen Mid (step-through) frame, 29-inch wheels, belt-drive compatible
- Fox 34 Float AWL 100mm suspension fork
- Shimano CUES Di2 U8050 electronic 11-speed drivetrain (11-50t)
- Shimano MT520 hydraulic disc brakes, dropper seatpost
- Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible
Build Kit
- Frame
- Orbea Kemen Mid Bar (step-through), Hydroformed Alloy 6061
- Fork
- Fox 34 Float AWL 100mm
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 630Wh (optional 252Wh range extender)
- Display
- Shimano EN600
- Rear Derailleur
- Shimano CUES Di2 U8050 11-Speed SGS
- Shifter
- Shimano CUES Di2
- Cassette
- Shimano CS-LG400 11-50t, 11-Speed
- Chain
- KMC eGlide
- Brakes
- Shimano MT520 Hydraulic Disc
- Crank
- Shimano Steps
- Wheels
- Alloy, 29-inch, 32H
- Tires
- Schwalbe Johnny Watts LR 60-622, reflective
- Seatpost
- Dropper (Shimano SL-MT500 remote)
- Saddle
- Selle Royal Vivo Ergo
- Lighting
- Integrated StVZO front and rear
- Sizing
- Orbea recommended rider height by size (approximate):
- S:…
