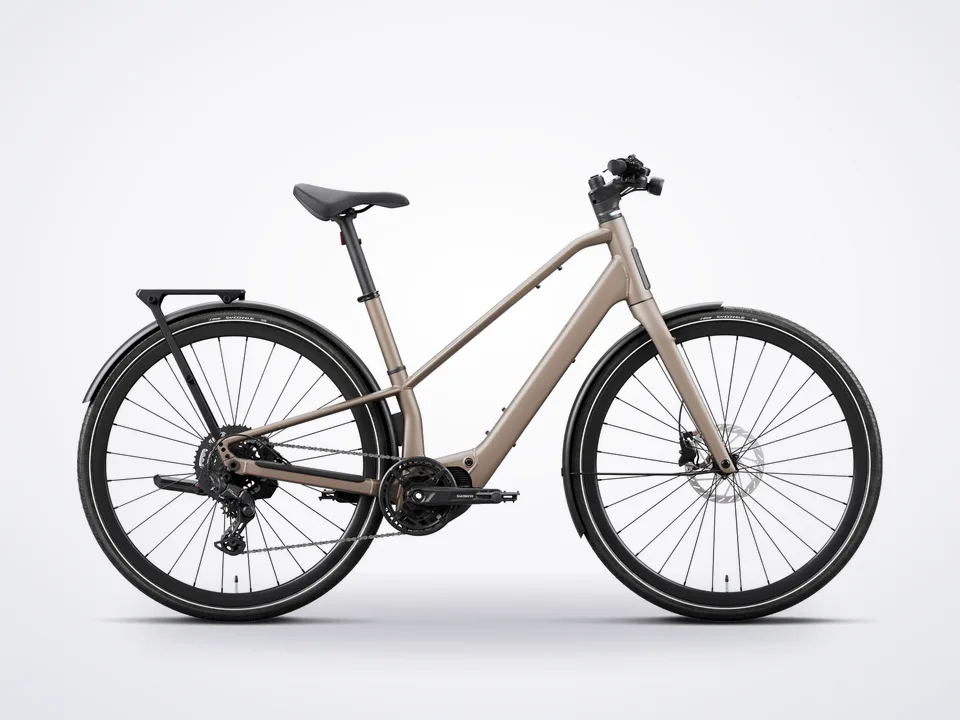

Orbea Carpe 20 28mph

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The integrated 420Wh battery keeps the Carpe light and balanced, and as a Class 3 (28 mph) pedal-assist e-bike it keeps pace with city traffic.

Proven Shimano Gearing

The Carpe 20 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide-range cassette and a tough KMC eGlide chain - simple, durable, and easy to service, with the gear range to handle hills and headwinds.

Built for the Commute

A full-carbon fork takes the sting out of rough roads, while reflective Vittoria Randonneur tires and a fully integrated lighting system keep you seen day and night. An integrated kickstand, light-equipped seatpost and trailer compatibility round out a city bike that just works.

Available in three colorways

Nickel, Mars Red, and Diamond Black - in sizes S-XL.

Key Features

• Shimano EP600 full-power motor (up to 85Nm) with integrated 420Wh battery
• Class 3 / 28mph pedal-assist e-bike
• Hydroformed aluminum Orbea Carpe frame, full-carbon fork
• Shimano CUES U4000 9-speed drivetrain
• Shimano MT200 hydraulic disc brakes
• Integrated front and rear lighting, reflective tires
• Integrated kickstand, trailer compatible

Build Kit

Frame

Orbea Carpe Hydroformed Alloy 6061

Fork

Orbea Carpe full carbon

Motor

Shimano EP600 (up to 85Nm)

Battery

Orbea Internal 420Wh

Display

Shimano EN500

Rear Derailleur

Shimano CUES U4000 GS Shadow

Shifter

Shimano CUES SL-U4000

Cassette

SunRace 11-46t, 9-Speed

Chain

KMC eGlide

Brakes

Shimano MT200 Hydraulic Disc

Crank

Shimano Steps

Wheels

Alloy, 32H

Tires

Vittoria Randonneur 42-622, reflective

Seatpost

SP08 alloy, 31.6mm, with integrated light

Saddle

Selle Royal Vivo Ergo

Lighting

Integrated front and rear

Sizing

Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

XL

187-206 cm (6'2"-6'9")

Frequently Asked

• How fast is the Orbea Carpe 20? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 420Wh battery.
• Chain or belt? The Carpe 20 uses a traditional Shimano CUES 9-speed chain drive for a wide gear range and easy, low-cost servicing.
• How does the Carpe 20 compare to the Carpe 10 and 25? The 10 steps up to a clean electronic Inter-5 Di2 belt drive; the 25 shares the CUES chain drive but rolls on wider Pirelli 45c all-road tires. The 20 is the do-it-all commuter on 42c…
