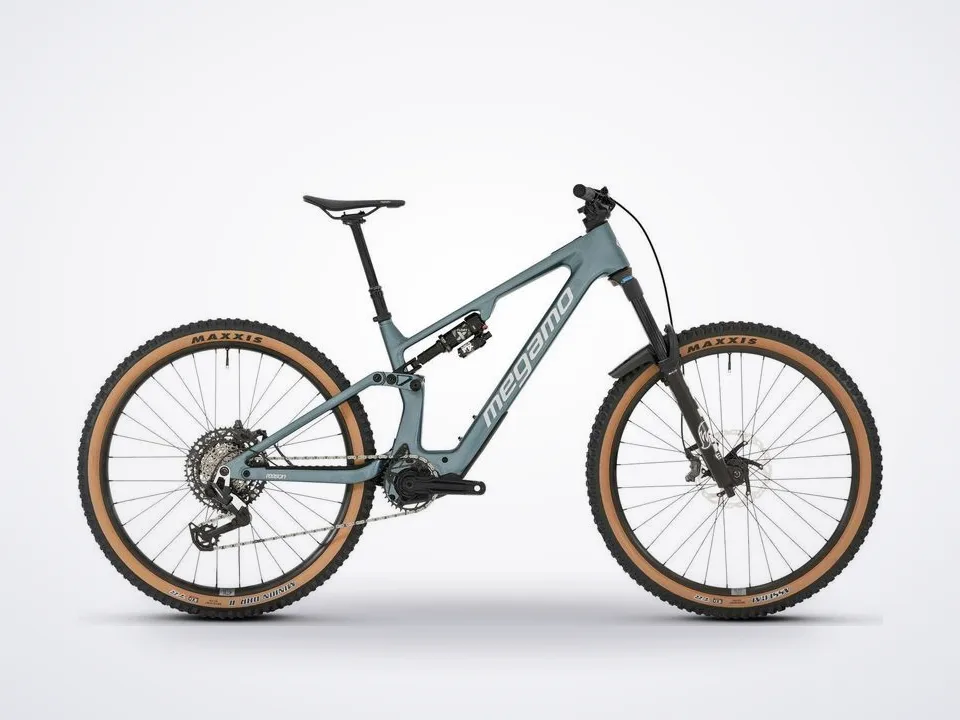

Megamo Reason CRB 05 Avinox Emtb
In stock at 1 shop in Edinburgh
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Designed to offer the perfect balance between reduced weight and high-level performance. Choose between the strength of aluminum or the reactive lightness of carbon. Its adjustable geometry and optimized kinematics ensure agility, control, and efficiency across all types of terrain. Thanks to DJI's Avinox system, you’ll enjoy powerful and smooth assistance, ideal for both demanding climbs and technical descents. A light, precise, and rider-adaptable e-bike.
Show full description and specs
The Reason is redefining the e-bike category with a high-performance frame that´s both lightweight and engineered with unbeatable kinematics. It absorbs vibrations without sacrificing responsiveness and delivers agility, control and precision at all times. Its sleek, integrated design looks just like a muscular bike - no one would guess it's electric, not even up close.
With a Flip Chip system that allows you to adjust the frame’s geometry quick and easy.
Modify the head tube and rear triangle angles to suit your riding style or terrain type.
One frame, four possible configurations.
Maximum versatility for riders who want it all.
Main Features
DJI Avinox M1 motor -120Nm 1000W (Boost mode) / 105Nm 1000W
Reason Full Carbon frame, Boost, 160mm Wheel
Travel Fox 38 Performance fork with 160mm travel
Specification
Frame: Reason Full Carbon Frame, Alloy shock extension, Full Integrated Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
- Fork
- Fox 38 Performance 160mm, Grip, 3 Positions, Rake: 44mm
- Shock
- Fox Float X Performance, 210x55mm, 2 Position
- Headset
- Acros AZA-288R2 ZS56 blocklock 135º
- Motor
- Avinox M2S -150Nm 1300W (Boost mode) / 130Nm 1300W
- Battery
- Avinox 800 Wh, 35.9V, IP56
- Display
- Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326ppi
- Rear Derailleur
- SRAM Eagle 90 T-Type 12s
- Gears
- SRAM Eagle 90 Transmission Shifter 12s
- Chainset
- 36T 104mm BCD / Forged AL6061/T6 165mm beat blasted anodized black
- Cassette
- SRAM XS-1270 Eagle 10-52T
- Brakes
- Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Tyres: Maxxis Front: 29 x 2.5 Assegai DD 3C MaxxGrip - Black, Rear: 29 x 2.4 Minion DHR II DD 3C MaxxTerra - Black
- Wheels
- Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminum rim
- Handlebar
- Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
- Stem
- Satori Ursa 35mm
Seatpost: Megamo Ø 31.6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
- Saddle
- Fizik Terra Aidon X5, 145 mm
