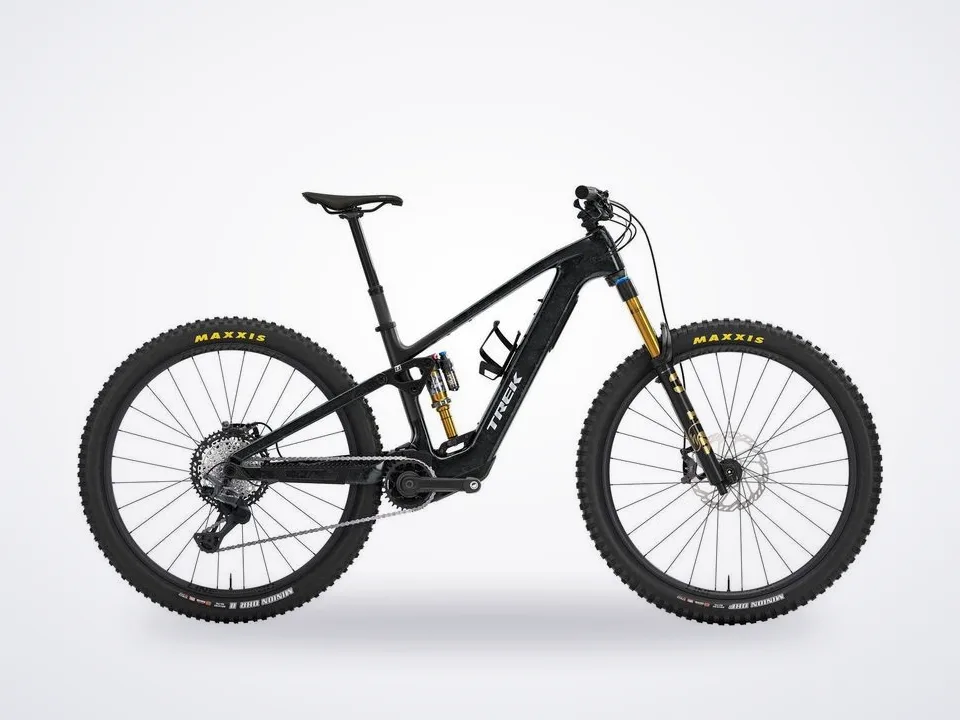

Trek Fuel+ EX 9.8 XT Gen 2
In stock at 2 shops in Edinburgh
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The Fuel+ EX 9.8 XT is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR60 motor, while a Fox Factory suspension package (145 mm rear, 150 mm front) gives you buttery-smooth control through the rough. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8220 brakes provide excellent modulation and stop-on-a-penny power.
Show full description and specs
Technology
Adapt, rip, repeat: Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
Frame: OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo
- Frame Material
- Carbon
- Rim Size
- 29
- Fork
- Fox
Fork: Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel
- Rearsuspension
- Fox
- Suspension Rear
- Fox Factory Float X, 205mm x 60mm
- Wheels
- Bontrager Line Comp 30
Tires: Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, Maxxgrip, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, Maxxterra, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, Maxxterra, folding bead, 29x2.5"
- Shifter
- Shimano
- Derailleur Rear
- Shimano Deore M8200, long cage
- Cassette
- Shimano XT M8200, 10-51, 12-speed
- Chain
- Shimano Ultegra/XT M8100
- Brake
- Shimano
Brakeset: Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc
- Brake Rotor
- Shimano RT-6B750, 6-bolt, 200 mm
- Saddle
- Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
- Handlebar
- Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
- Stem
- Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Grips
- Trek Line Elite, lock-on
- Battery
- TQ 580Wh TQ 580Wh
- Controller
- TQ color LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power
- Size Chart Rider Height
- Rider Height - 177.0 - 188.0
- Size Chart Rider Inseam
- Inseam - 84.0 - 89.0
