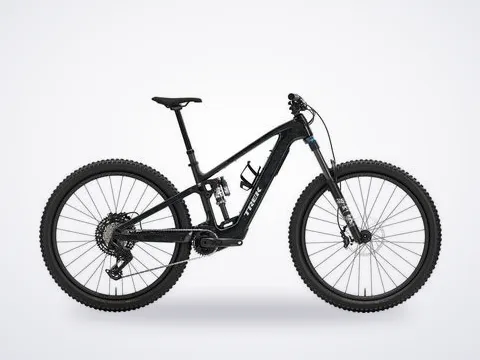

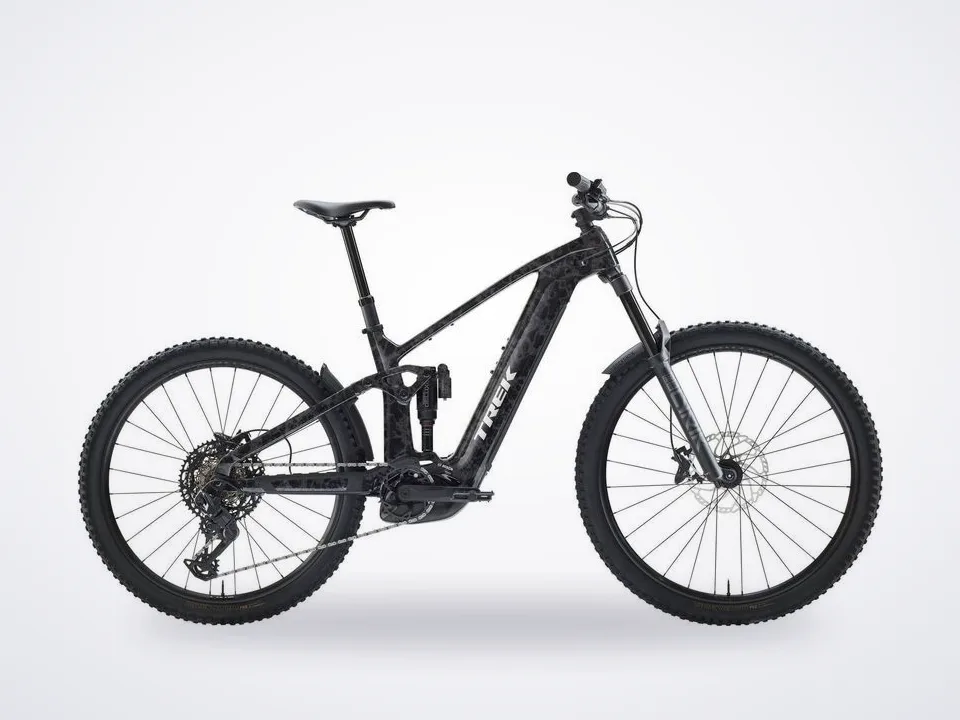

Trek Rail+ 9.7 Gen 5
In stock at 3 shops in Calgary and Edinburgh
Prices and stock checked Oct 22.
Where to buy
3 shopsIn Canada
In the UK
About this bike
The Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. Its rugged OCLV Mountain Carbon frame, with alloy chainstay and seatstay, delivers 160 mm front and rear travel from a RockShox Lyrik fork and Super Deluxe Select+ RT shock, making rowdy lines and root lattices a walk in the park. You get a Shimano XT/SLX drivetrain for 12-speed shifting you can count on, SRAM DB 8 4-piston brakes, a Bontrager Line dropper post and Bontrager Line TLR tubeless-ready wheels for rolling into anything.
Show full description and specs
Technology
Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Specification
Frame: OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel OCLV Mountain C
- Frame Material
- Carbon
- Rim Size
- 27.5
- Fork
- RockShox
Fork: Rockshox Lyrik, Delta RC, DebonAir+, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel RockShox Lyrik, Delta RC, DebonAir+, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160
- Rearsuspension
- RockShox
- Suspension Rear
- RockShox Super Deluxe, Linear XL, 205 mm x 65 mm
Tires: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
- Hub Front
- Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub Rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
Rims: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- Shifter
- SRAM
- Derailleur Rear
- SRAM Eagle 70, T-Type
- Crank
- FSA alloy, 160 mm length // E*thirteen E*spec Race carbon, 165 mm length
- Cassette
- SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Chain
- SRAM Eagle 70, T-Type, 12-speed
- Brake
- Shimano
Brakeset: Shimano MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc Shimano MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc
- Brake Rotor
- Shimano RT66, 6-bolt, 203 mm // Shimano RT66, 6-bolt, 203 mm
- Pedals
- VP-536 nylon platform
- Saddle
- Bontrager Verse P3, steel rails
Seatpost: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Handlebar: Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width // Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width
- Stem
- Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Grips
- Trek Line Elite, lock-on
- Battery
- Bosch PowerTube 800 Wh, smart…
