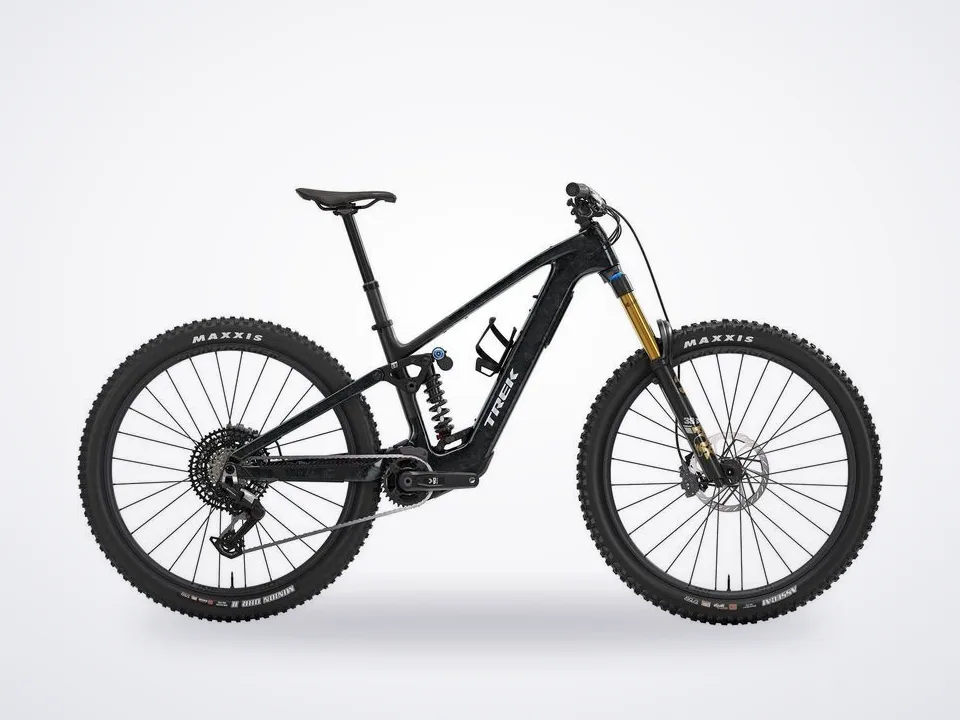

Trek Fuel+ LX 9.8 Eagle 90 Gen 2
In stock at 1 shop in Edinburgh
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Fuel+ LX 9.8 Eagle 90 is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160 mm rear, 170 mm front) keeps you feeling confident in the roughest terrain. A fuss-free SRAM Eagle 90 transmission gives you smooth mechanical shifting and SRAM Maven Bronze 4-piston brakes keep modulation and control on lock.
Show full description and specs
Technology
Adapt, rip, repeat: Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
Frame: OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo
- Frame Material
- Carbon
- Rim Size
- 29
- Fork
- Fox
Fork: Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1
- Rearsuspension
- Fox
- Suspension Rear
- Fox DHX2, 205 mm x 65 mm
- Wheels
- Bontrager Line Comp 30
Tires: Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, Maxxgrip, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, Maxxterra, folding bead, 29x2.5''
- Shifter
- SRAM
- Derailleur Rear
- SRAM Eagle 90, T-Type
- Cassette
- SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
- Chain
- SRAM GX Eagle, T-Type, 12-speed
- Brake
- SRAM
Brakeset: SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc
- Brake Rotor
- SRAM HS2, 6-bolt, 200mm
- Saddle
- Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
- Handlebar
- Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
- Stem
- Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Grips
- Trek Line Elite, lock-on
- Battery
- TQ 580Wh TQ 580Wh
- Controller
- TQ color LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power
- Size Chart Rider Height
- Rider Height - 177.0 - 188.0
- Size Chart Rider Inseam
- Inseam - 84.0 - 89.0
