Giant Trance X 2
In stock at 2 shops in Boulder and Salt Lake City
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike

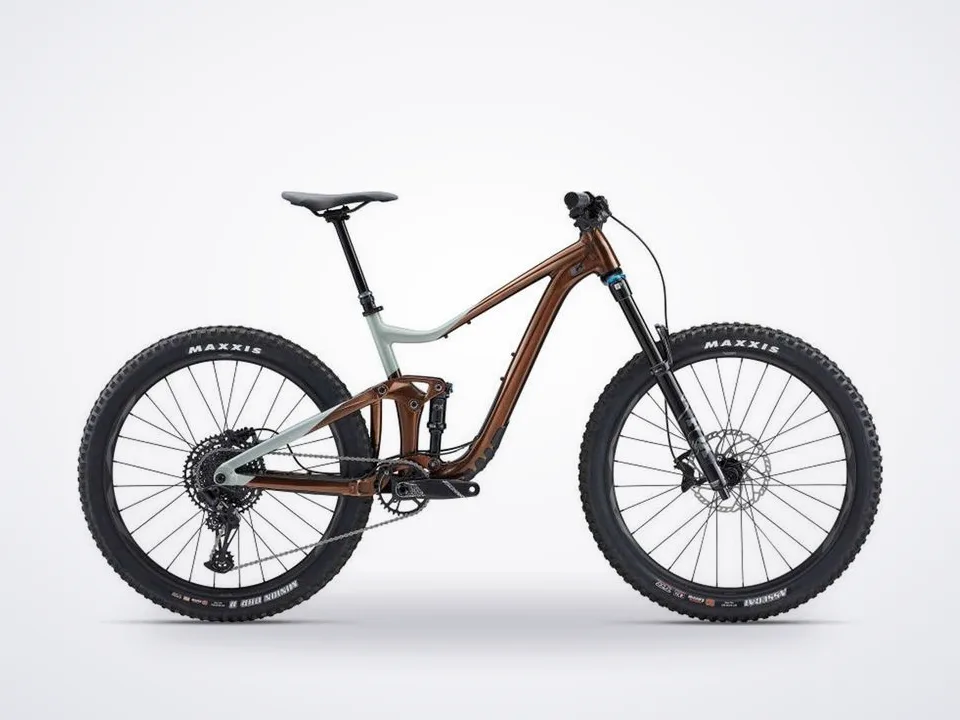

Giant Trance X 2 Trail Bike — 27.5" Wheels • Flip-Chip Geometry
Float through rock gardens, hit the jumps, and find the faster line. Quick-handling 27.5" wheels and adjustable frame geometry make this a lively trail bike. Choose a steeper or slacker head tube angle and a 20 mm or 30 mm bottom-bracket drop with the flip chip. The Aluxx SL aluminum frame runs updated Maestro rear suspension with 145 mm of smooth, active travel; a trunnion-mount shock and Advanced Forged Composite rocker keep traction and control high. Up front, a 160 mm fork boosts confidence.
Show full description and specs
Key Features
- 27.5" wheels for quick, agile handling
- Flip-chip geometry
- steeper/slacker HTA & 20/30 mm BB drop options
- Aluxx SL aluminum frame, Maestro suspension (145 mm rear travel)
- Trunnion-mount shock & Advanced Forged Composite rocker arm
- 160 mm suspension fork for aggressive terrain
Geometry
Values shown as “Setting A | Setting B”.
Specifications
Frame: Aluxx SL-grade aluminum front & rear triangles; 145 mm Maestro suspension; flip chip; 12×148 mm thru-axle
Fork: Fox 36 Rhythm, GRIP damper, 37 mm offset, 160 mm travel, 15×110 Kabolt, custom tuned for Giant
- Rear Shock
- Fox Float DPS Performance, 185/55, custom tuned for Giant
- Rims
- Giant AM 27.5, alloy
- Hubs
- Alloy, sealed bearing
- Spokes
- Sapim
Tires: Front: Maxxis Assegai 27.5×2.6, 3C MaxxTerra, EXO, TR | Rear: Maxxis Minion DHR II 27.5×2.6, 3C MaxxTerra, EXO, TR, tubeless
- Bottom Bracket
- SRAM DUB, press-fit
- Crankset
- Truvativ Descendent 6k Eagle, 32T
- Shifters
- SRAM NX Eagle, 1×12
- Rear Derailleur
- SRAM NX Eagle
- Cassette
- SRAM NX Eagle, 11–50
- Chain
- SRAM GX Eagle
- Brakes
- Shimano Deore BR-MT520 hydraulic
- Rotors
- Shimano RT-66
- Brake Levers
- Shimano Deore BL-MT501
- Handlebar
- Giant Contact TR35, 800×35 mm, 20 mm rise
- Grips
- Giant Tactal Pro Single
- Stem
- Giant Contact SL 35
- Seatpost
- TranzX travel-adjustable dropper, remote
- Saddle
- Giant Romero
- Pedals
- Sold separately
- Accessories & Extras
- Tubeless prepared; 2.6" max tire size; 34T max chainring size
- Specifications are subject to change without notice.
