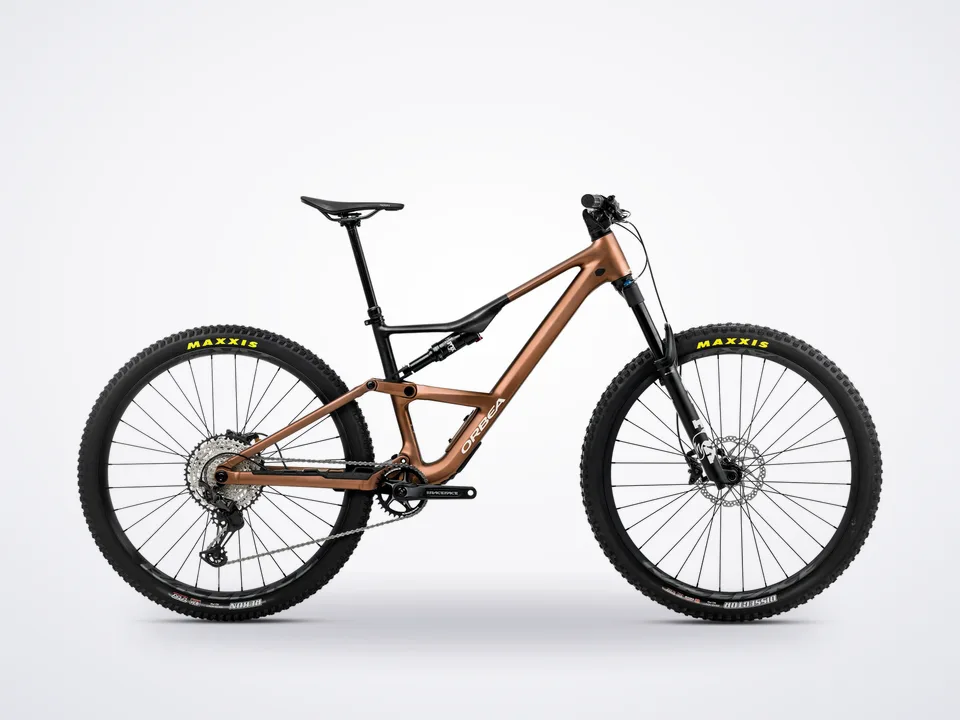

Orbea Occam SL H10
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Occam SL H10 is a short-travel trail full-suspension bike that adds a premium Fox 36 fork and a Shimano XT drivetrain to the capable alloy Occam platform. With Orbea's Concentric suspension, Pure Trail geometry, a dropper post, and 140mm of front travel, the Occam SL H10 climbs eagerly and descends with composure - a do-it-all trail bike for riders who want a sharper build without stepping up to carbon.
Show full description and specs
Concentric Trail Full-Suspension Frame
Orbea's Occam Hydro alloy frame uses the Concentric rear suspension layout and Pure Trail geometry for a balanced, efficient ride that pedals well on climbs and stays composed on the way down. Boost 12x148 spacing, 29" wheels, and a clean asymmetric design round out a capable modern trail platform.
Fox 36 Fork + Squidlock Remote
A 140mm Fox 36 Float SL fork brings big-bike steering precision to the front end, while Orbea's OC Squidlock remote firms up both the fork and rear shock - and drops the seatpost - from a single lever. It's an intuitive way to switch from efficient climbing to full-open descending.
Shimano XT 12-Speed Drivetrain
A Shimano XT M8200 rear derailleur and shifter deliver crisp, precise mechanical shifting across a wide 10-51t range, and Shimano MT600 hydraulic disc brakes add extra stopping power. Race Face AR wheels and a Race Face Aeffect crank sharpen the whole package.
- Available in three colorways
- Cinnamon - Black, Green - Gum, and Tanzanite - in sizes S-XL.
Key Features
- Orbea Occam Hydro alloy frame, Concentric suspension, Pure Trail geometry
- 140mm Fox 36 Float SL fork + Fox Float shock
- OC Squidlock remote (suspension lockout + dropper)
- Dropper seatpost
- Shimano XT M8200 12-speed drivetrain
- Shimano MT600 hydraulic disc brakes
- Race Face AR tubeless-ready 29" wheels
- Maxxis Dissector 2.40" tires, sizes S-XL
Build Kit
- Frame
- Orbea Occam Hydro alloy, Concentric, Boost 12x148, Pure Trail geometry, 29"
- Fork
- Fox 36 Float SL Performance 140mm, Grip, Remote Push-lock, QR15x110
- Shock
- Fox Float Performance, Remote Push-lock, Evol, 210x50mm
- Remote
- OC Squidlock MP11 (suspension + dropper)
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
- Stem
- OC Mountain Control MC21, 0deg
- Handlebar
- OC Mountain Control MC30, Rise 20, 800mm
- Brakes
- Shimano MT600 Hydraulic Disc
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Shifter
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Crankset
- Race Face Aeffect, 32t
- Wheels
- Race Face AR 30c, Tubeless Ready
- Tires
- Maxxis Dissector 2.40" 60TPI Fold Exo TR
- Seatpost
- Dropper post (OC Squidlock controlled)
- Saddle
- Fizik Terra Ridon X5 145mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-165 cm (4'11"-5'5")
- M: 165-177 cm (5'5"-5'10")
- L: 177-188 cm (5'10"-6'2")
- XL
- 186-198 cm (6'1"-6'6")
Frequently Asked
- Is the Occam SL a trail bike? Yes - it's a short-travel full-suspension trail bike with Orbea's Concentric suspension and Pure…
