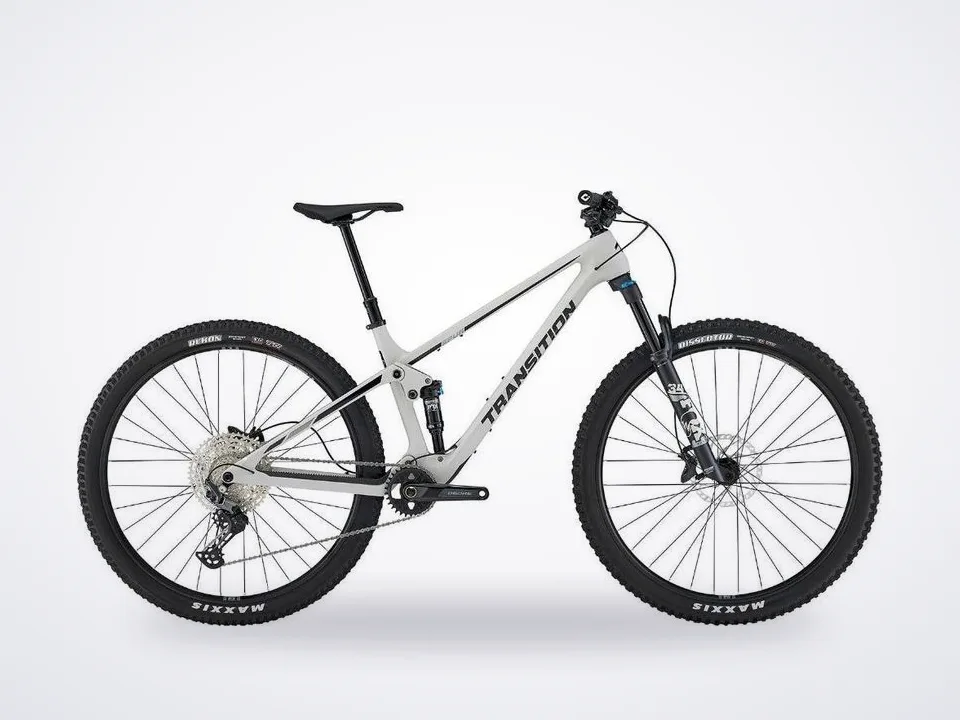

Transition Spur Carbon Deore
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The All-Country Bike
Explore more. Climb farther. Descend with confidence.
The Spur feels like an extension of your body on the trail. Light, fast, and incredibly efficient, it delivers an almost anti-gravity ride with laser-sharp precision.
Every pedal stroke and pump rewards you with free speed, while SBG Geometry keeps you composed through roots, rocks, and switchbacks. Despite its lightweight, uphill-focused personality, the Spur needs zero adjustment when it’s time to descend — and you may even find yourself going faster than expected.
Show full description and specs
Don’t judge it by its cover. This bike is built to climb all day and charge on the way down.
Specifications
- Frame Material
- Carbon Fiber
Frame Details: Japanese Toray front & rear triangles; 24T / 30T / 40T blend; EPS molding; molded chainstay & downtube protection
- Rear Travel
- 120mm
- Rear Shock
- FOX Float DPS Performance, 190×45mm
- Fork
- FOX Float 34 Rhythm, 44mm offset
- Fork Travel
- 120mm
- Head Tube
- Tapered 1.125"–1.5"
- Headset
- FSA No.57E (ZS44 / ZS56)
- Handlebar
- Race Face Aeffect R, 780mm, 20mm rise
- Stem
- Race Face Aeffect R, 40mm
- Grips
- ODI Elite Flow, lock-on
- Brakes
- Shimano Deore M6120 4-piston
- Brake Rotors
- Shimano RT66, 180mm
- Brake Levers
- Shimano Deore M6100
- Drivetrain
- 1×12
- Shifter
- Shimano Deore M6100, I-SPEC EV
- Front Derailleur
- None
- Rear Derailleur
- Shimano Deore M6100, SGS cage
- Cranks
- Shimano Deore M6100, 170mm
- Chainring
- 30T
- Bottom Bracket
- SRAM DUB, 73mm BSA threaded
- Chain
- Shimano Deore M6100
- Cassette
- Shimano Deore 10–51T, 12-speed
- ISCG Tabs
- ISCG05 (top/front 2 only)
- Chainguide
- None
- Rims
- WTB ST i27, 27mm internal
- Hubs
- Novatec D791SB (110×15) front / D902SB (148×12) rear, Micro Spline
- Spokes
- Pillar double-butted
Tires: Front: Maxxis Dissector 29×2.4" 3C MaxxTerra EXORear: Maxxis Rekon 29×2.4" 3C MaxxTerra EXO
- Saddle
- SDG Bel-Air V3
- Seatpost
- OneUp Dropper — 150mm (SM), 180mm (MD), 210mm (LG), 240mm (XL)
- Seatpost Diameter
- 31.6mm
- Seatpost Clamp
- 37.0mm single bolt
- Hub Spacing
- 12×148mm Boost
- Max Tire Size
- 29×2.4"
- Bottle Mounts
- 1 inside main triangle, 1 under downtube; accessory mounts under top tube
Miscellaneous: Internal routing w/ guide tubes; external rear brake hose; UDH; includes valves & sealant
- Frame Weight
- 5.4 lbs (MD, with shock)
- Warranty
- Lifetime frame
