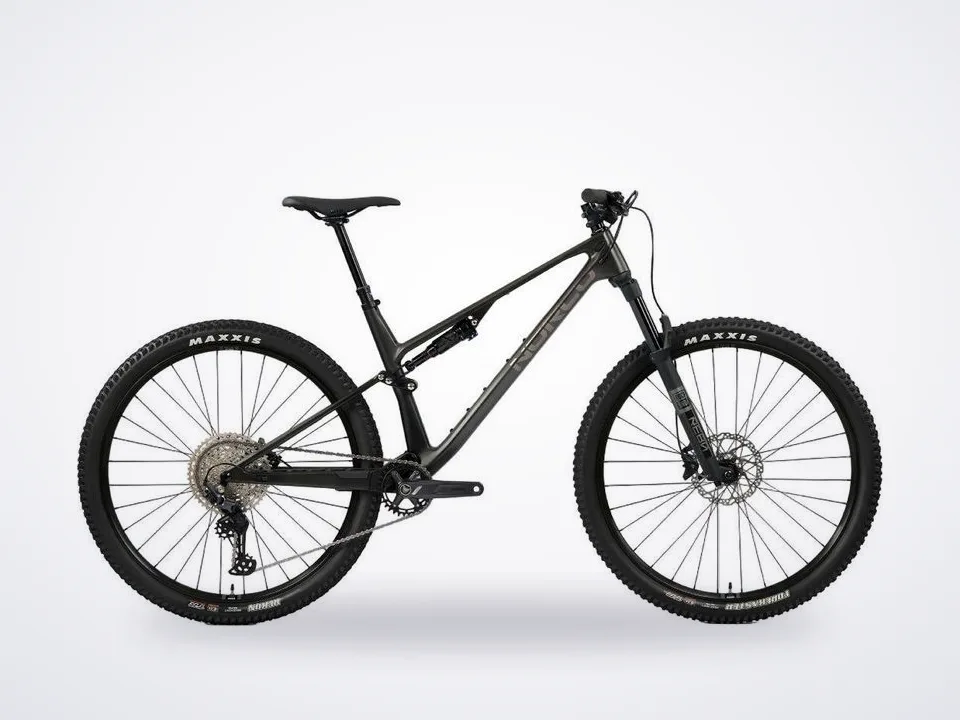

Norco Revolver FS C3 130
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Revolver C3 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.
Efficient where it counts, aggressive where it matters.
Show full description and specs
The Revolver C3 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
Details
- Precision and control for all-day efficiency
- All the suspension performance without the weight.
- Customized suspension development to support Revolver's best attributes.
- A lightweight frame that encourages putting the hammer down.
- Balanced weight distribution for top-of-class ride feel across sizes.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
Specifications
- Frame
- Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
- Fork
- Rockshox Reba RL, Motion Control, 130mm, 44mm offset
- Rear Shock
- Rockshox SID LUX Select +, 190x45mm, standard
- Rear Shifter
- Shimano Deore SL-M6100, 12-speed
- Rear Derailleur
- Shimano Deore RD-M6100, 12-speed, SGS
- Crankset
- Shimano Deore FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2, S3), 175mm (S4, S5)
- Bottom Bracket
- Shimano BB-MT501, BSA 73mm
- Cassette
- Shimano Deore CS-M6100-12, 10-51T, 12-speed
- Chain
- Shimano Deore CN-M6100-12, 12-speed
- Front Brake
- Shimano Deore MT520, 4-Piston, Resin Pads
- Front Brake Rotor
- Shimano SM-RT64, 180mm, C-lock
- Rear Brake
- Shimano Deore MT520, 4-Piston, Resin Pads
- Rear Brake Rotor
- Shimano SM-RT64, 180mm, C-lock
- Brake Levers
- Shimano Deore MT501
- Handlebar
- Norco 6061, 760mm (S1–S3), 780mm (S4–S5), 20mm rise
- Stem
- Norco 6061, 50mm, 35mm Clamp
- Seatpost
- TranzX YSI36, 31.6mm, 120mm (S1, S2), 150mm (S3), 170mm (S4), 200mm (S5)
- Headset
- FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
- Saddle
- WTB Silverado Medium
- Grips
- WTB Wavelength
- Seatpost Clamp
- Norco bolted, 34.9mm ID
- Front Hub
- Shimano Deore HB-MT410, 15x110mm Boost, 32H, C-lock
- Rear Hub
- Shimano Deore FH-MT510, 12x148 Boost, Microspline, 32H, C-lock
- Rims
- WTB ST i27 TCS, 27mm ID, 32H, 29"
- Front Tire
- Maxxis New Forekaster, EXO, TR, 29x2.40"
- Rear Tire
- Maxxis Rekon, EXO, TR, 29x2.40"
- Rear Hub Skewer
- 148mm x 12mm TA, L174, TL13, M12x1.6
- Spokes/Nipples
- Stainless steel
- Valves
- WTB tubeless valves
- Sealant
- Stans 250ml sealant
- Weight
- 13.64 kg (30 lbs)
