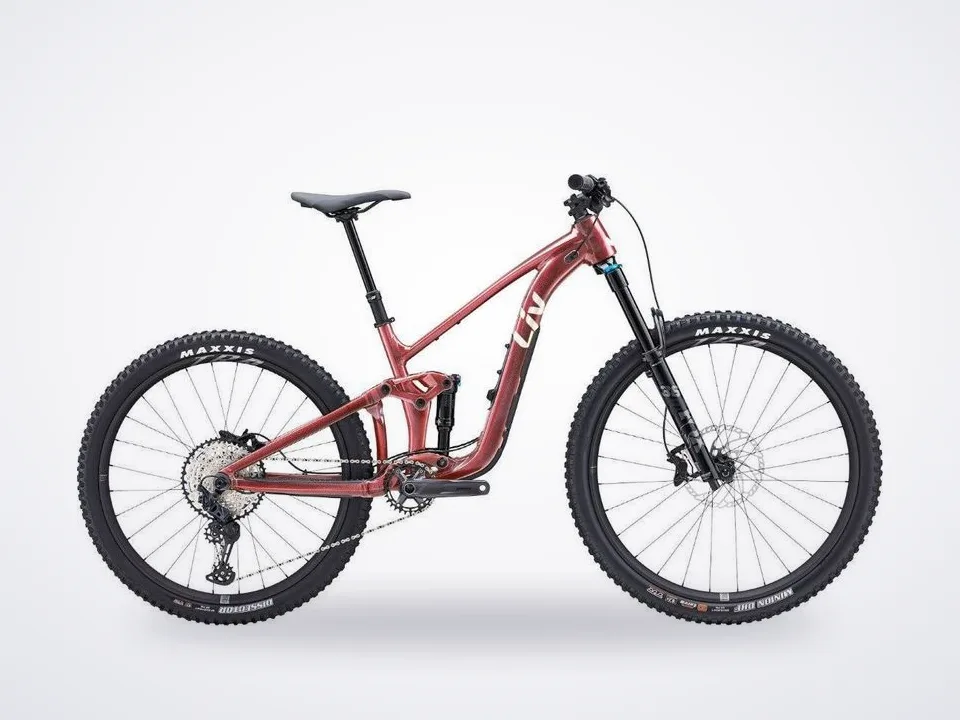

Liv Intrigue X 1 Full Suspension Trail

Performance Mid Travel Trail

Constructed with lightweight and durable Aluxx SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

Adjustable Frame Geometry

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

Technical Specifictions

• Sizes

Xs, S, M, L

• Colours

Desert Dawn

• Frame

Aluxx SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage

• Fork

Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset

• Shock

Fox Float Performance, 185x52.5, custom tuned for Liv

• Handlebar

Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm

• Grips

Liv Tactal Pro single lock-on

• Stem

Giant Contact SL, 35mm XS

40mm, S: 50mm, M: 50mm, L: 50mm

• Seatpost

"Giant Contact Switch AT, adjustable dropper, remote XS/S: 140-170mm travel / 30.9 x 470mm M/L: 170-200mm travel / 30.9 x 530mm"

• Saddle

Liv Sylvia

• Pedals

N/A

• Shifters

Shimano Deore, 1x12

• Front Derailleur

N/A

• Rear Derailleur

Shimano Deore, Shadow +

• Brakes

Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm

• Brake Levers

Shimano BL-MT401

• Cassette

Shimano Deore M6100, 10x51

• Chain

Kmc…
