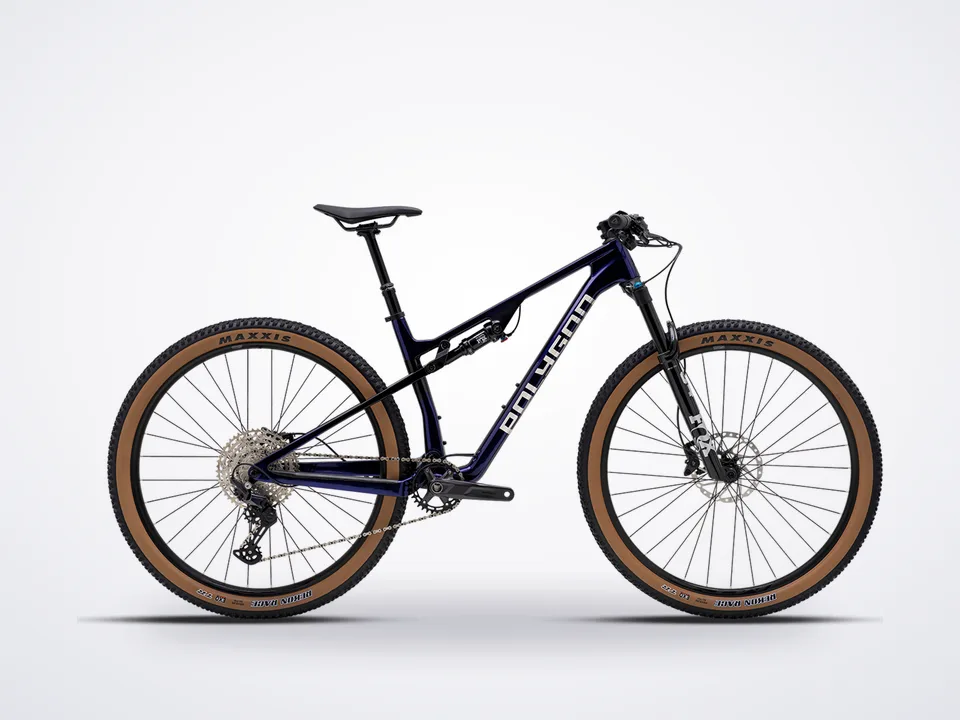

Polygon Syncline DR6 CB
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Description
- Syncline Dr
- Modern XC Design Ready for Riding & Racing
Cross-Country | 120mm/110mm Travel | ACX Carbon | 29" Wheels
Cross-country riding has evolved, and the Syncline DR is our definitive response. By pairing a featherweight ACX carbon construction with aggressive, gravity-influenced geometry, we've created a modern evolution of the XC race bike.
Designed for the new era of technical courses and high-speed down-country riding, the Syncline DR is fast, light and incredibly capable.Technical Specifications
Show full description and specs
Frameset: • Frameset: ACX XC 110mm Travel, • Fork: FOX 34 SL Performance Series 120mm Travel, • Rear Shock: FOX Float SL Performance Elite Series, E2E: 165x40mm, • Size: S, M, L, XL
- Frame Color
- Dark Metalic Blue
- Decal Color
- White
Drivetrain: • Shifter: Shimano Deore M6100, 1x12 Speed, • Crank: Shimano MT512, 32T, • Cassette: Shimano Deore M6100, 10-51T, • Rear Derailleur: Shimano Deore M6100
- BB
- Shimano BSA BB
- Chain
- KMC X-12
- Pedal
- Alloy Flat W/ Replaceable Pin
Cockpit
- Saddle
- Fizik Terra ARGO X7, CR-MO ø 7mm
- Seatpost
- Tranz-X JD-YSP23J 125mm Travel, DxL: 31.6x412mm
- Handlebar
- Polygon Expert, W: 760mm, BB: 31.8mm, R/D: 5mm, B: 9degree
- Handlestem
- Polygon Expert, E: 70mm, BB: 31.8m, R/D: -17degree
- Headset
- FSA NO.69/59/Srs/Dual, IS 52/28.6 | IS 52/40
Wheel & Tire
- Wheel Set
- Polygon MT6 Tubeless Ready
- Wheel Size
- 29"
- Tire
- Maxxis Rekon RACE 29"x2.35"
- Rim
- Alloy Double WALL H:18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL Ready
- Hub: F: Shimano TC-500 Boost 15x110mm 32H CL / R: Shimano TC-500 12x148mm 32H CL FOR Micro Spline
- Spokes: F: 14G Stainless NDS:290mm DS:292mm W/ 12mm Brass Nipple / R: 14G Stainless NDS:294mm DS:292mm W/ 12mm Brass Nipple
Brake: • Brake Lever: Shimano Deore M6100, • Brake Caliper: Shimano Deore Hydraulic DISC, • Rotor: Shimano RT64, R:160mm / F:180mm, Geometry
