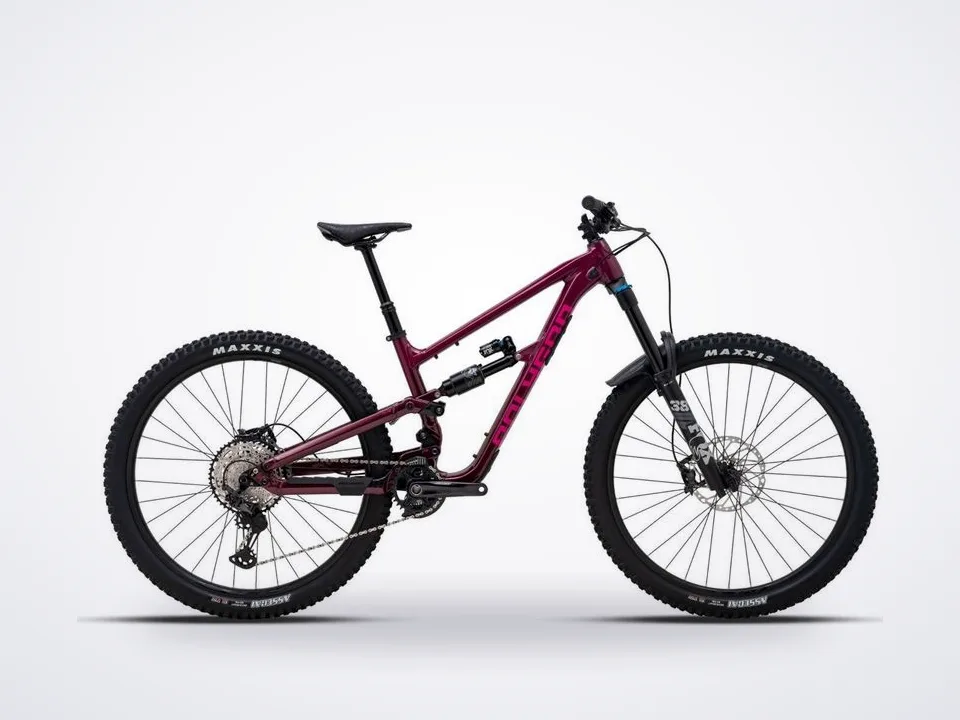

Polygon Collosus N9
In stock at 2 shops in Vancouver
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
Description
- Collosus N
- Enduro, Evolved. Built for Racing, Refined for Riding
Enduro | 170mm Travel | ACX Carbon & ALX Alloy | 29" Wheels
The Polygon Collosus N is our ultimate enduro mountain bike. Developed over two seasons by the PFR team on the EDR circuit, we've refined every detail and link to ensure this long-travel MTB climbs efficiently and descends with total authority.
Show full description and specs
At the heart of the Collosus N is our Independent Floating Suspension (IFS) 6-bar platform, designed to separate braking forces from suspension movement. Combined with a metric shock and modern geometry, our flip-chip dropouts allow you to switch seamlessly between the raw speed of a full 29er or the flickable handling of a mullet setup.Technical Specifications
Frameset: • Frameset: ALX Enduro 170mm Travel, • Fork: FOX 38 Float Performance, AIR Spring, 170mm Travel, Offset: 44mm, W/ Fender, • Rear Shock: FOX Float X2, AIR Spring, 2 Position Adjust, HSC-LSC, HSR-LSR, E2E: 230x65mm, • Frame Color: Burgundy RED
- Decal Color
- Magenta Pink
Drivetrain: • Shifter: Shimano XT SL-M8100-R, 1x12-Speed Trigger, • Crank: Shimano Deore XT FC-M8120, 32T, • Cassette: Shimano SLX CS-M7100, 10-51T, • Rear Derailleur: Shimano XT RD-M8100-SGS
- BB
- Shimano BB-MT501 BSA Threaded
- Chain
- KMC X-12
- Pedal
- Alloy Flat W/ Replaceable Pin
Cockpit
- Saddle
- LINC Xtent, CR-MO ø7mm
- Seatpost: Tranz X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) Travel, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)
- Handlebar
- RACE FACE Chester 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
- Handlestem
- RACE FACE Aeffect R 35, EXT: 40mm, BB: 35mm, R/D: 0degree
- Headset
- FSA NO.57E W/ Sealed Bearing, ZS 44/28.6 | ZS 56/40
Wheel & Tire
- Wheel Set
- Polygon MT6 Tubeless Ready
- Wheel Size
- 29"
- Tire
- Maxxis Assegai 29"x2.5"
- Rim: F: Alloy Double WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL Ready / R: Alloy Double WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL Ready
- Hub: F: Shimano XT HB-M8110-B Boost 15x110mm 32H CL / R: Shimano Deore XT FH-M8110-B Boost 12x148mm 32H CL FOR Micro Spline
- Spokes: F: 14G Stainless NDS:290mm DS:292mm W/ 12mm Brass Nipple / R: 14G Stainless NDS:294mm DS:292mm W/ 12mm Brass Nipple
Brake: • Brake Lever: Shimano XT BL-M8100, • Brake Caliper: Shimano XT Hydraulic DISC, • Rotor: Shimano SM-RT64 203mm, Geometry
