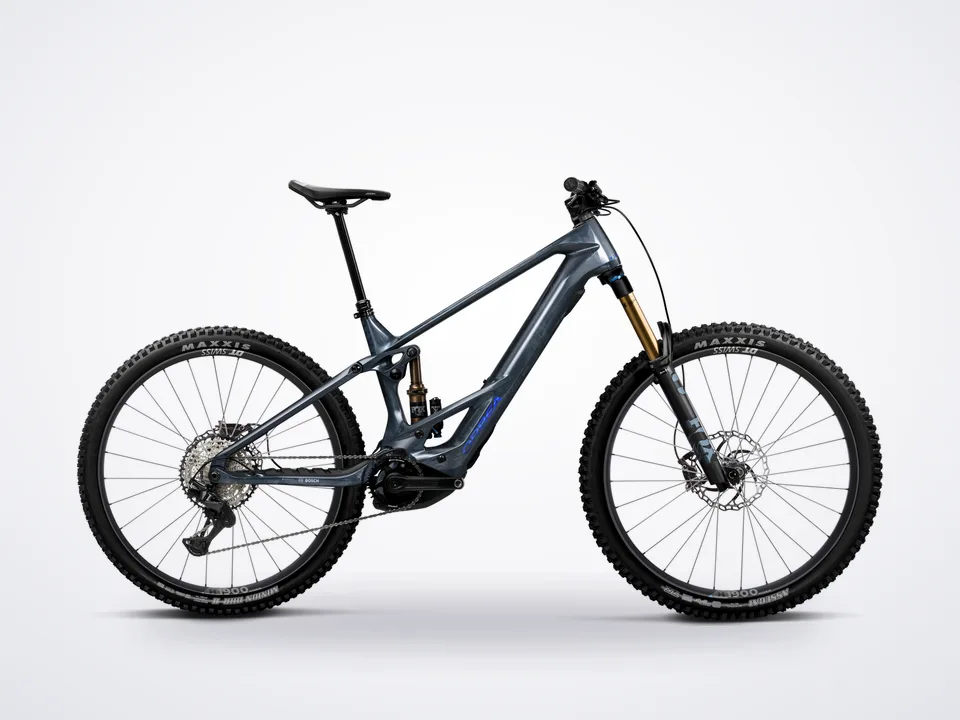

Orbea Wild TR M10 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Wild TR M10 is a full-power electric trail mountain bike built around Orbea's lightweight Wild OMR carbon frame. Powered by the Bosch Performance Line CX motor and a 750Wh PowerTube battery, the Wild TR pairs long-range, high-torque pedal assist with 150mm of trail-tuned travel and full 29" wheels for confident, all-day riding on technical terrain.
Show full description and specs
Bosch Performance CX Power, All-Day Range
The Bosch Performance Line CX (Gen 5) motor delivers smooth, natural assistance and up to 120Nm of torque for steep, technical climbs, while the integrated 750Wh PowerTube battery and full-color Bosch Kiox 400C display give you the range and ride data to go bigger and stay out longer. An optional 250Wh Range Extender pushes total capacity to 1000Wh. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.
Lightweight OMR Carbon, 150mm Trail Travel
Orbea's Wild OMR carbon frame trims weight and adds stiffness for a livelier, more precise ride. With 150mm of travel from a Fox 36 Float Factory fork with Kashima coat and a Fox Float X Factory shock and big 29" wheels, the M10 climbs efficiently and stays composed on fast, rough descents.
Trail-Ready Build
Shimano XT M8200 12-speed shifting, 4-piston Shimano XT 8220 hydraulic disc brakes, grippy Maxxis Assegai 2.5" MaxxGrip tires, DT Swiss H1900 Spline tubeless-ready wheels, and a dropper-ready cockpit mean it's ready to ride hard right out of the shop.
Available in 4 colorways: Carbon - Blue, White - Carbon, Rose - Carbon, and MyO custom paint - in sizes S-XL.
Key Features
- Orbea Wild OMR carbon frame
- Bosch Performance Line CX motor (Gen 5, up to 120Nm) with 750Wh PowerTube battery and Bosch Kiox 400C display
- Class 1 / 20mph pedal-assist eMTB
- 150mm travel, full 29" wheels
- Fox 36 Float Factory Kashima fork + Fox Float X Factory shock
- Shimano XT M8200 12-speed drivetrain
- Maxxis Assegai 2.5" MaxxGrip tires, Shimano XT 8220 4-piston brakes
- DT Swiss H1900 Spline tubeless-ready wheels
- Dropper-ready cockpit (Shimano SL-MT500 lever included)
Build Kit
- Frame
- Orbea Wild OMR Carbon, 29" Wheels, Concentric Boost 12x148
- Fork
- Fox 36 Float Factory, GRIP X2, Kashima, 150mm, 15x110
- Rear Shock
- Fox Float X Factory Trunnion 2-Pos Evol LV Custom Tune, 205x57.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
- Motor
- Bosch Performance Line CX (BDU3843)
- Battery
- Bosch PowerTube 750Wh Horizontal
- Display
- Bosch System Module Kiox 400C
- Crank
- e*thirteen Helix Core
- Chainguide
- e*thirteen Bosch CX Gen5 CL55 32-36t
- Shifter
- Shimano Deore M6200 I-Spec EV
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Cassette
- Shimano CS-M7200 10-51T, 12-Speed
- Chain
- Shimano M6100
- Handlebar
- OC Mountain Control MC20 Alu SL, Rise 20mm, Width 800mm
- Stem
- OC Mountain Control MC21, 0°
- Computer Mount
- OC Computer Mount CM-05 (Garmin/Sigma Compatible)
- Brakes
- Shimano XT 8220 4-Piston Hydraulic Disc
- Wheels
- DT Swiss H 1900 Spline 30c, Tubeless Ready
- Tires
- …
