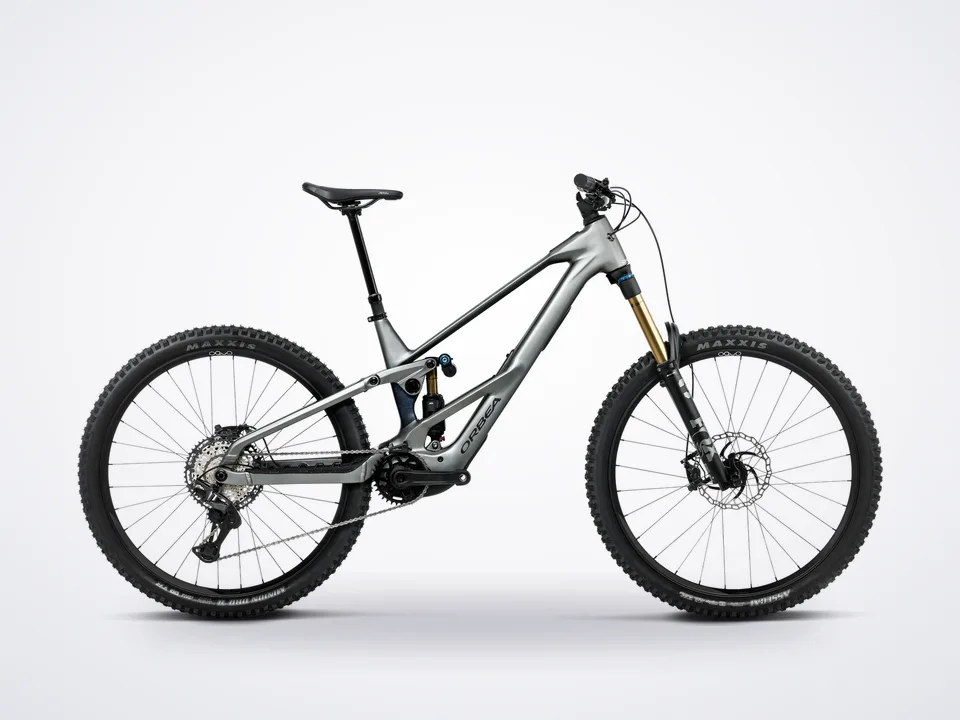

Orbea Wild LT H-TEAM 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Key Features
- DJI Avinox M2S motor with 800Wh integrated battery and DP100 display
- Class 1 / 20mph pedal-assist eMTB
- Full 29" wheels front and rear
- 170mm Fox 38 Factory fork + Fox Float X2 Factory shock
- Orbea Wild Hydro aluminum frame
- Shimano XT M8200 12-speed Di2 drivetrain
- OQUO MC32 Power Team Alloy wheels
- Maxxis Assegai / Minion tires
- Shimano XT M8220 4-piston brakes
The Yes Machine
Nature doesn't like straight lines. It bends and flows, soars and falls. Unlock your instincts. Leave questions of how far or how fast behind. Because whatever question the trail poses, the answer is always yes.
Show full description and specs
Gravity Kinematics
A 170mm fork matched with 170mm rear travel gives Wild LT the balance to perform. Or choose the optional 180mm fork for the most aggressive riding.
Avinox M2S Motor
Our custom RS tuning makes the motor respond faser, giving you a stronger, more immediate punch when you need it most on technical climbs.
High Polish Alloy
Including all of Wild LT's great features on an alloy frame was complicated, but we don't compromise on our alloy frames.
Maximised Ground Clearance
Carefully tuned bottom bracket height and 155mm cranks on all sizes mean you can keep pedaling even on the roughest climbs.
Fully Loaded Pivot
A multitool with 2, 3, 4, and 5mm hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.
Build Kit
- Frame
- Orbea Wild Hydro Aluminum, 29" Wheels, Concentric Boost 12x148
- Fork
- Fox 38 Float Factory 170mm, Grip X2 Damper, Kashima Coating, 15x110 Boost
- Rear Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima Coating, Custom Tune, 205x65mm
- Headset
- Acros ZS56
- Motor
- DJI Avinox M2S
- Battery
- DJI Avinox 800Wh
- Display
- DJI Avinox DP100
- Charger
- DJI Avinox Charger 4A
- Remote
- DJI Avinox BC100
- Crankset
- e*thirteen Helix Core e*spec
- Chainring
- e*thirteen Helix Race e*spec Direct Mount 34T, 55mm Chainline
- Shifter
- Shimano XT M8200 I-Spec EV
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Cassette
- Shimano CS-M8200 10-51T, 12-Speed
- Chain
- Shimano M6100
- Chainguide
- Orbea eBike Chainguide
- Handlebar
- OC Mountain Control MC20 Alu SL, Rise 35mm, Width 800mm
- Stem
- OC Mountain Control MC20, 0°
- Computer Mount
- OC Computer Mount CM-05 (Garmin/Sigma Compatible)
- Brakes
- Shimano XT M8220 Hydraulic Disc
- Rotors
- Galfer Wave 200mm Front / 200mm Rear
- Wheels
- OQUO Mountain Control MC32TEAM Power
- Front Tire
- Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR
- Rear Tire
- Maxxis Minion 29x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR
- Saddle
- Fizik Aidon 208x145mm, Manganese Rails
- Seatpost
- OC Mountain Control MC22 Dropper, 31.6mm
- Seatpost Lever
- Shimano SL-MT500 I-Spec EV
- Grips
- OC Lock-On
- Mudguard
- N/A
- Front Light
- N/A
- Sizing
- Orbea recommends the following sizes based on rider height:
- SM
- 4'11" – 5'9"
- MD
- 5'3" – 6'1"
- LG
- 5'7" – 6'5"
- XL
- 5'11" – 6'9"
