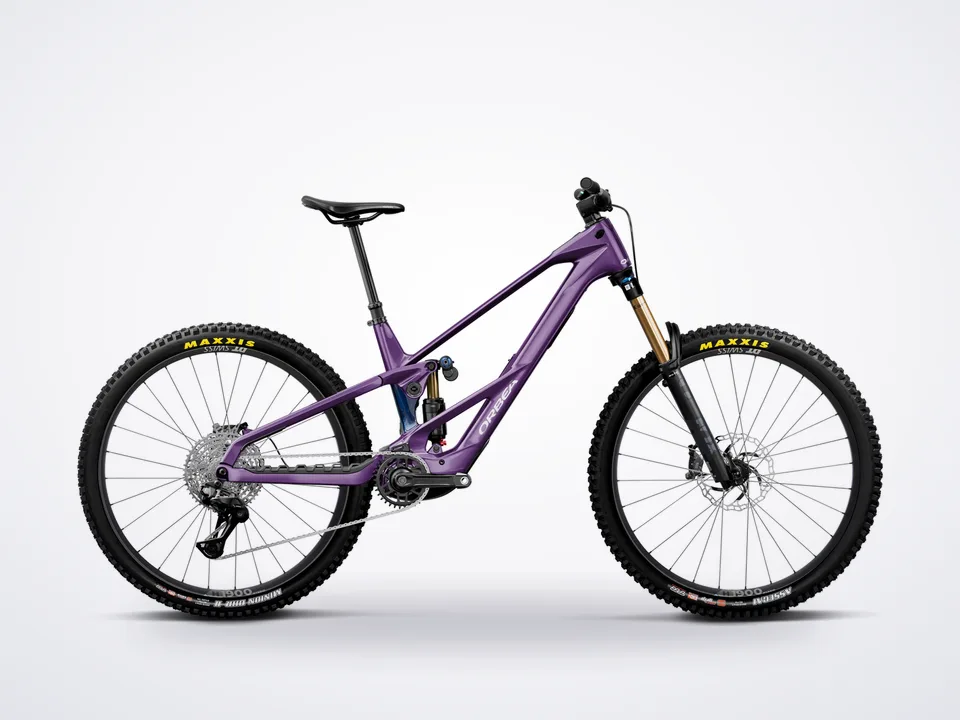

Orbea Wild LT M10 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Key Features
- DJI Avinox M2S motor with 800Wh integrated battery and DP100 display
- Class 1 / 20mph pedal-assist eMTB
- Full 29" wheels front and rear
- 170mm Fox 38 Factory fork + Fox Float X2 Factory shock
- Orbea Wild carbon frame
- Shimano XT M8200 12-speed drivetrain
- DT Swiss H1900 Alloy wheels
- Maxxis Assegai / Minion tires
- Shimano XT 4-piston brakes
The Yes Machine
Nature doesn't like straight lines. It bends and flows, soars and falls. Unlock your instincts. Leave questions of how far or how fast behind. Because whatever question the trail poses, the answer is always yes.
Show full description and specs
OMR Carbon
High modulus, high-strength fibers, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity. The carbon frameset also includes a carbon link which removes further mass higher up in the frame.
Gravity Kinematics
A 170mm fork matched with 170mm rear travel gives Wild LT the balance to perform. or choose the optional 180mm fork for the most aggressive riding.
RS Ecosystem
RS models seamlessly integrate motor control, ride information, and smart dropper functions into one connected system. One battery, one controller, and more control on the trail.
Avinox M2S Motor
Our custom RS tuning makes the motor respond faster, giving you a stronger, more immediate punch when you need it most on technical climbs.
Maximised Ground Clearance
Carefully tuned bottom bracket height and 155mm cranks on all sizes mean you can keep pedaling even on the roughest climbs.
Fully Loaded Pivot
A multitool with 2, 3, 4, and 5mm hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.
Build Kit
- Frame
- Orbea Wild OMR 2027 Carbon, 29" Wheels, Concentric Boost 12x148
- Fork
- Fox 38 Float Factory 170mm, Grip X2 Damper, Kashima Coating, 15x110 Boost
- Rear Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima Coating, Custom Tune, 205x65mm
- Headset
- Acros ZS56
- Motor
- DJI Avinox M2S
- Battery
- DJI Avinox 800Wh
- Display
- DJI Avinox DP100
- Charger
- DJI Avinox Charger 4A
- Remote
- Orbea System Controller Remote
- Crankset
- e*thirteen Helix Race e*spec Direct Mount 34T, 55mm Chainline
- Shifter
- Shimano XT M8200 I-Spec EV
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Cassette
- Shimano CS-M7200 10-51T, 12-Speed
- Chain
- Shimano M6100
- Chainguide
- Orbea eBike Chainguide
- Handlebar
- OC Mountain Control MC21 Alu SL, Rise 35mm, Width 800mm
- Stem
- OC Mountain Control MC20, 0°
- Computer Mount
- OC Computer Mount CM-05 (Garmin/Sigma Compatible)
- Brakes
- Shimano XT M8220 Hydraulic Disc
- Rotors
- Galfer Wave 200mm Front / 200mm Rear
- Wheels
- DT Swiss H 1900 Spline 30c
- Front Tire
- Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR
- Rear Tire
- Maxxis Minion 29x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR
- Saddle
- Fizik Aidon 208x145mm, Manganese Rails
- Seatpost
- OC Mountain Control MC22 Dropper, 31.6mm
- Seatpost Lever
- Shimano SL-MT500…
