Orbea Terra H40 1X
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

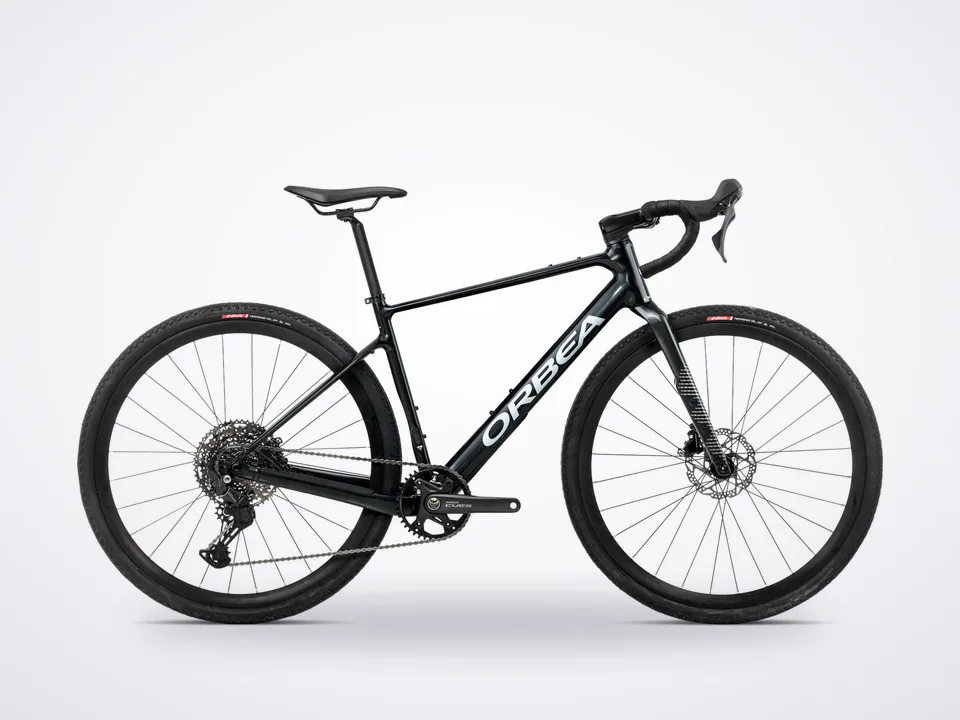

The 2027 Orbea Terra H40 1X is a simple, rugged aluminium gravel bike built around a clutter-free 1x Shimano Cues drivetrain with a wide-range cassette. On the hydroformed triple-butted Terra Hydro alloy frame and full-carbon Terra Race fork, it's made for gravel, bikepacking, and drop-free single-ring riding.
Terra Alloy Frame + Carbon Fork
The hydroformed triple-butted aluminium Terra frame brings gravel-tuned geometry, internal cable routing, a 12x142 thru-axle, fender mounts, and MMS accessory mounts. The full-carbon Terra Race ICR fork keeps the front end light and composed.
Show full description and specs
1x Shimano Cues Drivetrain
A 1x11 Shimano Cues drivetrain with a wide 11-50t cassette gives huge climbing range and a clean cockpit with no front derailleur to manage. Shimano RS405 hydraulic disc brakes deliver dependable all-weather control.
Gravel-Ready Roll
Tubeless-ready 700c alloy wheels and grippy Vittoria Terreno T50 700x40c tires keep the Terra H40 1X sure-footed across loose, technical, and mixed terrain.
Available in three colorways: Diamond Black - Diamond Carbon View, Bumblebee Yellow - Brown, and Ivory White - Metallic Olive Green - in sizes XS-XXL.
Key Features
- Orbea Terra Hydro hydroformed triple-butted alloy frame, 12x142, internal routing, fender + MMS mounts
- Orbea Terra Race ICR full-carbon fork, 12x100
- 1x Shimano Cues drivetrain, wide 11-50t range
- Shimano RS405 hydraulic disc brakes
- Tubeless-ready 700c alloy wheels
- Vittoria Terreno T50 700x40c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra Hydro disc, hydroformed triple-butted aluminium, 12x142, internal routing, 27.2mm post
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RS405 Hydraulic Disc
- Rear Derailleur
- Shimano Cues U6000 GS Shadow
- Shifters
- Shimano U6030
- Cassette
- Shimano CS-LG400 11-50t 11-Speed
- Chain
- Shimano LG500
- Wheels
- Alloy, Tubeless, 700c, 21c
- Tires
- Vittoria Terreno T50 700x40c
- Saddle
- Fizik Terra Argo X7
- Seatpost
- SP 0.2 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31-R
- Stem
- OC Road Performance RP23
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- What's the advantage of 1x? A single front chainring means a simpler, lighter cockpit with no front shifting and less chance of dropped chains - ideal for rough gravel.
- Does 1x have enough range? Yes - the wide 11-50t cassette covers steep climbs and fast descents.
- Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
- Can I add racks, fenders, or bags? Yes - the frame has fender and MMS accessory mounts.
- How does it compare to the standard H40? Same frame and price, but the 1X swaps the 2x11 setup for a single-ring 11-50t drivetrain for simplicity over tighter gearing.
- What's new for 2027?…
