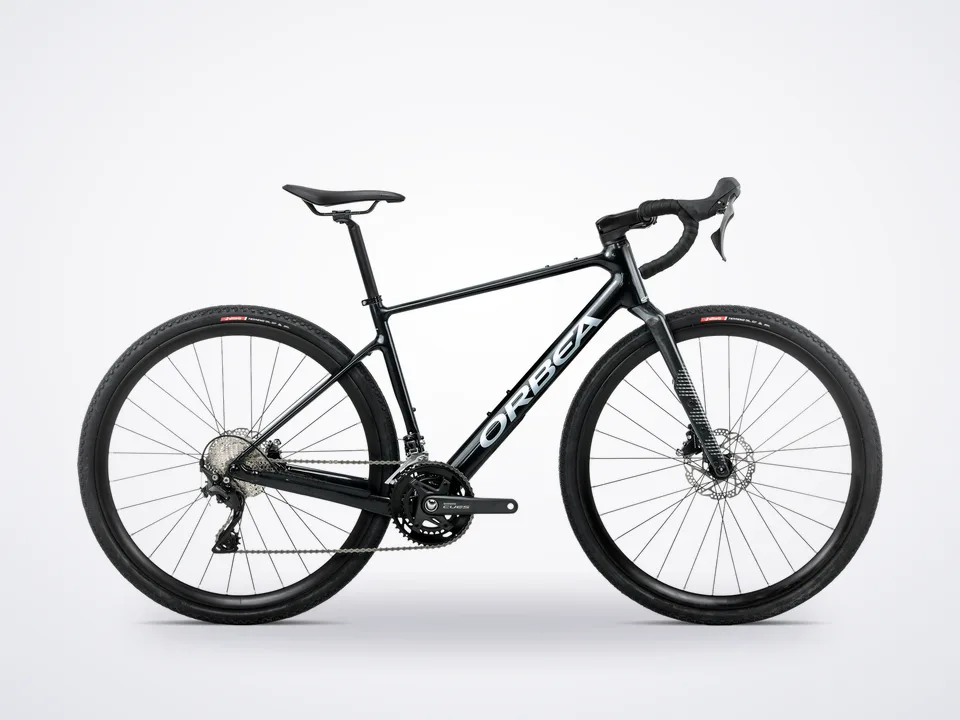

Orbea Terra H40
In stock at 2 shops in Los Angeles and Boston
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The 2027 Orbea Terra H40 is a do-it-all aluminium gravel bike that steps up to an 11-speed Shimano Cues drivetrain for finer gearing and added range. Built on the hydroformed triple-butted Terra Hydro alloy frame with a full-carbon Terra Race fork, it's ready for gravel, all-road, and bikepacking adventures.
Show full description and specs
Terra Alloy Frame + Carbon Fork
The hydroformed triple-butted aluminium Terra frame brings smart gravel geometry, internal cable routing, a 12x142 thru-axle, fender mounts, and MMS accessory mounts for racks, bags, and bottles. The full-carbon Terra Race ICR fork trims weight and smooths rough surfaces.
Shimano Cues 11-Speed Drivetrain
A Shimano Cues 2x11 drivetrain with U6030 shifters and an 11-36t cassette delivers smooth, closely-spaced shifts for varied terrain. Shimano RS405 hydraulic disc brakes provide strong, controlled all-weather stopping.
Gravel-Ready Roll
Tubeless-ready 700c alloy wheels and grippy Vittoria Terreno T50 700x40c tires keep the Terra H40 confident on dirt, gravel, and pavement - a versatile partner for any route.
Available in three colorways: Diamond Black - Diamond Carbon View, Bumblebee Yellow - Brown, and Ivory White - Metallic Olive Green - in sizes XS-XXL.
Key Features
- Orbea Terra Hydro hydroformed triple-butted alloy frame, 12x142, internal routing, fender + MMS mounts
- Orbea Terra Race ICR full-carbon fork, 12x100
- Shimano Cues 2x11 drivetrain, 11-36t range
- Shimano RS405 hydraulic disc brakes
- Tubeless-ready 700c alloy wheels
- Vittoria Terreno T50 700x40c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra Hydro disc, hydroformed triple-butted aluminium, 12x142, internal routing, 27.2mm post
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RS405 Hydraulic Disc
- Rear Derailleur
- Shimano Cues U6040 Shadow
- Shifters
- Shimano U6030
- Cassette
- Shimano CS-RS400 11-36t 11-Speed
- Chain
- Shimano LG500
- Wheels
- Alloy, Tubeless, 700c, 21c
- Tires
- Vittoria Terreno T50 700x40c
- Saddle
- Fizik Terra Argo X7
- Seatpost
- SP 0.2 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31-R
- Stem
- OC Road Performance RP23
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
- Can I add racks, fenders, or bags? Yes - the frame has fender mounts and MMS accessory mounts.
- What tire clearance does it have?
- How does the H40 compare to the H50? The H40 upgrades to an 11-speed Shimano Cues drivetrain with a tighter 11-36t cassette versus the H50's 10-speed.
- What's the difference between the H40 and H40 1X? The H40 1X drops to a single front chainring with a wide 11-50t cassette for simpler, drop-free shifting.
- …
