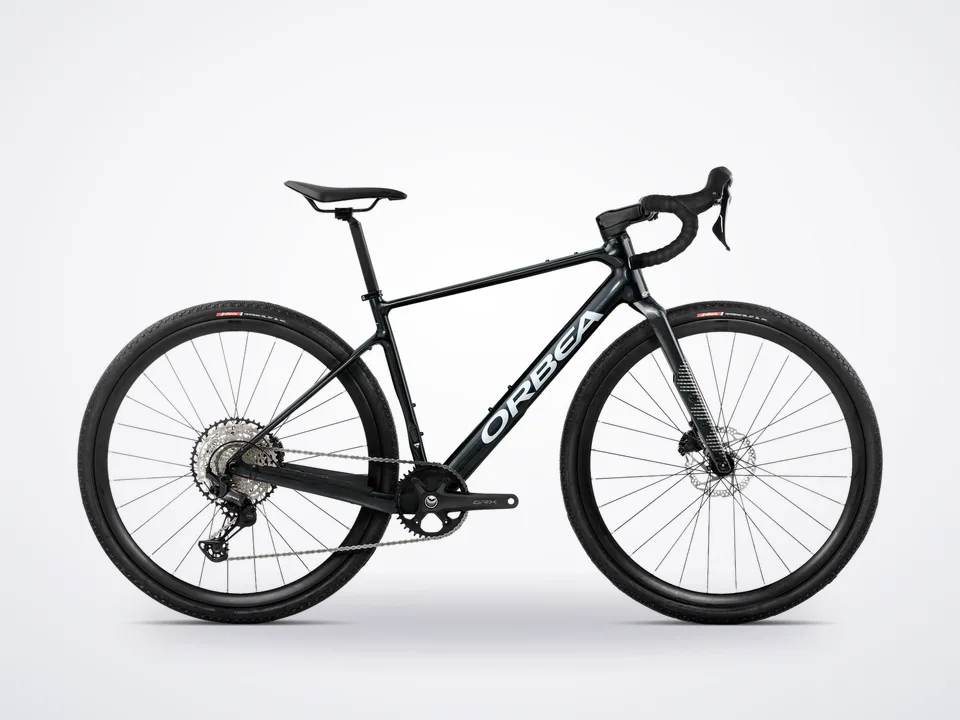

Orbea Terra H30 1X
In stock at 2 shops in Los Angeles and Salt Lake City
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The 2027 Orbea Terra H30 1X pairs Shimano's gravel-specific GRX 12-speed shifting with a clean single-ring setup and a wide 10-51t cassette. Built on the hydroformed triple-butted Terra Hydro alloy frame and full-carbon Terra Race fork, it's a simple, capable gravel and bikepacking machine with huge climbing range.
Terra Alloy Frame + Carbon Fork
The hydroformed triple-butted aluminium Terra frame delivers gravel-tuned geometry, internal cable routing, a 12x142 thru-axle, fender mounts, and MMS accessory mounts. The full-carbon Terra Race ICR fork keeps the front end light and composed.
Show full description and specs
1x Shimano GRX 12-Speed Drivetrain
A 1x12 Shimano GRX RX822 drivetrain with GRX RX610 shifters and a wide 10-51t cassette gives massive gear range with a clean, drop-free single-ring cockpit. GRX-grade hydraulic disc brakes provide strong, modulated control.
Gravel-Ready Roll
Tubeless-ready 700c alloy wheels and grippy Vittoria Terreno T50 700x40c tires keep the Terra H30 1X confident on steep, loose, and technical terrain.
Available in three colorways: Diamond Black - Diamond Carbon View, Bumblebee Yellow - Brown, and Ivory White - Metallic Olive Green - in sizes XS-XXL.
Key Features
- Orbea Terra Hydro hydroformed triple-butted alloy frame, 12x142, internal routing, fender + MMS mounts
- Orbea Terra Race ICR full-carbon fork, 12x100
- 1x12 Shimano GRX RX822 gravel drivetrain, wide 10-51t range
- Shimano GRX hydraulic disc brakes
- Tubeless-ready 700c alloy wheels
- Vittoria Terreno T50 700x40c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra Hydro disc, hydroformed triple-butted aluminium, 12x142, internal routing, 27.2mm post
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RX410 Hydraulic Disc
- Rear Derailleur
- Shimano GRX RX822 SGS
- Shifters
- Shimano GRX RX610
- Cassette
- Shimano CS-M7200 10-51t 12-Speed
- Chain
- Shimano M6100
- Wheels
- Alloy, Tubeless, 700c, 21c
- Tires
- Vittoria Terreno T50 700x40c
- Saddle
- Fizik Terra Argo X7
- Seatpost
- SP 0.2 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31-R
- Stem
- OC Road Performance RP23
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- What's the advantage of 1x? A single front chainring keeps the cockpit clean and drop-free - ideal for rough, technical gravel.
- Does 1x have enough range? Yes - the wide 10-51t cassette handles steep climbs and fast descents.
- What makes GRX better than Cues? GRX is Shimano's gravel-specific groupset with ergonomic levers and tuned 12-speed performance.
- Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
- How does it compare to the standard H30? Same frame, GRX groupset, and price - the 1X swaps the 2x12 for a single-ring 10-51t drivetrain for simplicity and range.
- …
