Orbea Occam SL M10
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

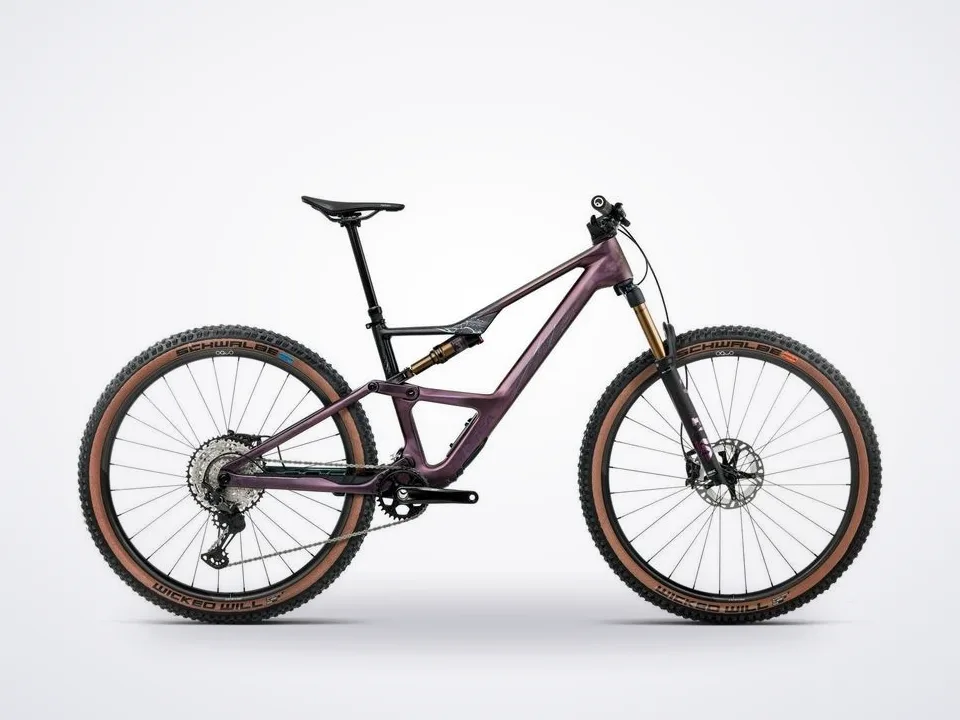

The 2027 Orbea Occam SL M10 is a premium short-travel carbon trail bike that pairs Orbea's lightweight OMR carbon frame with a top-tier Fox Factory Kashima chassis and a full Shimano XT build. With Concentric suspension, Pure Trail geometry, a 140mm Fox 36 Factory fork, Oquo carbon-ready wheels, and a dropper post, the Occam SL M10 climbs eagerly and descends with composure - a fast, refined do-it-all trail bike for riders who want the good stuff.
Show full description and specs
OMR Carbon Concentric Trail Frame
Orbea's Occam OMR carbon frame uses the Concentric rear suspension layout and Pure Trail geometry to deliver a light, stiff, efficient ride that pedals well on climbs and stays planted on descents. Boost 12x148 spacing and 29" wheels round out a modern carbon trail platform.
Fox 36 Factory Kashima + Oquo Wheels
A 140mm Fox 36 Float SL Factory fork with Kashima coating and a matching Fox Float Factory rear shock deliver buttery-smooth, fully-tunable suspension, while lightweight Oquo Mountain Performance MP30TEAM wheels sharpen acceleration and handling. Orbea's OC Squidlock remote firms up both ends - and drops the seatpost - from one lever.
Shimano XT 12-Speed + 4-Piston Brakes
A full Shimano XT M8200 drivetrain delivers crisp, precise shifting across a wide 10-51t range, and Shimano XT 4-piston hydraulic disc brakes provide powerful, confident stopping. A carbon handlebar and alloy SL cockpit keep the front end light and precise.
Available in three colorways: Sunset - Black, White - Nickel, and Green - plus a custom MyO option, in sizes S-XL.
Key Features
- Orbea Occam OMR carbon frame, Concentric suspension, Pure Trail geometry
- 140mm Fox 36 Float SL Factory Kashima fork + Fox Float Factory shock
- OC Squidlock remote (suspension lockout + dropper)
- Dropper seatpost
- Shimano XT M8200 12-speed drivetrain
- Shimano XT 4-piston hydraulic disc brakes
- Oquo Mountain Performance MP30TEAM wheels
- Carbon handlebar, sizes S-XL
Build Kit
- Frame
- Orbea Occam OMR carbon, Concentric, Boost 12x148, Pure Trail geometry, 29"
- Fork
- Fox 36 Float SL Factory 140mm, Grip SL, Remote-Adj Push-lock, Kashima, QR15x110
- Shock
- Fox Float Factory, Remote Push-lock, Evol, Kashima, 210x50mm
- Remote
- OC Squidlock MP11 (suspension + dropper)
- Headset
- Alloy 1-1/2"
- Stem
- OC Mountain Control MC11 Alu SL, 0deg
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 20, 800mm
- Brakes
- Shimano XT 8220 4-Piston Hydraulic Disc
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Shifter
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M7200 10-51t 12-Speed
- Chain
- Shimano M6100
- Crankset
- Shimano XT M8200, 32t
- Wheels
- Oquo Mountain Performance MP30TEAM
- Tires
- Maxxis Dissector 2.40" tubeless ready
- Seatpost
- Dropper post (OC Squidlock controlled)
- Saddle
- Fizik Terra Ridon X5 145mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-165 cm (4'11"-5'5")
- M: 165-177 cm (5'5"-5'10")
- L: 177-188 cm (5'10"-6'2")
- XL
- 186-198 cm (6'1"-6'6")
