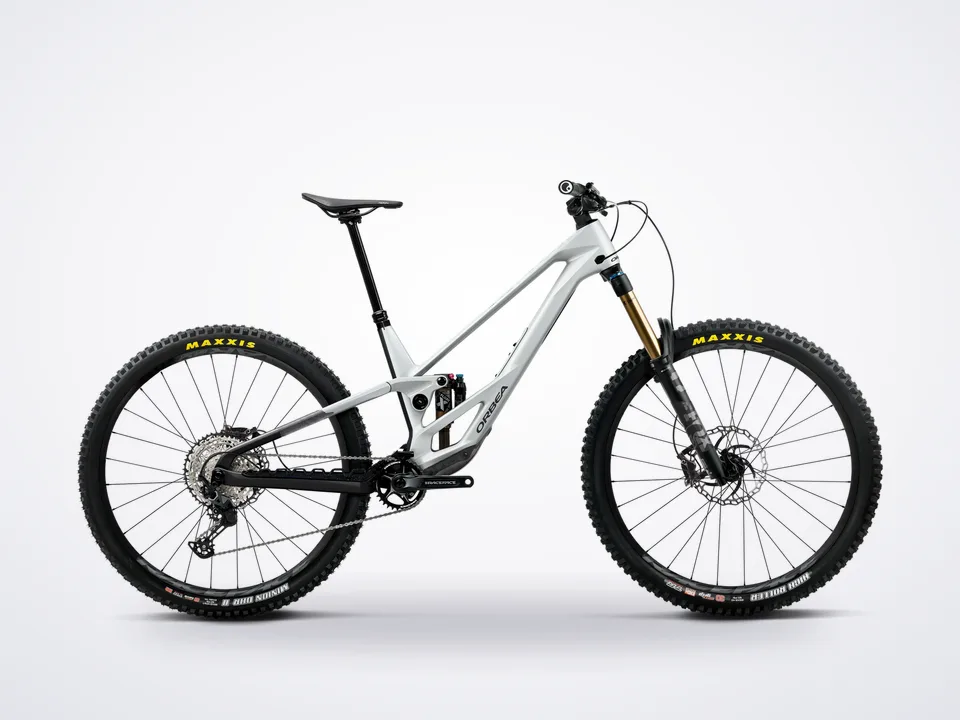

Orbea Rallon E10
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Rallon E10 is an aggressive carbon enduro race bike built to descend at full pace and still pedal to the top. With a 180mm Fox 38 fork, Orbea's Concentric rear suspension, Pure Gravity geometry, and a dropper post, the Rallon E10 is the alloy-value entry into Orbea's gravity range - a hard-charging 29er that's at home on enduro race courses and the steepest, roughest trails.
Show full description and specs
OMR Carbon Enduro Frame
Orbea's Rallon OMR carbon frame uses Pure Gravity geometry, the Concentric rear suspension layout, and an Attitude Adjust flip chip to fine-tune the ride. Boost 12x148 spacing, ISCG05 mounts, 29" wheels, and a 442mm chainstay deliver a planted, confident, race-ready enduro platform.
180mm Fox 38 + Magic Mary Grip
A burly 180mm Fox 38 Float Factory fork with Kashima coating and a Fox Float X Factory rear shock soak up the biggest hits, while aggressive Schwalbe Magic Mary 29x2.50" Ultra Soft tires dig in for maximum traction on steep, loose, technical descents.
Shimano 12-Speed + Dropper
A Shimano Deore M7200 rear derailleur and 12-speed drivetrain deliver dependable shifting across a wide 10-51t range, and Shimano MT620 hydraulic disc brakes provide strong, controlled stopping power. A dropper seatpost gets the saddle out of the way for full-commitment descending.
Available in three colorways: White - Black, Green - Purple, and Nickel - plus a custom MyO option, in sizes S-XL.
Key Features
- Orbea Rallon OMR carbon enduro frame, Pure Gravity geometry, Attitude Adjust
- 442mm chainstay (also offered as a longer-chainstay Rallon 450)
- 180mm Fox 38 Float Factory fork + Fox Float X Factory shock
- Dropper seatpost with Shimano remote
- Shimano Deore M7200 12-speed drivetrain
- Shimano MT620 hydraulic disc brakes
- Schwalbe Magic Mary 29x2.50" Ultra Soft tires
- Race Face AR tubeless-ready wheels, sizes S-XL
Build Kit
- Frame: Orbea Rallon OMR carbon, Pure Gravity geometry, Attitude Adjust, 442mm chainstay, Boost 12x148, ISCG05
- Fork
- Fox 38 Float Factory 180mm, Grip X2, Kashima, 15x110
- Shock
- Fox Float X Factory Trunnion, 2-Pos, Evol LV, Kashima, 205x62.5mm
- Headset
- Alloy 1-1/2"
- Stem
- OC Mountain Control MC21, 0deg
- Handlebar
- OC Mountain Control MC20 Alu SL, Rise 35, 800mm
- Brakes
- Shimano MT620 Hydraulic Disc
- Rear Derailleur
- Shimano Deore M7200 SGS Shadow Plus
- Shifter
- Shimano Deore M6200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Crankset
- Race Face Aeffect, 32t
- Wheels
- Race Face AR 30c, Tubeless Ready
- Tires
- Schwalbe Magic Mary Radial 29x2.50", Gravity Pro, Ultra Soft
- Seatpost
- Dropper post with Shimano SL-MT500 remote
- Saddle
- Fizik Terra Ridon X5 145mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 155-168 cm (5'1"-5'6")
- M: 165-178 cm (5'5"-5'10")
- L: 175-188 cm (5'9"-6'2")
- XL
- 185-198 cm (6'1"-6'6")
Frequently Asked
- What kind of bike is the Rallon? It's an aggressive carbon enduro race bike - 180mm front travel, Pure Gravity geometry, and a Fox…
