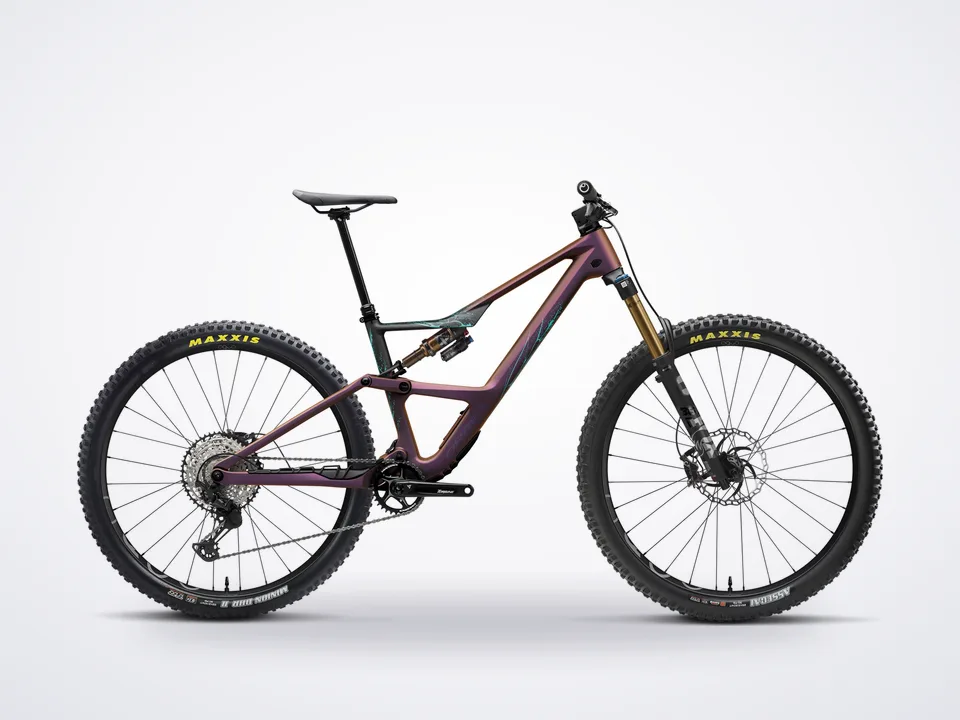

Orbea Occam LT M10
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Occam LT M10 is a premium long-travel carbon trail bike built to charge hard, pairing top-tier Fox Factory Kashima suspension with a full Shimano XT drivetrain and lightweight Oquo wheels. With Concentric rear suspension, aggressive Pure Trail geometry, a 160mm Fox 36 Factory fork, grippy Maxxis Assegai tires, and a dropper post, the Occam LT M10 climbs efficiently and descends like a far bigger bike - a fast, refined all-mountain weapon.
Show full description and specs
OMR Carbon Long-Travel Frame
Orbea's Occam OMR carbon frame uses the Concentric rear suspension layout and Pure Trail geometry, tuned for long travel and aggressive trail riding. The light, stiff carbon chassis with Boost 12x148 spacing and 29" wheels delivers a stable, confident ride that still pedals efficiently.
Fox 36 Factory Kashima + Oquo Wheels
A 160mm Fox 36 Float Factory fork with Kashima coating and Grip X damper, plus a matching Fox Float X Factory rear shock, deliver buttery-smooth, fully-tunable long-travel suspension. Lightweight Oquo Mountain Control MC32TEAM wheels sharpen the handling and acceleration.
Shimano XT 12-Speed + 4-Piston Brakes
A full Shimano XT M8200 drivetrain delivers crisp, precise shifting across a wide 10-51t range, and Shimano XT 4-piston hydraulic disc brakes provide powerful, confident stopping. A carbon handlebar and alloy SL cockpit keep the front end light and precise.
Available in three colorways: Sunset - Black, White - Nickel, and Green - plus a custom MyO option, in sizes S-XL.
Key Features
- Orbea Occam OMR carbon frame, Concentric suspension, Pure Trail geometry
- 160mm Fox 36 Float Factory Kashima fork + Fox Float X Factory shock
- Dropper seatpost with Shimano remote
- Shimano XT M8200 12-speed drivetrain
- Shimano XT 4-piston hydraulic disc brakes
- Oquo Mountain Control MC32TEAM wheels
- Maxxis Assegai 2.50" MaxxGrip tires
- Carbon handlebar, sizes S-XL
Build Kit
- Frame
- Orbea Occam OMR carbon, Concentric, Boost 12x148, Pure Trail geometry, 29"
- Fork
- Fox 36 Float Factory 160mm, Grip X, Kashima, QR15x110
- Shock
- Fox Float X Factory 2-Pos Adjust, Evol LV, Kashima, 210x55mm
- Headset
- Alloy 1-1/2"
- Stem
- OC Mountain Control MC11 Alu SL, 0deg
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 20, 800mm
- Brakes
- Shimano XT 8220 4-Piston Hydraulic Disc
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Shifter
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M7200 10-51t 12-Speed
- Chain
- Shimano M6100
- Crankset
- Shimano XT M8200, 32t
- Wheels
- Oquo Mountain Control MC32TEAM
- Tires
- Maxxis Assegai 2.50" 3C MaxxGrip Exo+ TR
- Seatpost
- Dropper post with Shimano SL-MT500 remote
- Saddle
- Fizik Terra Ridon X5 145mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-165 cm (4'11"-5'5")
- M: 165-177 cm (5'5"-5'10")
- L: 177-188 cm (5'10"-6'2")
- XL
- 186-198 cm (6'1"-6'6")
Frequently Asked
- What kind of bike is the Occam LT? It's a long-travel trail / all-mountain bike - 160mm front travel, Concentric suspension, and…
