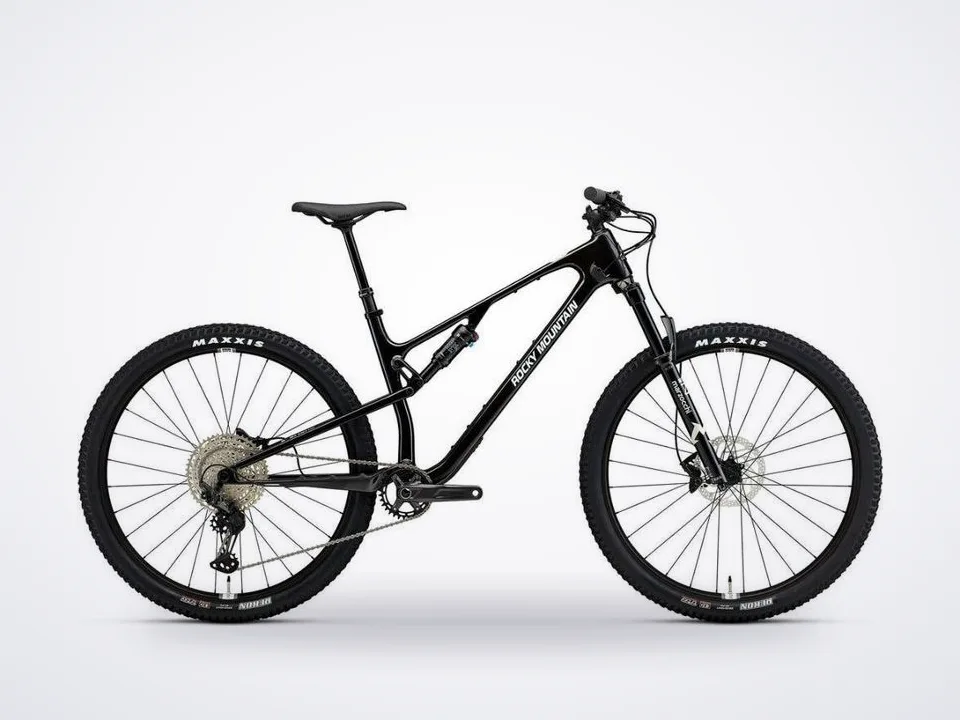

Rocky Mountain Element C30

Not your average pivot design

A new addition to the Element is the Smoothlink SL flex stay. By eliminating the traditional pivot, we’re not only able to shave weight but also increase stiffness in the rear triangle. Lighter and more refined, you can expect the same supreme ride quality of our traditional Smoothlink design that puts the Element ahead of its competitors.

Specifications

Frame: Smoothwall™ Carbon, Smoothlink SL™ Suspension, Full Sealed Cartridge Bearings, Press Fit BB, Internal Cable Routing, RIDE-4™ Adjustable Geometry, 120mm Travel, Smoothwall™ Carbon Rear Triangle

Fork

Marzocchi Z2 Float EVOL Rail 130mm, 44mm Offset

Front Travel

130mm

Shock: Fox Float Performance, Sealed Bearing Eyelet, 20x8mm F Hardware, All Sizes = 190x45mm, Size-Specific Tune (see FAQ)

Rear Travel

120mm

Headset: FSA Orbit NO.57E, Sealed 36°x45° Bearings, 30.2mm x 41mm x 6.5mm Upper, 40mm x 51.8mm x 8.0mm Lower, 1.5" Crown Race

Stem

Rocky Mountain 31.8 XC, 5° Rise, All Sizes = 50mm

Handlebar

Rocky Mountain AM, 760mm Width, 25mm Rise, 9° Backsweep, 5° Upsweep, 31.8 Clamp

Grips

Rocky Mountain Lock On Light

Brakes

Shimano MT4120 4 Piston, Resin Pads

Shifters

Shimano XT

Rear Derailleur

Shimano XT

Cranks & Chainring

Shimano Deore, 32T, 24mm Spindle, Crankarm Length: XS-SM = 165mm, MD-XL = 170mm

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano Deore 10-51T, 12-speed

Chain

Shimano M6100

Front Hub

Shimano TC500, 15mm Boost

Rear Hub

Shimano TC500 Boost, 148mm

Spokes

2.0 Stainless

Rims

WTB KOM Team i27 TCS 2.0, 28H, Tubeless Set Up, Sealant Included

Tires: Maxxis Rekon 2.4 WT EXO Tubeless Ready (Front & Rear), Tubeless Set Up, Sealant Included

Seatpost: X Fusion Manic Composite 30.9mm (XS-SM = 125mm, MD = 150mm, LG = 170mm, XL = 200mm)

Saddle

WTB Silverado Race 142, Steel Rails

Weight

Not available yet; will be updated ASAP

Notes: We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
