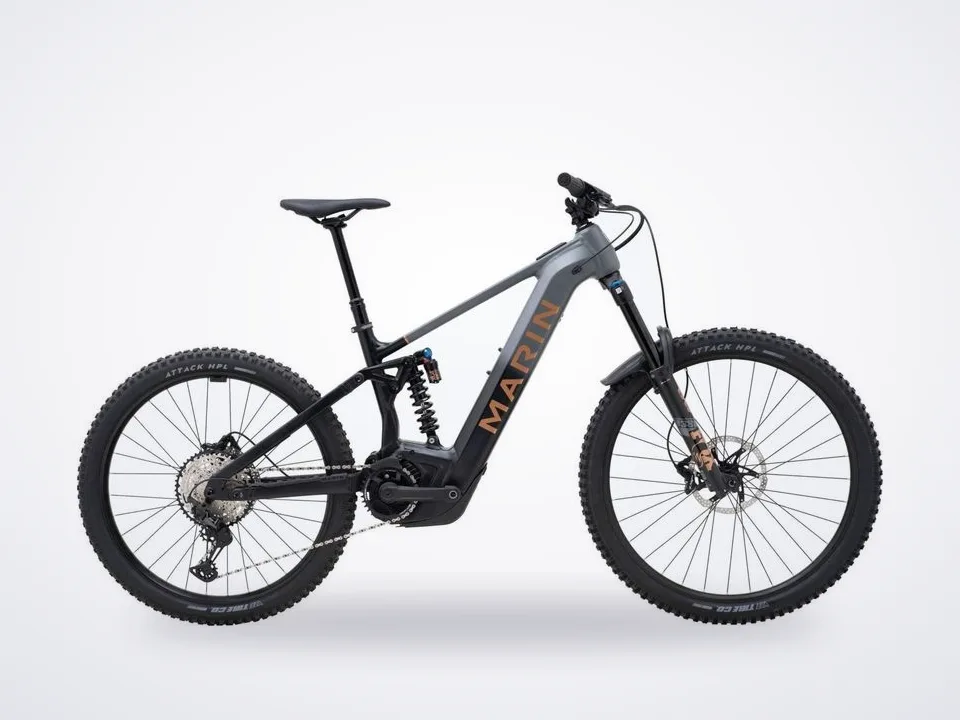

Marin Alpine Trail E2 Bosch

We've increased the travel by 10mm at both ends, now standing at 170mm (f) and 160mm (r), and relocated the pivots to the chainstays to deliver the suspension performance and tunability demanded by the longer travel. Riders have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.

Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.

The Alpine Trail E2 (Bosch) lights the wick with a premium Fox suspension pairing and Shimano's XT 12-speed drivetrain, along with our own proprietary CNC 35mm stem and Trail Bar combo.

• Frame

All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

• Front Suspension

Fox 38 Performance Elite, 170mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

• Rear Suspension

Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 30mmxM8 Lower Mount, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb

• Rim

Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• Hub Rear

Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

• Hub Front

Shimano FH-TC500, 110x15mm, Centerlock, 32H

• Spokes

14g Black Stainless Steel

• Tires

Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"

• Derailleur Rear

Shimano XT 12-Speed, SGS

• Derailleur Front
• •

Shimano SLX 12-Speed, I-Spec EV

• Crankset

E*thirteen e*spec Plus Cranks, 160mm Length

• Motor

Bosch Performance Line CX, 85Nm

• Chain

KMC E12S, E-Bike Specific Chain

• Cassette

Shimano SLX M7100 Cassette, 12-Speed, 10-51T

• Brakes Front

TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick

• Brakes Rear

TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick

• Brake Levers

TRP DH-R EVO Hydraulic

• Handlebar

Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• Stem

Marin CNC, 35mm Length, 35mm Bar Bore

• Grips

Marin Grizzly Lock On

• Headset

FSA Custom Headset, Adjustable HTA Design

• Seatpost

TranzX,…
