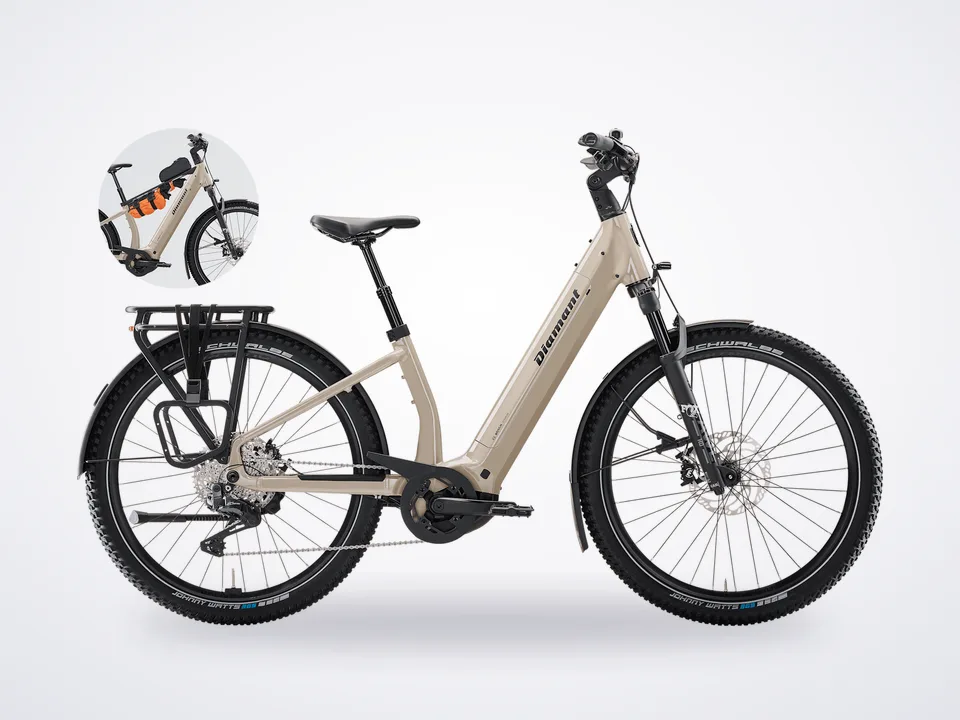

Diamant Suvea Trip Pro
In stock at 1 shop in Edinburgh
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The new Suvea is the ultimate E-SUV. This innovative bike ignites a fireworks display of practical innovations that make the experience on two wheels easier, more comfortable, and safer. The Suvea Trip Pro is ready for the ultimate electrified experience, not shying away from really bad paths, yet it wraps its competence in a reserved, timeless, appropriately slim shell. The versatility of the low-entry frame with the optional Accessory Bar is incomparable.
- Please note
- spec applies to all sizes unless listed separately
Show full description and specs
Frame
High-performance hydroformed alloy, Smart Routing for cables, UDH dropout, belt split, ringlock mount
- Fork
- Fox 36 AWL HD, air spring, Sweep adjust, 100 mm travel
Wheels: Hub front, Shimano TC500 alloy, CentreLock, 110x15 mm thru axle, Hub rear, Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Bontrager Switch thru-axle, removable lever
- Rim
- Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Spokes
- 14 g stainless steel, black
Tyre: Schwalbe Johnny Watts 365, reflective strip, puncture protection, 65-584, E-system
Charger: Bosch standard 4A, 230V, smart system, Controller, Bosch Kiox 500, smart system, Computer
Bosch LED remote, smart system
Motor: Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Drivetrain
- Shifter
- Shimano EN605 Di2, 11-speed
Rear derailleur: Shimano CUES U8050 Di2, 50T max cog, *Crank, Size: S-M, ProWheel alloy, 165mm length
- Size
- L-XL
ProWheel alloy, 170 mm length
- Chainring
- Alloy, with 40T narrow-wide steel ring, alloy guard
- Cassette
- Shimano CUES LG400, Linkglide, 11-50, 11-speed
- Chain
- Shimano LG500, 9/10/11-speed
- Pedal
- VP-536 nylon platform, Components
- Saddle
- Selle Royal Vivo Moderate Ergo with Royalgel
Seatpost: Suspension dropper post TransX YSP28PLQ, internal cable routing with 100 mm drop, 362 mm long
- Handlebar
- Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
- Grips
- Ergotec EG Active Flex, lock on, flex adjustment
- Stem
- Aluminium, adjustable, 31.8 mm, Blendr-compatible, with display mount
Brake: Magura MT Thirty, 4-piston hydraulic disc, Brake rotor, Magura MDR-C, 203 mm, Accessories
- Light
- Size
- S-M, L-XL
Spanninga Pimento Large, with brake light
- Size
- S-M, L-XL
Supernova Starstream, 500 lumen, LED
- Kickstand
- Pletscher Comp Flex 40
Weight
- Weight
- S-M - 28.50 kg (600 Wh) / 29.40 kg (800 Wh), Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 352 lb (160 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
