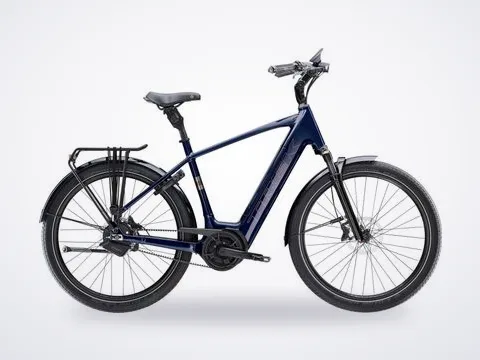

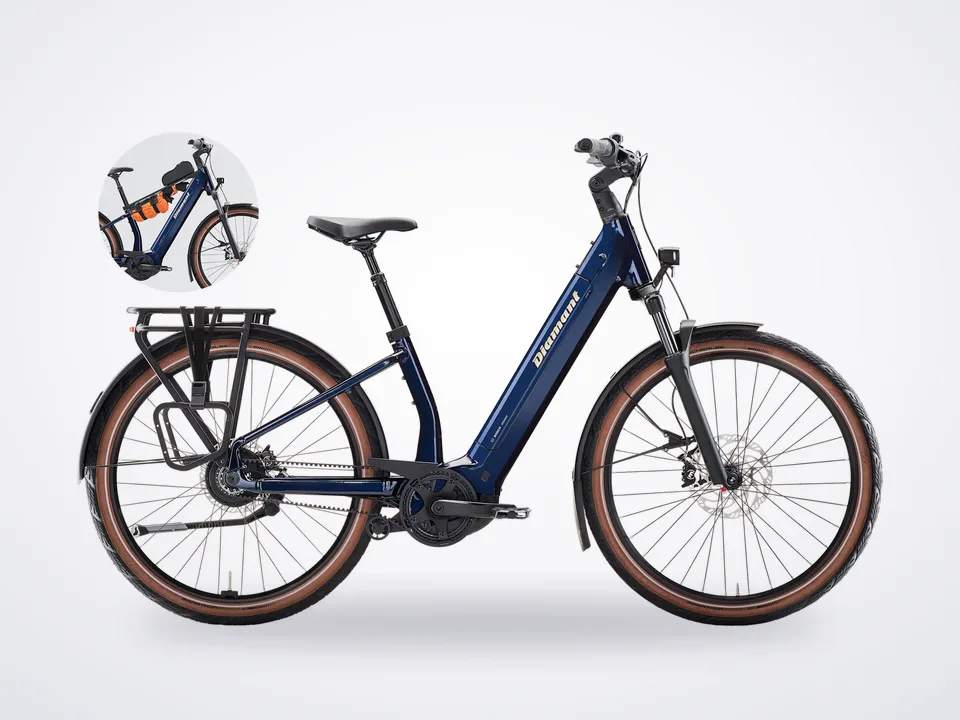

Diamant Suvea Style
In stock at 1 shop in Edinburgh
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Suvea is our answer to the question of the best E-SUV, an e-bike with extra power, a good dose of sporty dynamics, and outstanding competence for everyday mobility. It includes not only unique features like the optional Accessory Bar, the excellent Clever Rack Pro with D-Wings, or the new 3/4 orientation of the battery compartment, but also all the details that make it especially easy to maintain, repair, or upgrade the bike. Overall clever and well thought out: That is Suvea. That is Diamant.
- Please note
- spec applies to all sizes unless listed separately
Show full description and specs
Frame
High-performance hydroformed alloy, Smart Routing for cables, UDH dropout, belt split, ringlock mount
- Fork
- SR Suntour Mobie 34, air spring, lockout, 100 mm travel
Wheels: Hub front, Shimano TC500 alloy, CentreLock, 110x15 mm thru axle, Hub rear, Enviolo Heavy Duty
- Rim
- Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Spokes
- 14 g stainless steel, black
Tyre: Schwalbe Super Moto-X, with reflective stripes, GreenGuard-puncture protection, 62-584, 27.5 x 2.4", E-system
- Battery
- Bosch PowerTube 600
Charger: Bosch standard 4A, 230V, smart system, Controller, Bosch Kiox 500, smart system, Computer
Bosch LED remote, smart system
Motor: Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Drivetrain
- Shifter
- Enviolo Pure Manual Controller twist shift display
- Crank
- ProWheel alloy, 165mm length
- Cassette
- Gates CDX CenterTrack, 24T
- Pedal
- Bontrager City pedals, Components
Saddle: Selle Royal Vivo Moderate Ergo with Royalgel, *Seatpost, Size: S-M, Aluminium with suspension, 300 mm long, with adjustable spring rate
- Size
- L-XL
Aluminium with suspension, 350 mm long, with adjustable spring rate
- Handlebar
- Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
- Grips
- Ergotec EG Active Flex, lock on, flex adjustment
- Stem
- Aluminium, adjustable, 31.8 mm, Blendr-compatible, with display mount
Brake: Magura MT Thirty, 4-piston hydraulic disc, *Brake rotor, Size: S-M, L-XL, Magura MDR-C, 180 mm
- Size
- S-M, L-XL
Accessories
- Light
- Size
- S-M, L-XL
Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight
- Size
- S-M, L-XL
Spanninga Pimento Large, with brake light
- Kickstand
- Pletscher Comp Flex 40
Weight
- Weight
- S-M - 29.20 kg (600 Wh) / 30.10 kg (800 Wh), Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 352 lb (160 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
