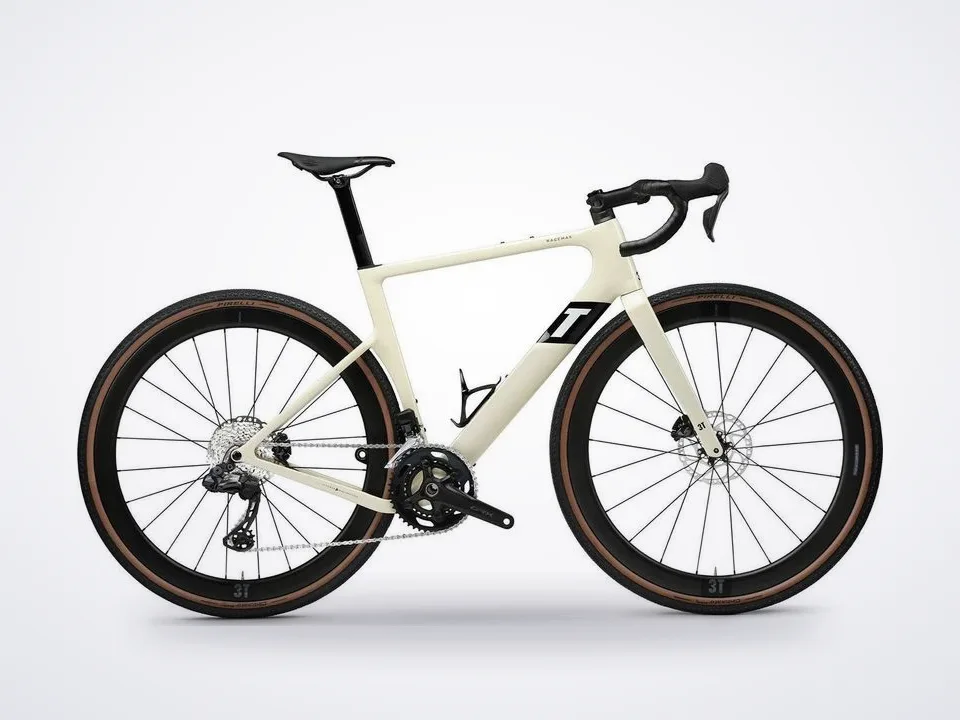

3t RaceMax Integrale Wpnt GRX Di2
In stock at 1 shop in New York City
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 3T RaceMax Integrale WPNT GRX Di2 Bike has been 3T's best-selling gravel bike for four years, and the Integrale update addresses the one thing riders consistently flagged about the original: a top-tube cable routing port that sat directly where you'd want a bag or a computer mount. The new version routes all cables through the 3T Apto Integrale Stealth stem — hydraulic lines, electronic wiring, everything — and the top tube is finally clean. The Integrale system requires an electronic drivetrain because mechanical cables can't route this way, which is why this version pairs with Shimano GRX Di2. The underlying bike is unchanged in its intent: an aerodynamically engineered gravel platform designed around the tires gravel riders actually use, not borrowed road-bike profiles scaled up for wider rubber.
Show full description and specs
3T calls this approach Realfast, and it shows up in several specific decisions. The lower downtube is 75mm wide — shaped to aerodynamically shield both water bottles from airflow, which reduces drag and keeps bottles clean from road spray. The rear wheel cutout fits as closely around the tire as packaging allows to minimize gap-induced turbulence. The headtube is narrow to reduce frontal area while still housing a 1.5-inch steerer for lateral stiffness. Downtube profiles are size-specific, placing water bottles in the aerodynamically optimal position for each frame size rather than using a one-profile-fits-all solution. The double-drop chainstays open tire clearance and crank clearance simultaneously: 700c tires to 46mm WAM on standard wheels, or 650b clearance to 61mm WAM if the terrain calls for something wider. The threaded bottom bracket is a considered choice — better alignment than press-fit, no creaking over time, and straightforward to service.
Shimano GRX RX825 Di2 is the top-tier gravel-specific electronic groupset, and the RaceMax Integrale runs it at both ends — RX825 Di2 rear and front derailleurs with matching levers. The crankset is GRX RX610 with a…
