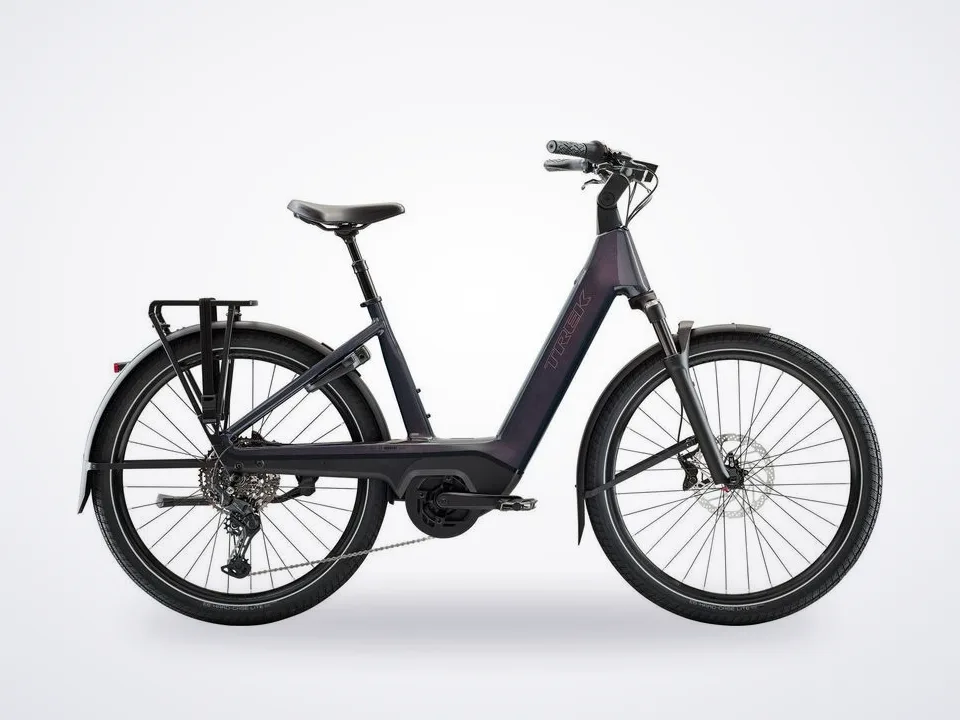

Trek Charter+ 5 R10 800 Wh Lowstep
In stock at 2 shops in Edinburgh
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The Charter+ 5 800 Wh low-step is a versatile city e-bike ready to adapt to how and where you ride. Its adjustable cockpit lets you customise feel from upright and comfortable to a more active position, while an air-sprung 80 mm fork keeps the ride smooth. It comes ready to roll with a 10-speed Shimano CUES drivetrain for smooth shifting performance and a Bosch Performance Line PX motor with a huge 800 Wh battery that lets you explore far out there – and still have plenty of power for the ride back.
Show full description and specs
Technology
Assembled in Germany: Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.
Specification
Frame: Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
- Frame Material
- Aluminium
- Rim Size
- 27.5
- Fork
- SR Suntour
Fork: SR Suntour Mobie 34, tapered steerer tube, air spring, adjustable rebound and compression, lockout, 100mm QR, 80mm travel
- Tires
- Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.4"
- Hub Front
- Shimano TC500, centerlock, 110x15 mm thru axle
- Hub Rear
- Shimano TC500-HM
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Shifter
- Shimano
- Shifters
- Shimano CUES U6000 w/optical gear display, 10 speed
- Derailleur Rear
- Shimano CUES U6000 GS
- Crank
- ProWheel alloy, 170 mm length
- Cassette
- Shimano CUES LG400, Linkglide, 11-48, 10-speed
- Chain
- Shimano LG500, 9/10/11-speed
- Brake
- Shimano
Brakeset: Shimano MT401 / MT420 hydraulic disc, 180 mm rotor // Shimano BR-MT420 hydraulic disc Shimano MT401 / MT420 hydraulic disc, 180mm rotor // Shimano BR-MT420 hydraulic disc
- Brake Rotor
- Shimano RT30, CentreLock, 180 mm // Shimano RT30, CentreLock, 203 mm
- Pedals
- Bontrager City pedals
- Saddle
- Bontrager Commuter Comp
- Seatpost
- Aluminium with suspension, 350 mm long, with adjustable spring rate
- Handlebar
- Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
- Stem
- Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
- Grips
- Trek ergonomic PRO, lock-on
- Fenders
- Trek Charter alloy mudguard
- Kickstand
- Pletscher Comp Flex 40
- Battery
- Bosch PowerTube 800Wh, smart system
- Controller
- Bosch Kiox 500, smart system
Motor: Bosch Smart System PX, 90Nm, 250W, 28 mph / 45 km/h (25 km/h max assist in EU and APAC)
- Size Chart Rider Height
- Rider Height - 170.0 - 185.0
- Size Chart Rider Inseam
- Inseam - 80.0 - 99.0
